Description

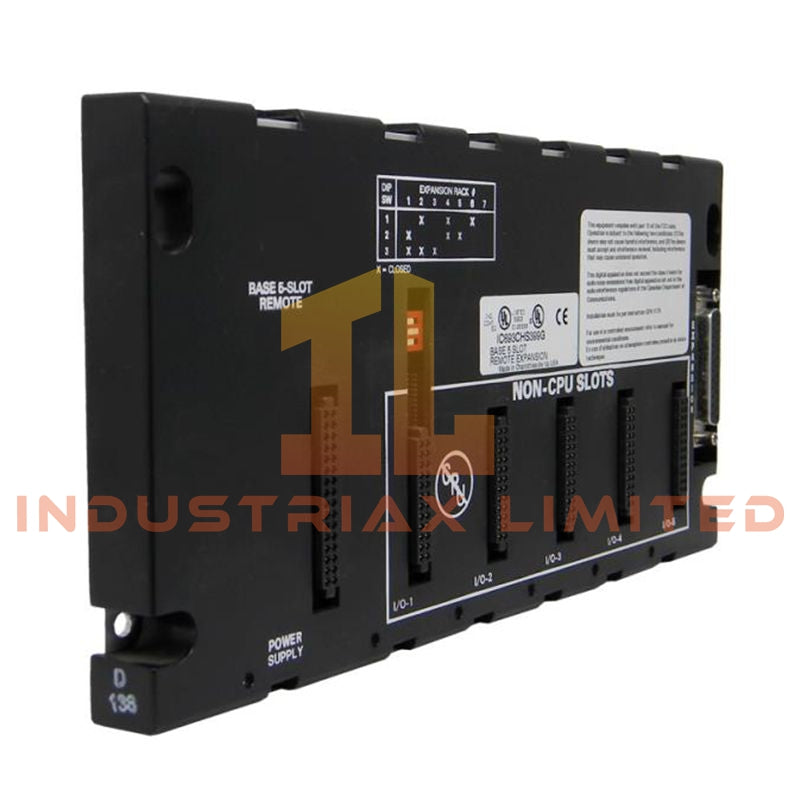

Product Description
The IC693CHS399 is a 5-slot remote baseplate designed for the GE Fanuc Series 90-30 PLC system. It provides modular expansion for distributed control networks, ensuring organized wiring and reliable field operation. This baseplate must be connected to a CPU and cannot function independently.
Technical Specifications
| Specification |
Details |
| Model |
IC693CHS399 |
| Product Type |
Remote Baseplate |
| Series |
Series 90-30 PLC |
| Module Slots |
5 available slots for I/O modules |
| Isolation |
Built-in isolation between +5V logic supply and interface circuits |
| Max Cable Length |
700 feet (213 meters) for daisy-chained baseplates |
| CPU Requirement |
Must be connected to a PLC CPU or compatible interface system |
| Expansion Connector |
25-pin female D-type I/O bus connector |
| Rack Number Selection |
DIP switch configurable |
| Weight |
1.25 lbs |
| Wiring |
Supports structured, organized wiring practices |
Key Features
-
Ensures stable and reliable field operation for distributed I/O.
-
Provides organized wiring to simplify installation and maintenance.
-
Supports efficient system expansion without altering the CPU architecture.
-
Reduces commissioning time with structured signal management.
Applications
Suitable for industrial automation systems requiring remote I/O modules:
-
Manufacturing process control
-
Modular PLC system expansion
-
Distributed signal acquisition and field operation
FAQ
Q: Can the IC693CHS399 operate without a CPU?
A: No, it requires connection to a CPU or compatible interface system.
Q: What is the maximum cable distance for multiple baseplates?
A: Up to 700 feet (213 meters) for daisy-chained baseplates.
Q: How many I/O modules can this baseplate support?
A: It provides 5 slots for Series 90-30 I/O modules.
Q: Are there alternative models for larger expansion?
A: Yes, IC693CHS398 and IC693CHS397 offer 8- and 12-slot configurations respectively.
