Product Overview

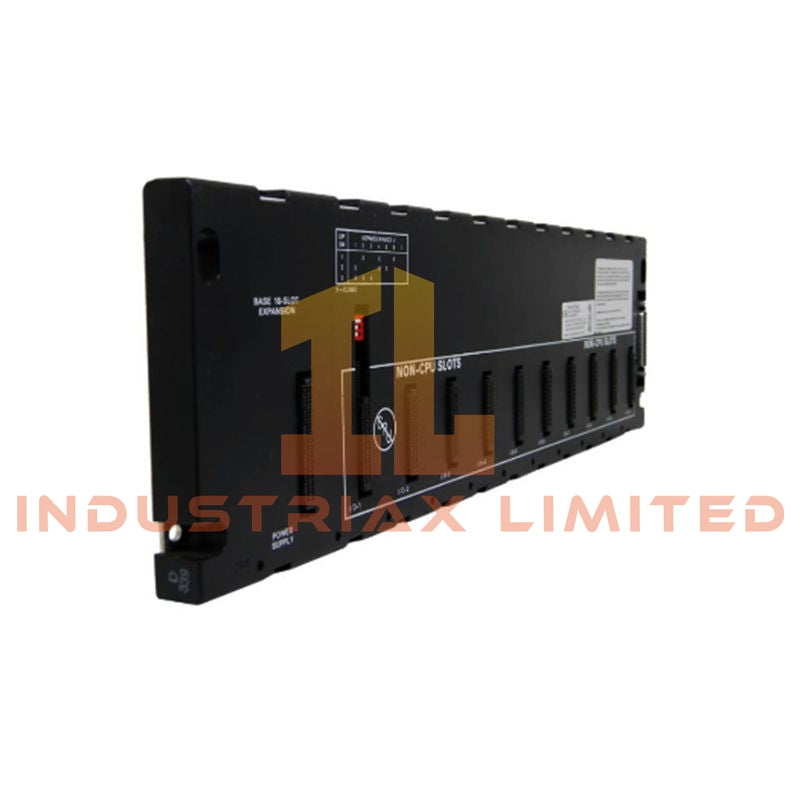

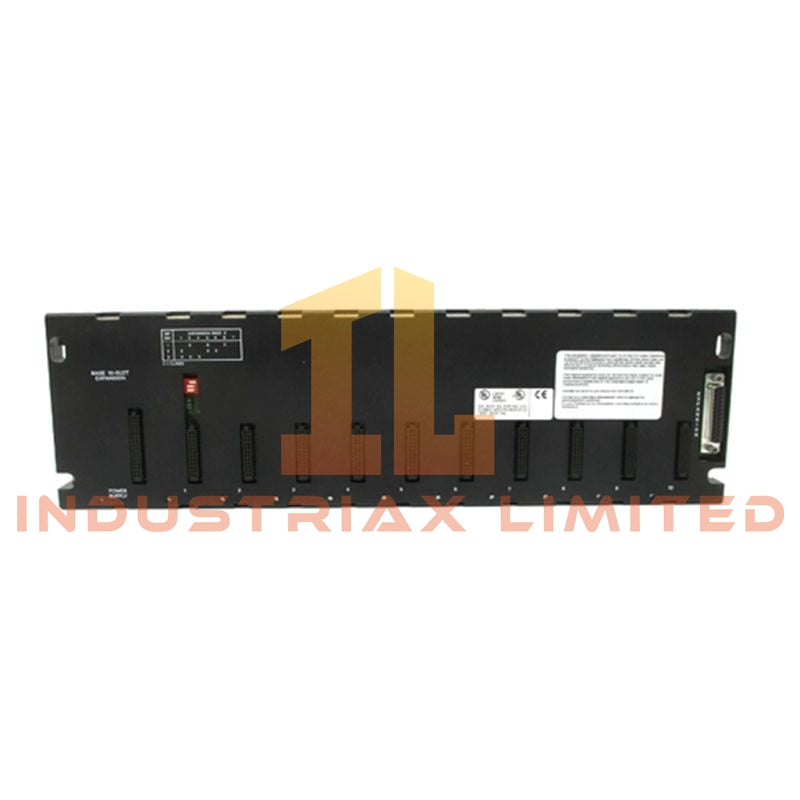

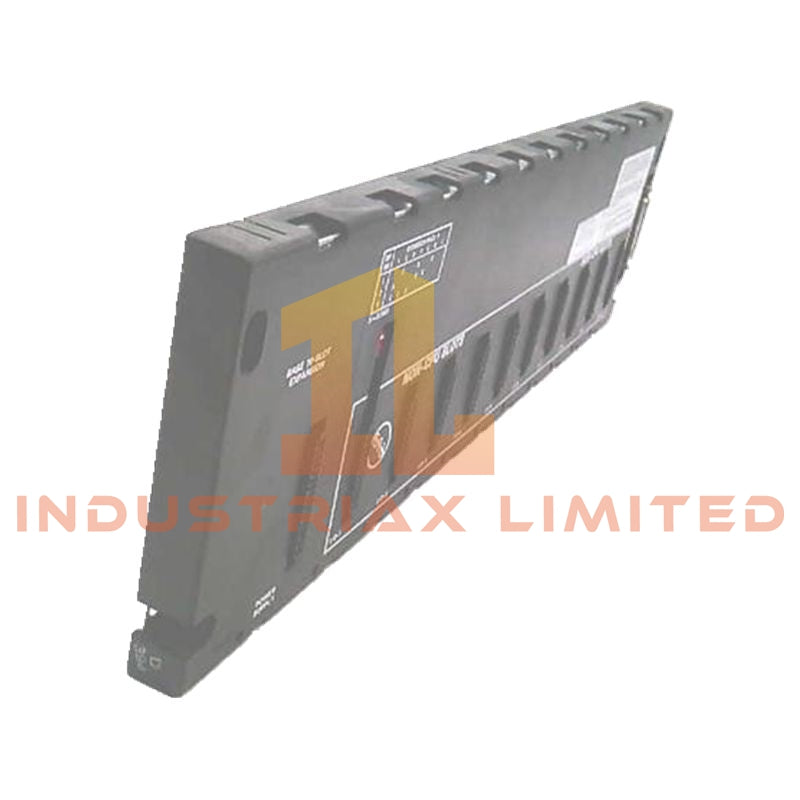

The IC693CHS392 is a 10-slot I/O baseplate designed for the GE Fanuc Series 90-30 PLC system. It provides mechanical support and an embedded electrical backplane for CPU, power supply, and I/O modules. The baseplate allows modular system expansion, ensuring reliable communication and power distribution between installed modules while maintaining a compact footprint.
Technical Specifications
| Feature |
Specification |
| Model |
IC693CHS392 |
| Series |
GE Fanuc Series 90-30 |
| Module Type |
10-Slot I/O Baseplate (Rack) |
| Number of Slots |
10 (for CPU, power supply, and I/O modules) |
| Backplane Type |
Embedded bus for module interconnection |
| Mounting |
Horizontal rack installation |
| Module Compatibility |
Supports Series 90-30 CPUs, power supplies, I/O, and communication modules |
| Dimensions |
17 × 40 × 5 cm |
| Weight |
1.2 kg |
| Construction |
Metal frame with plastic module guides |
| Power Distribution |
Supplied through installed power supply via backplane |
| I/O Bus Connector |
25-pin female D-type expansion connector |
| Manufacturer |
Originally GE Fanuc, now Emerson Automation |
Key Features
-
Modular Expansion: Supports up to 10 modules, enabling flexible PLC system configuration.
-
Integrated Backplane: Ensures reliable electrical connections for communication and power distribution.
-
Robust Build: Industrial-grade metal frame with guided slots for secure module alignment.
-
Quick Installation: Modules slide into position and lock for easy replacement or expansion.
-
Legacy Support: Compatible with all standard Series 90-30 PLC modules.
Applications
-
Manufacturing Automation: Houses PLC modules controlling assembly lines and robotic systems.
-
Process Control: Supports distributed I/O in chemical, pharmaceutical, and food production plants.
-
Utilities: Provides structured expansion for power distribution, water treatment, and HVAC automation.
-
Material Handling: Enables modular configuration for conveyors, warehouse, and logistics systems.
Practical Considerations
-
Limited to 10 slots; larger systems may require multiple baseplates.
-
Only compatible with Series 90-30 PLC modules; not suitable for RX3i or Series 90-70 systems.
-
As legacy hardware, availability may be limited; refurbished units are commonly used.
FAQ
Q: How many modules can this baseplate accommodate?
A: Up to 10 modules including CPU, power supply, and I/O units.
Q: Can I use this rack with RX3i modules?
A: No, it is only compatible with Series 90-30 PLC modules.
Q: What type of I/O bus connector is included?
A: A 25-pin female D-type expansion connector for additional bus connections.
Q: Is the baseplate suitable for industrial environments?
A: Yes, it features a durable metal frame and secure module guides for robust performance.
