Description
Overview
The IC693CBL305 wye connection cable from GE Fanuc is designed for Series 90-30 communications coprocessor modules. It separates a combined serial connector into two distinct ports—Port 1 and Port 2—streamlining installation and improving wiring clarity.

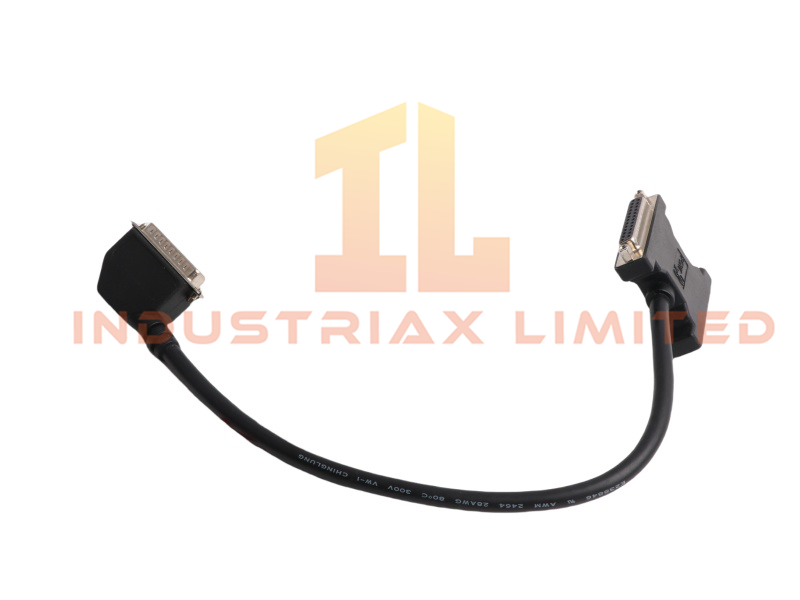

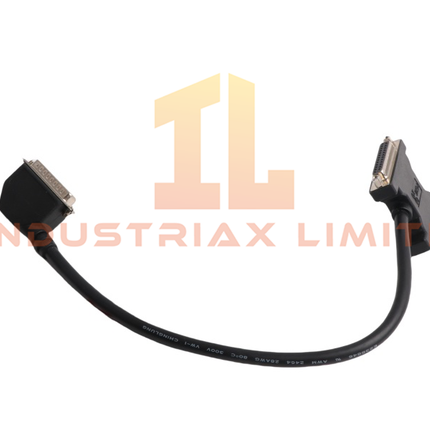

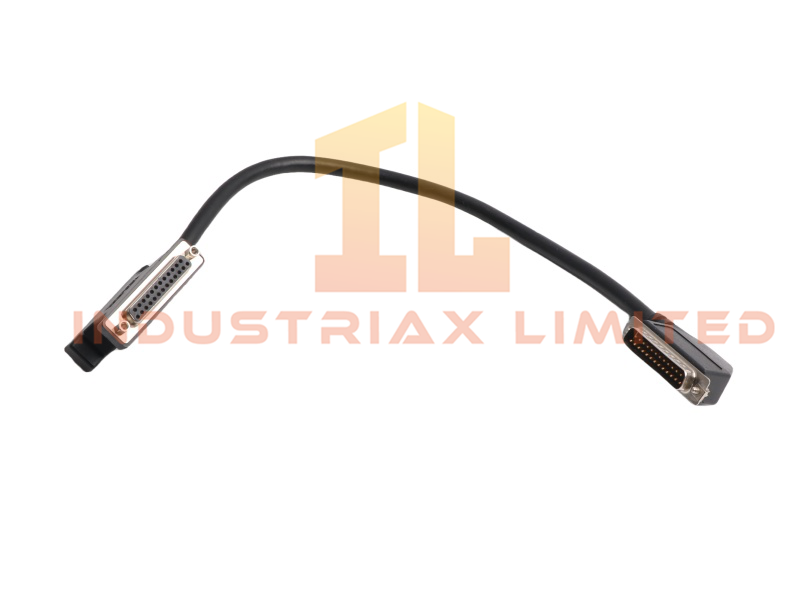

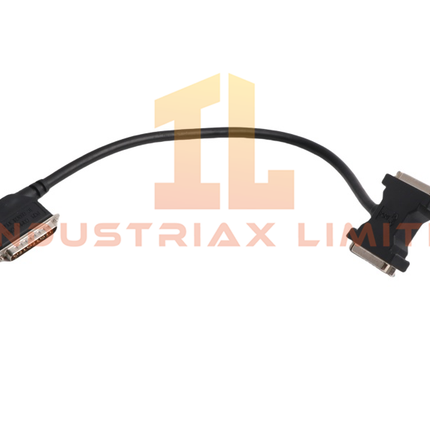

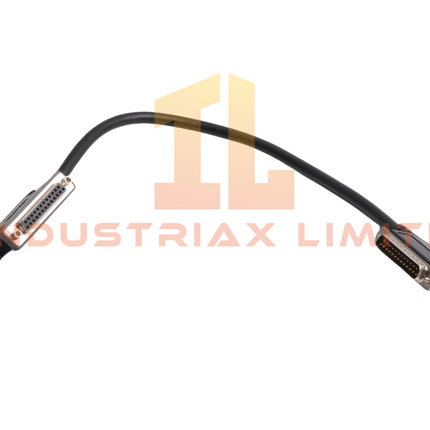

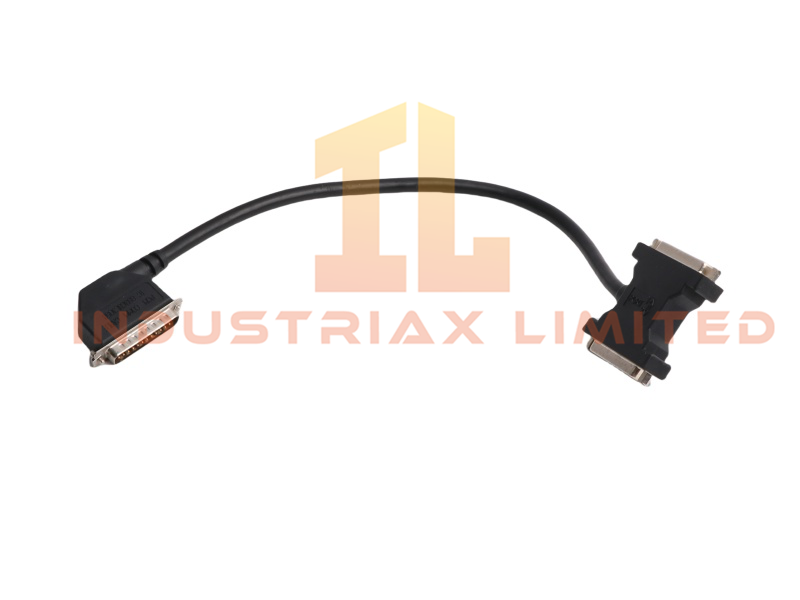

This compact cable measures 45×6.2×1.6cm and weighs just 0.14kg. The IC693CBL305 features a right-angle connector on one end and dual 25-pin connectors on the other, forming a Y-shaped configuration ideal for tight control panel layouts.
Technical Specifications
| Specification |
Details |
| Model Number |
IC693CBL305 |
| Module Type |
Wye Connection Cable |
| Manufacturer |
General Electric (GE) |
| Series |
Series 90-30 |
| System |
PLC |
| Dimensions |
45 × 6.2 × 1.6 cm |
| Weight |
0.14 kg |
| Cable Length |
30.5 cm (1 foot) |
| Connector Type |
Right-angle + Dual 25-pin |
| Port Support |
RS-232 (Port 1), RS-232/RS-485 (Port 2) |
| Compatibility |
CMM and PCM Modules |
| Communication |
Ethernet Router |
| HS Code |
8537101190 |
| Lead Time |
In Stock |
| Minimum Order |
1 Unit |
| Origin |
USA |
| Status |
Active |
Features & Performance
-
The IC693CBL305 simplifies serial port separation for ADC module connections.
-
It supports RS-232 and RS-485 protocols for flexible signal routing.
-
Its compact design fits easily into control cabinets and tight wiring spaces.
-
The cable ensures reliable communication between Series 90-30 coprocessor modules and external devices.
Applications & Compatibility
The IC693CBL305 is ideal for GE Series 90-30 systems requiring dual-port access from a single connector. It supports CMM and PCM modules and enhances RS-232/RS-485 communication setups in industrial automation, process control, and machine integration.
Compatible with GE Fanuc coprocessor modules, the IC693CBL305 improves wiring efficiency and signal clarity in PLC environments.
