Description

Product Description

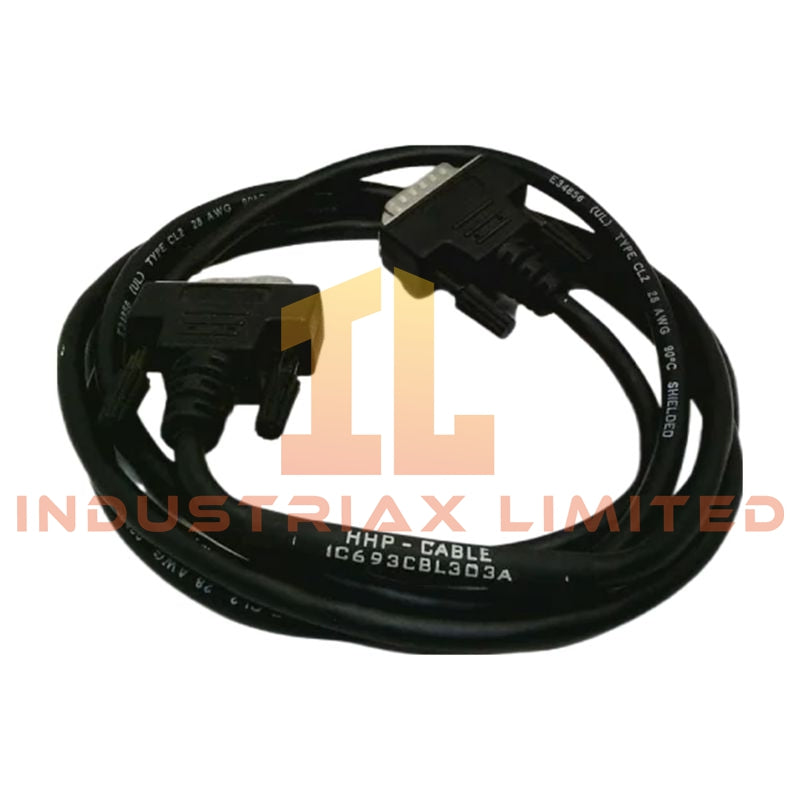

The IC693CBL303 is a dedicated programming and converter cable for the GE Fanuc Series 90‑30 PLC family. It serves as the primary interface between the IC693PRG300 Hand-Held Programmer (HHP) and the PLC’s 15‑pin serial port, providing reliable communication, power delivery, and automatic detection of the programmer.

This cable also facilitates connection between the PLC’s RS‑422/RS‑485 ports and the IC690ACC900 RS‑232 converter, allowing flexible field programming, monitoring, and maintenance. Built with industrial-grade shielding and connectors, it ensures consistent signal integrity in harsh environments.

Key Features

• Directly connects IC693PRG300 HHP to Series 90‑30 PLCs

• Supplies power to the HHP via internal conductors

• Automatically signals the PLC that a programmer is attached

• Supports connection to IC690ACC900 RS‑232 converter

• EMI/RFI-shielded construction for industrial environments

• Plug-and-play with standard 15‑pin D-sub connectors

• Ideal for field programming, diagnostics, and maintenance

Technical Specifications

Cable Construction

• Cable Type: Belden 9508 shielded cable

• Conductor Size: 24 AWG (0.22 mm²), stranded copper

• Shielding: EMI/RFI protection

Connectors

• Connector Type: Canon DA15S (15‑pin male D‑Sub)

• Connector Hood: AMP 207470‑1

• Hardware Kit: AMP 207871‑1 (includes screws and clips)

Electrical & Power

• Voltage Rating: Up to 30 VDC

• Current Capacity: 1 A per conductor

• Power to HHP: Yes (via cable)

Physical & Mechanical

• Cable Length: 6 ft (2 m)

• Weight: 0.96 lbs

• Color: Gray

• Country of Origin: USA

Environmental Ratings

• Operating Temperature: 0°C to 60°C

• Humidity: 5–95% non-condensing

Applications

• Field programming of Series 90‑30 PLCs

• HHP-to-PLC communication

• Connecting PLC RS‑422/RS‑485 ports to RS‑232 converters

• Industrial automation maintenance and diagnostics

FAQ

Q: Does this cable supply power to the Hand-Held Programmer?
A: Yes, the IC693CBL303 provides power to the IC693PRG300 HHP through its internal conductors.

Q: Can it connect the PLC to an RS‑232 converter?
A: Yes, it supports RS‑422/RS‑485 to RS‑232 conversion with the IC690ACC900.

Q: Is it suitable for harsh industrial environments?
A: Yes, it uses EMI/RFI-shielded construction and robust D-sub connectors for reliable field use.

Specifications

• Brand: General Electric

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
