Description

Product Description

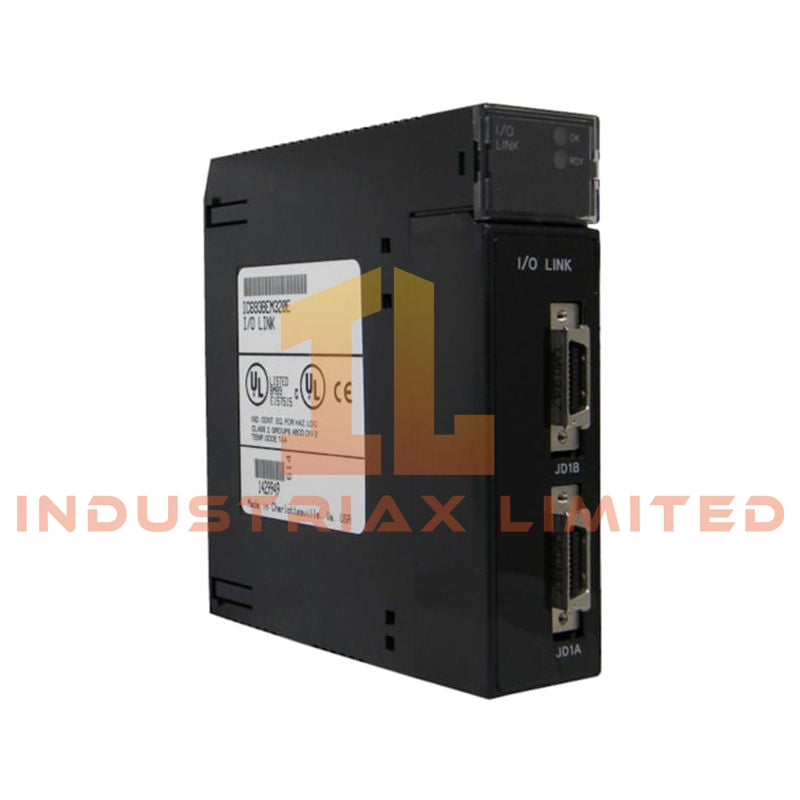

The IC693BEM320 is a dedicated I/O LINK Interface Module (Slave) for the GE Fanuc Series 90‑30 PLC family. Designed for high-speed serial communication, it connects a Series 90‑30 PLC to a Fanuc I/O LINK master, commonly found in Fanuc CNC systems or Series 90‑70 PLCs. The module functions strictly as a slave, enabling deterministic I/O exchange for critical automation tasks.

Configuration is straightforward, with an internal jumper allowing selection between 32-point or 64-point I/O operation. Multiple IC693BEM320 modules can operate on the same network (up to 16 slaves per master), making it ideal for distributed control and CNC integration.

Key Features

• Slave-only I/O LINK interface for high-speed serial communication

• Jumper-selectable I/O capacity: 32 or 64 points

• Supports up to 16 slave devices per I/O LINK master

• Dual communication ports: RS‑485 and RS‑422

• Front-panel LED indicators for module status (OK) and readiness (RDY)

• Backplane-powered (5 VDC), occupies a single slot

• Compact design: 64 × 127 × 102 mm, weight approx. 0.31 kg

Technical Specifications

Functional Overview

• Function: I/O LINK serial interface (slave)

• Supported PLCs: GE Fanuc Series 90‑30, Series 90‑70

• Network: Fanuc proprietary I/O LINK

• Max Slaves: 16 per network (1 master + up to 16 slaves)

Communication

• Ports: 2

• Port Types: RS‑485, RS‑422

• Purpose: High-speed data exchange with I/O LINK master

Indicators

• LEDs: OK (powered/functioning), RDY (module ready/active)

Electrical

• Power Supply: 5 VDC from PLC backplane

• Backplane Slots Required: 1

Mechanical

• Dimensions: 64 × 127 × 102 mm (alternate: 11.2 × 6.5 × 11 cm)

• Weight: 0.64 lbs

• Origin: USA

Environmental

• Operating Temperature: 0°C to 60°C (32°F to 140°F)

• Humidity: 5–95% non-condensing

• Recommended: Climate-controlled enclosure for harsh environments

Applications

• Fanuc CNC system integration with Series 90‑30 PLC

• Distributed I/O systems requiring fast and reliable communication

• PLC-to-CNC deterministic I/O exchange

• Industrial automation projects demanding high-speed serial interface

FAQ

Q: Can the IC693BEM320 operate as a master module?
A: No, this module functions strictly as a slave device.

Q: How do I select the I/O capacity?
A: Use the internal jumper to choose either 32-point or 64-point operation.

Q: How many IC693BEM320 modules can I use on one network?
A: Up to 16 slave modules can be connected to a single I/O LINK master.

Q: Which PLCs are compatible with this module?
A: Series 90‑30 and Series 90‑70 GE Fanuc PLCs.

Specifications

• Brand: General Electric

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
