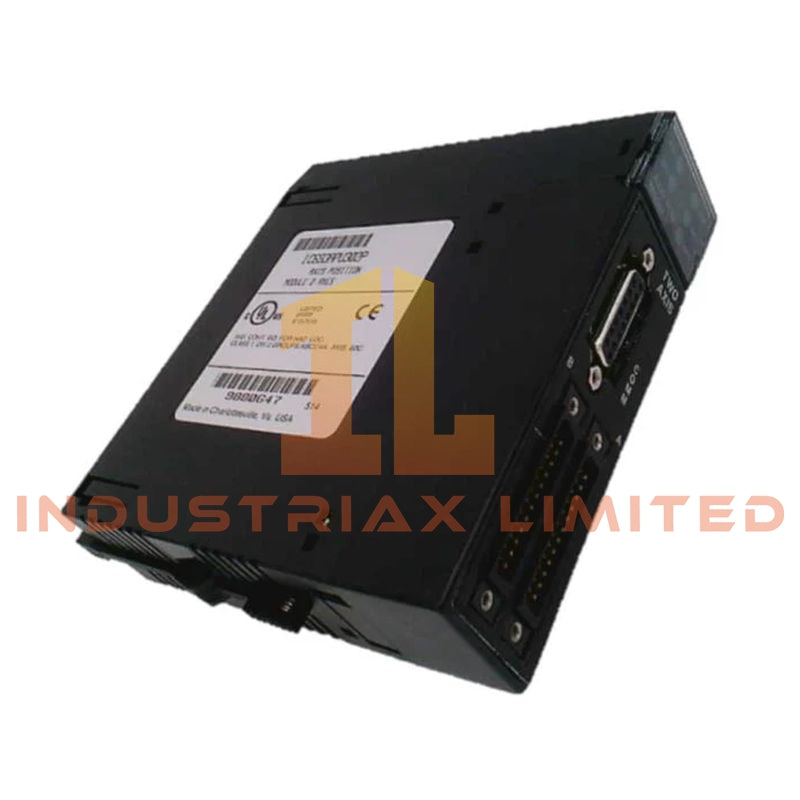

Product Description

The IC693APU305 is a high-performance I/O processor module designed for GE Fanuc Series 90‑30 PLCs, providing independent, fast I/O processing for demanding industrial applications. With a dedicated processor onboard, this module offloads high-speed input/output operations from the main CPU, delivering deterministic timing for pulse counting, motion control, event capture, and synchronized processes.

This module enables rapid response control without waiting for the CPU scan cycle, making it ideal for packaging, labeling, material handling, and high-frequency monitoring tasks.

Key Features

• Dedicated I/O processor for independent input/output logic execution

• High-speed digital input and output processing with microsecond-level refresh

• 32-bit total counts register for pulse and event tracking

• Configurable outputs with fuse protection and positive logic signaling

• Six green LEDs for module, output, and configuration status

• Optically and galvanically isolated I/O for noise and surge immunity

• Compact design compatible with any Series 90‑30 baseplate slot

• Compatible with Logicmaster 90‑30, VersaPro, and HHP programming

Technical Specifications

Electrical & Input/Output

• Digital Inputs: 12 channels

• Input Voltage: 5 VDC TTL or 10–30 VDC industrial signals

• Input Type: Positive logic, high-speed pulse compatible

• Input Frequency: 50–60 Hz (AC-type signals)

• Digital Outputs: 8 channels

• Output Current: 4 outputs @ 1 A, 4 outputs @ 0.5 A (configurable)

• Output Type: Positive logic, fuse-protected

• Power Supply: 5 VDC via PLC backplane

Performance & Processing

• Update Speed: 500 microseconds

• Total Counts Register: 32-bit

• Pulse Length & Interval Measurement: Millisecond resolution

• Data Registers: 4 pass-through registers

• CPU Communication: 32 discrete inputs (%I), 32 discrete outputs (%Q), 15 analog input words (%AI), 6 analog output words (%AQ)

Mechanical & Environmental

• Dimensions: 64 × 127 × 102 mm (alternate: 10.25 × 8.2 × 8 cm)

• Weight: 0.8 lbs

• Operating Temperature: 0–60 °C (32–140 °F)

• Humidity: Up to 95% non-condensing

• Isolation: Optical and galvanic protection

Indicators

• Six LED indicators for module status, output status, and configuration confirmation

Typical Applications

• High-speed motion control

• Pulse counting and frequency measurement

• Event capture and process synchronization

• Packaging, labeling, and marking systems

• Bulk material handling and processing

FAQ

Q: Can the IC693APU305 handle independent logic without CPU intervention?
A: Yes, it has an onboard processor that executes user-defined logic directly on the module.

Q: What input voltage types are supported?
A: Supports 5 V TTL and 10–30 V industrial signals, both positive logic.

Q: Is the module protected against electrical noise?
A: Yes, I/O channels are optically and galvanically isolated.

Q: How is the module configured?
A: Using Logicmaster 90‑30, VersaPro, or a Hand-Held Programmer; no DIP switches needed.

Specifications

• Brand: General Electric

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
