Description
Product Overview

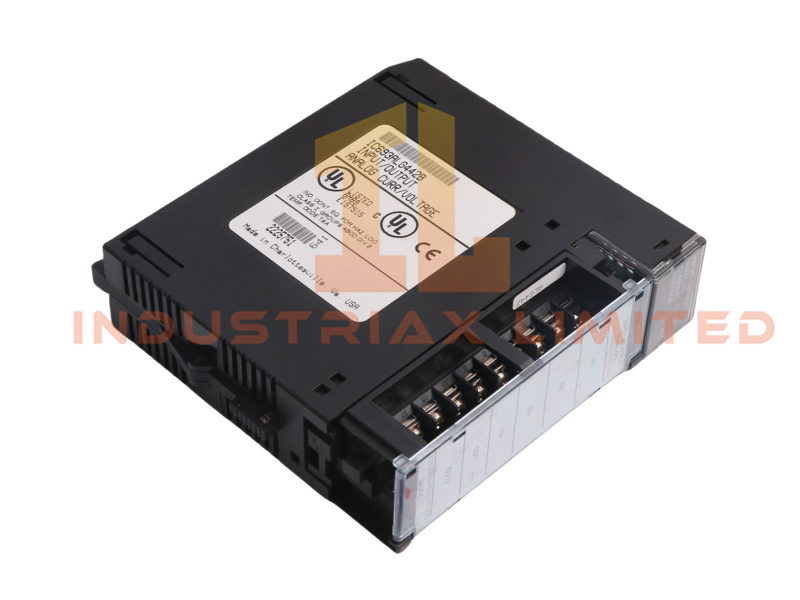

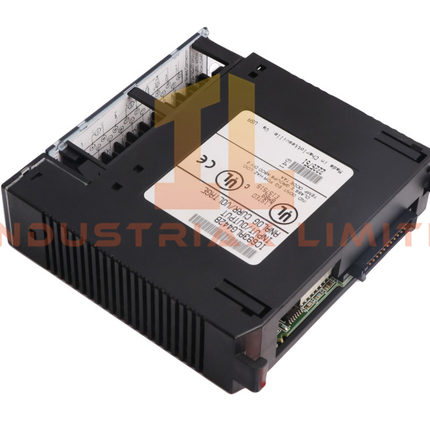

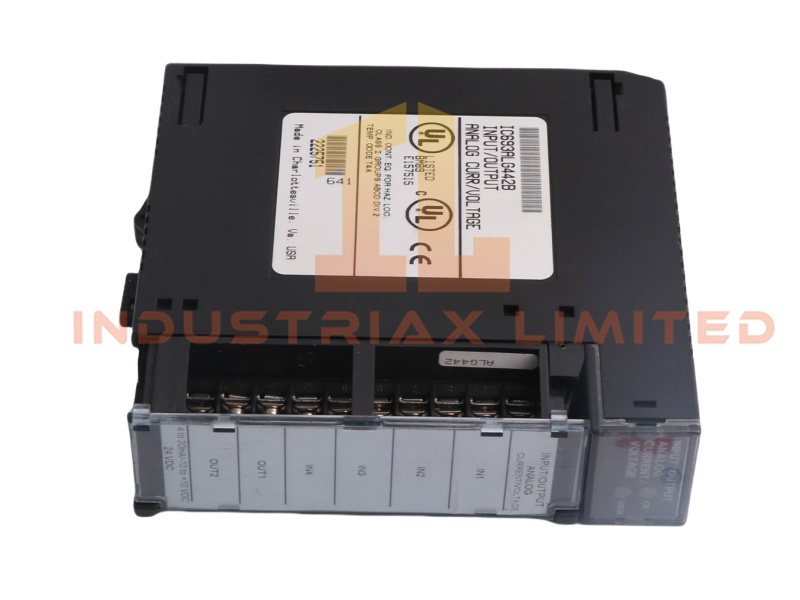

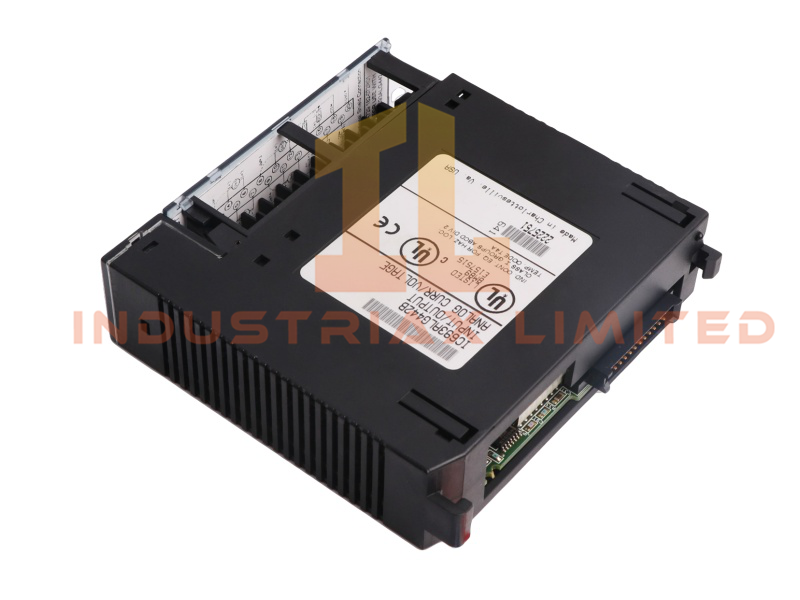

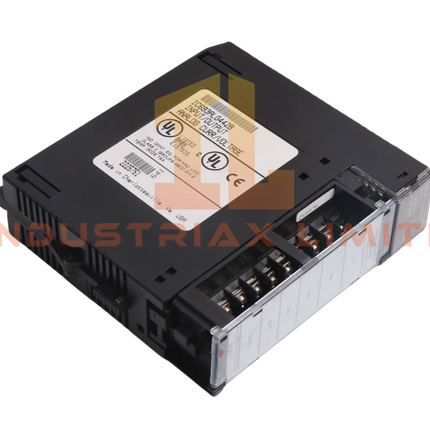

The General Electric IC693ALG442 belongs to the Fanuc 90-30 PLC series and functions as a versatile analog current/voltage combination module. Engineers use this device to manage both input and output signals, ensuring precise data acquisition and reliable control. Its compact design, measuring 3.6 × 13 × 13.5 cm and weighing 0.2 kg, supports efficient installation in industrial automation systems.
Technical Specifications
| Parameter |
Specification |
| Model Number |
IC693ALG442 |
| Module Type |
Analog Current/Voltage Combination |
| Manufacturer |
GE Fanuc |
| Series |
90-30 PLC |
| System |
PLC |
| Dimensions |
3.6 × 13 × 13.5 cm |
| Weight |
0.2 kg |
| HS Code |
8537101190 |
| Condition |
Brand New |
| Origin |
USA |
| Lead Time |
In Stock |
| MOQ |
1 |
| Status |
Active |
| Communication Service |
Ethernet router |
| Input Channels |
4 differential inputs |
| Output Channels |
2 single-ended outputs |
| Voltage Input Range |
0–10 VDC (unipolar), ±10 VDC (bipolar) |
| Current Input Range |
0–20 mA, 4–20 mA |
| Input Resolution |
5 µA |
| Output Resolution |
0.625 µA / 0.5 µA |
| Input Accuracy |
±0.25% at 25°C |
| Output Accuracy |
±0.1% typical, ±0.25% max |
| Update Rate |
8 ms inputs, 4 ms outputs |
| Supply Voltage |
20–30 VDC (nominal 24 VDC) |
| Power Consumption |
95 mA at +5 VDC, 129 mA external |
| Connector |
20-terminal block |
| Fault Detection |
Overload, open-wire, system status |
Functional Highlights
The GE Fanuc IC693ALG442 integrates four differential input channels and two single-ended output channels, supporting both current and voltage signals. Engineers rely on its fast update rates and high resolution to ensure accurate signal processing.
This module provides fault detection in current mode, including overload and open-wire monitoring. A 20-terminal connector block simplifies field wiring, while automatic scaling adjusts out-of-range values to valid limits before conversion.
