Description
Product Overview

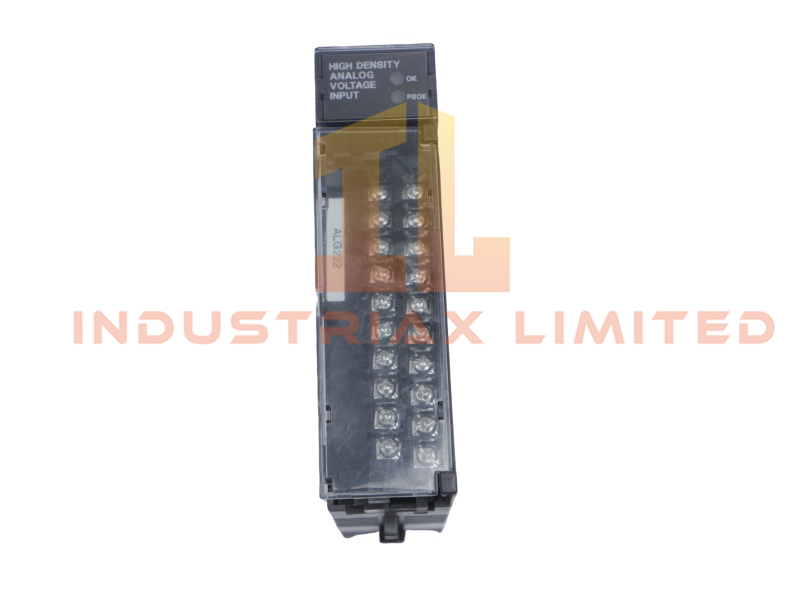

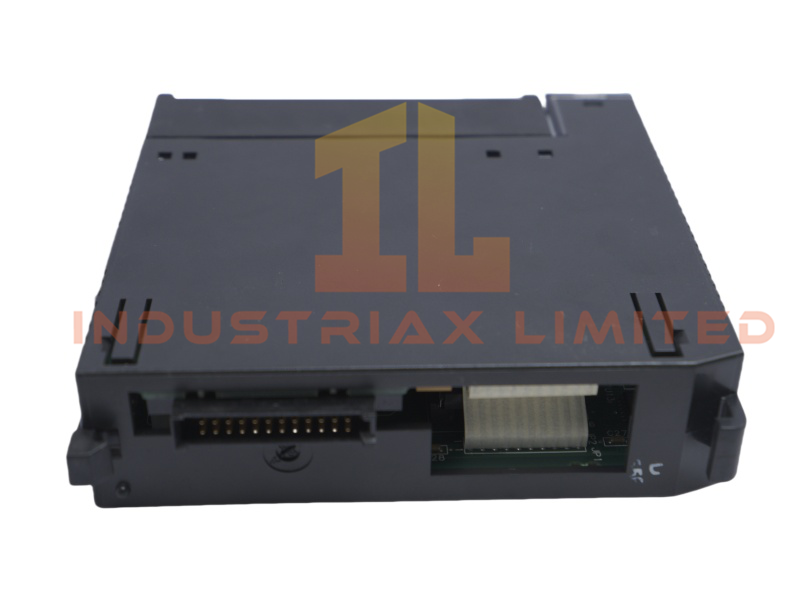

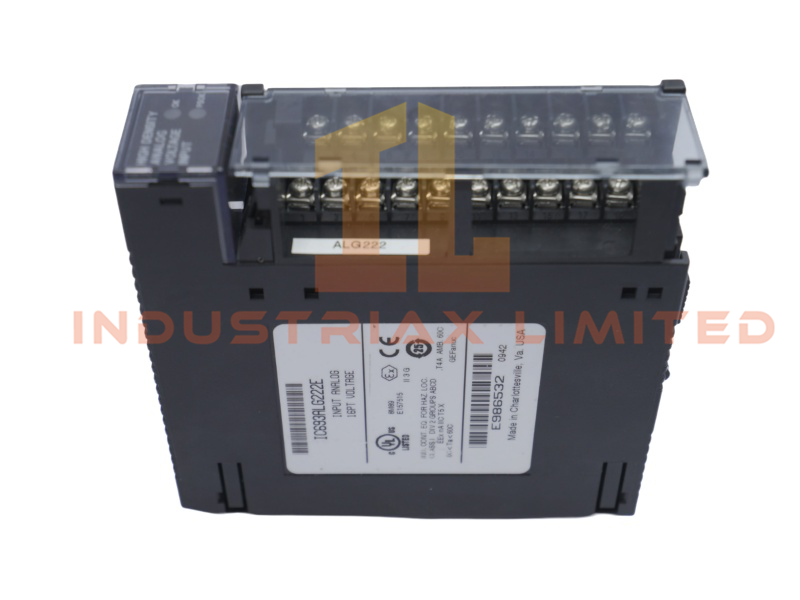

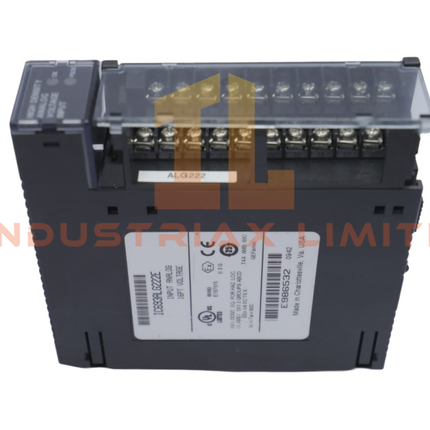

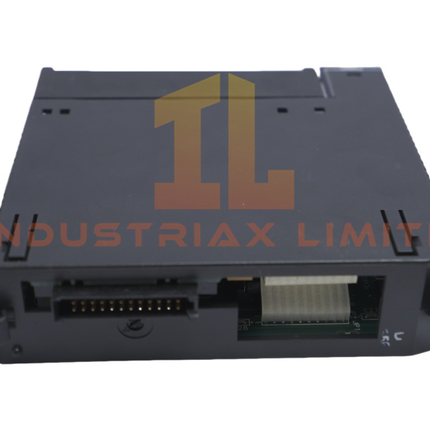

The General Electric IC693ALG222 belongs to the Fanuc 90-30 PLC series and functions as a high-performance analog voltage input module. Engineers use this device to acquire precise voltage signals in automation systems. Its compact design, measuring 3.6 × 13 × 13.5 cm and weighing 0.36 kg, ensures efficient installation and reliable operation in industrial environments.
Technical Specifications
| Parameter |
Specification |
| Model Number |
IC693ALG222 |
| Module Type |
Analog Voltage Input Module |
| Manufacturer |
GE Fanuc |
| Series |
90-30 PLC |
| System |
PLC |
| Dimensions |
3.6 × 13 × 13.5 cm |
| Weight |
0.36 kg |
| HS Code |
8537101190 |
| Condition |
Brand New |
| Origin |
USA |
| Lead Time |
In Stock |
| MOQ |
1 |
| Status |
Active |
| Communication Service |
Ethernet router |
| Channels |
16 single-ended or 8 differential |
| Voltage Range |
0–10 VDC (unipolar), ±10 VDC (bipolar) |
| Resolution |
2.5 mV/LSB (0–10 VDC), 5 mV/LSB (±10 VDC) |
| Accuracy |
±0.25% at 25°C, ±0.5% full range |
| Update Rate |
6 ms single-ended, 3 ms differential |
| Power Consumption |
112 mA at +5 VDC, 41 mA at +24 VDC |
| Indicators |
Two green LEDs (module, power status) |
| Baseplate Support |
5-slot or 12-slot |
Functional Highlights
The GE Fanuc IC693ALG222 supports both unipolar and bipolar voltage signals, offering flexibility for diverse applications. Engineers configure each channel individually, ensuring adaptability to system requirements. Its fast update rates and high resolution guarantee accurate data acquisition.
Two green LEDs provide clear status indication, while efficient power consumption ensures stable operation. The IC693ALG222 integrates seamlessly into 90-30 PLC baseplates, supporting scalable automation systems.
Applications and Compatibility
The General Electric IC693ALG222 is widely deployed in manufacturing, energy, and process industries requiring precise analog voltage input. Operators use this module to connect sensors, actuators, and monitoring devices directly to PLC systems.
Its compatibility with GE Fanuc 90-30 PLCs ensures smooth integration, while its accuracy and reliability make it a trusted solution for long-term industrial automation. The IC693ALG222 remains essential for engineers seeking dependable voltage input management.
