Product Description

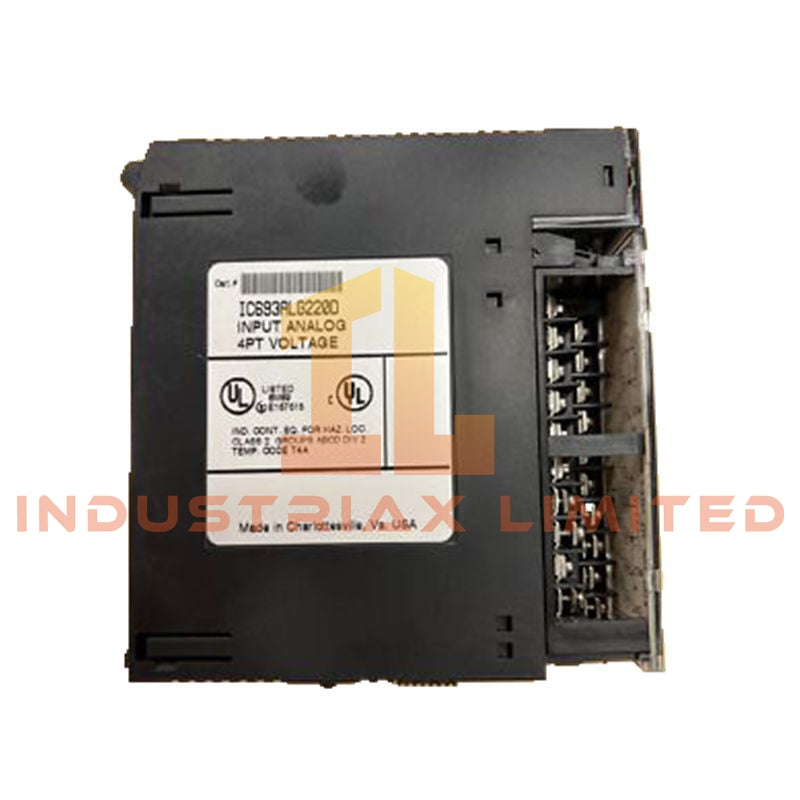

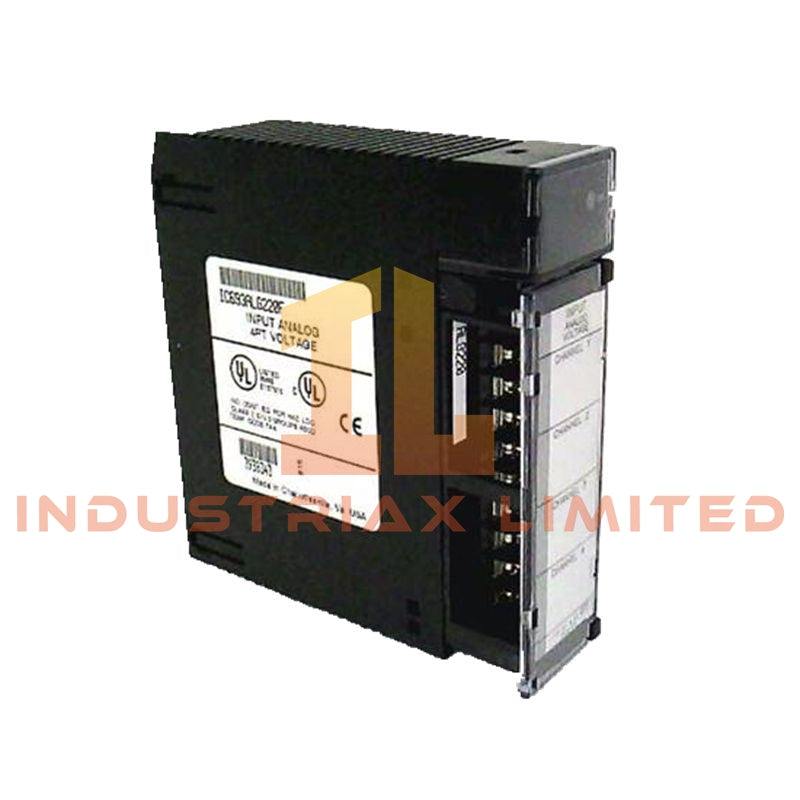

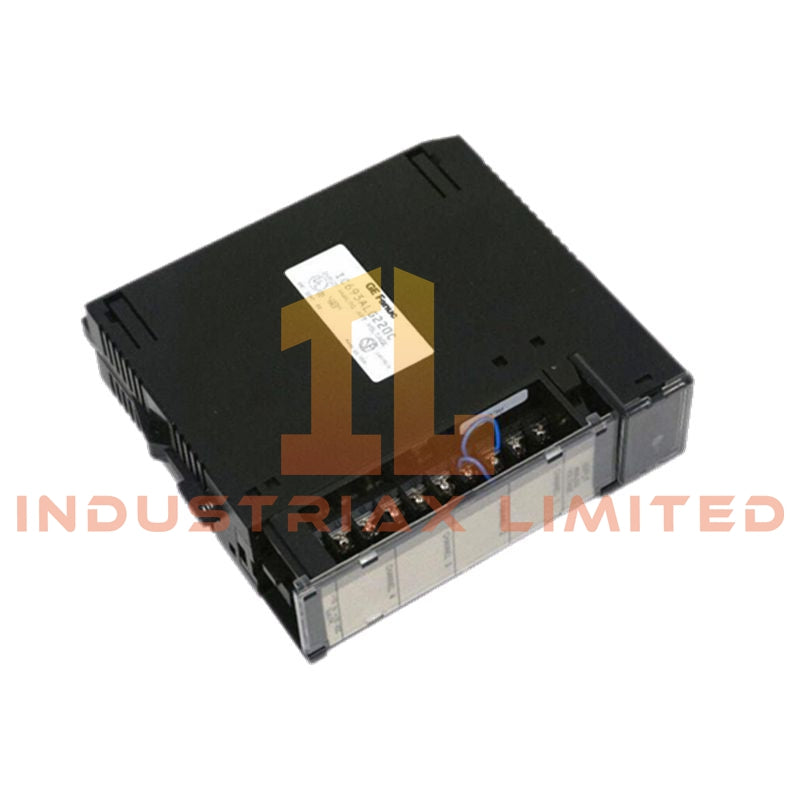

The IC693ALG220 is a four-channel analog input module developed for the GE Fanuc Series 90-30 PLC platform. It is engineered to acquire and convert analog signals from field instruments such as transmitters, sensors, and control devices into digital values for processing within the PLC system.
This module supports bipolar voltage inputs in the range of -10 to +10 VDC, making it suitable for applications requiring precise measurement of dynamic analog signals. With 12-bit resolution and stable conversion performance, it ensures consistent data acquisition in process control environments.
The IC693ALG220 incorporates channel-to-ground isolation and high noise rejection capability, which enhances signal integrity in electrically noisy industrial settings. Its fast 4 ms update rate allows near real-time monitoring, while factory calibration minimizes the need for manual adjustments during commissioning.
Technical Specifications
| Feature |
Specification |
| Model |
IC693ALG220 |
| Manufacturer |
GE Fanuc / Emerson |
| Series |
Series 90-30 |
| Module Type |
Analog Input Module |
| Number of Channels |
4 differential inputs |
| Input Range |
-10 to +10 VDC |
| Resolution |
12-bit (1 LSB = 5 mV) |
| Accuracy |
Typical ±10 mV, maximum ±30 mV |
| Update Time |
4 ms per scan |
| Input Filter |
17 Hz |
| Isolation |
1500 VAC channel-to-ground |
| Linearity |
< 1 LSB |
| Cross-Channel Rejection |
> 80 dB |
| Power Consumption |
27 mA @ 5 VDC, 98 mA @ 24 VDC |
| Calibration |
Factory calibrated |
| Mounting |
Series 90-30 baseplate I/O slot |
| Operating Temperature |
0°C to +60°C |
| Weight |
0.75 lbs |
Key Features & Benefits
Multi-Channel Acquisition: Four independent inputs enable efficient signal monitoring within a single module.
Stable Measurement Performance: 12-bit conversion ensures reliable analog signal representation.
Noise Resistance: High isolation and >80 dB rejection improve performance in harsh environments.
Fast Response: 4 ms update rate supports time-sensitive process applications.
Minimal Maintenance: Factory calibration reduces setup complexity and long-term drift concerns.
Applications
-
Process instrumentation signal acquisition
-
Monitoring of pressure, flow, and temperature transmitters
-
Voltage-based measurement systems in manufacturing lines
-
Industrial control systems requiring stable analog input processing
FAQ
Q: Does the IC693ALG220 support current inputs (4–20 mA)?
A: This model is primarily designed for voltage inputs (-10 to +10 VDC). External signal conditioning is required for current signals.
Q: How accurate is the module in real applications?
A: Typical accuracy is ±10 mV, with a maximum deviation of ±30 mV depending on operating conditions.
Q: Is recalibration required after installation?
A: No, the module is factory calibrated and generally does not require field calibration.
Q: Can it be used with other GE PLC series?
A: It is specifically designed for Series 90-30 systems and is not directly compatible with 90-70 or RX3i platforms.
