Description
Description

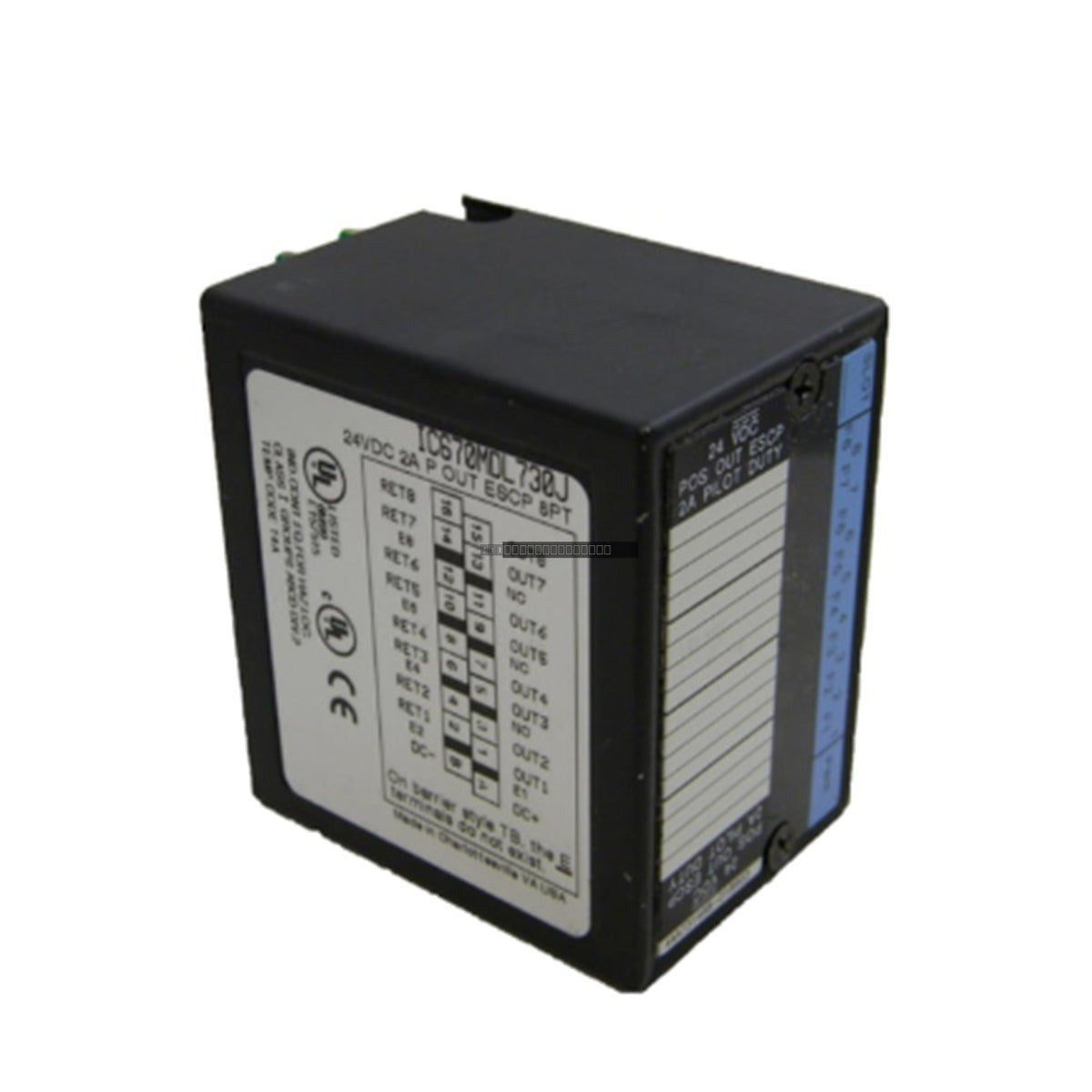

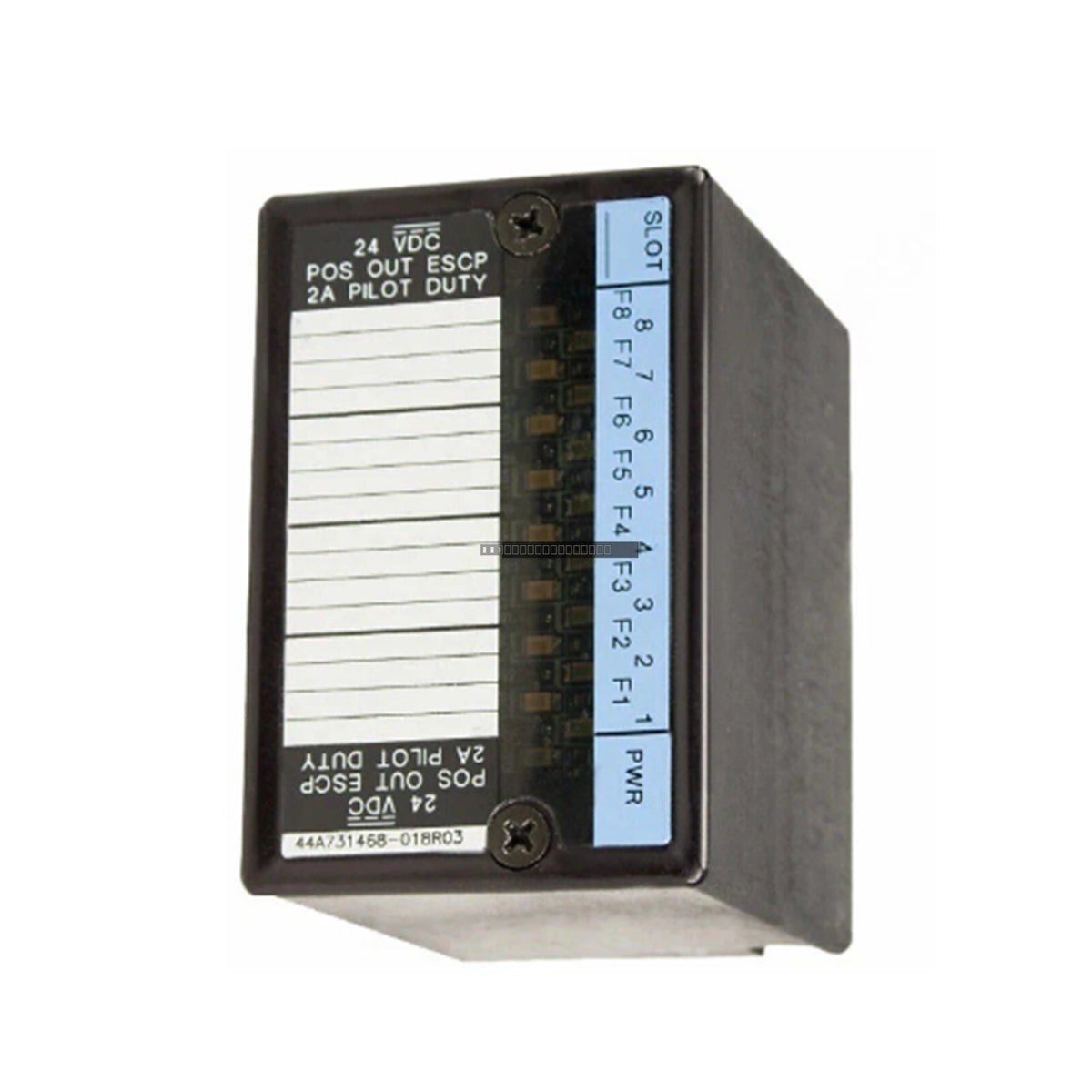

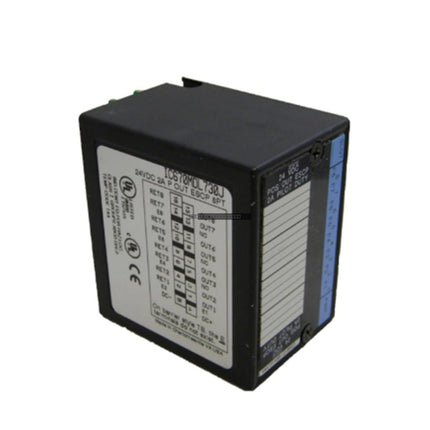

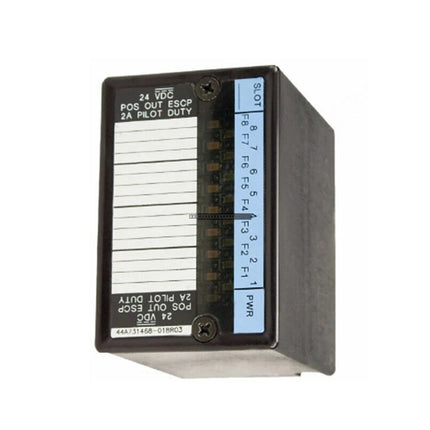

The GE Fanuc IC670MDL730 is a high-performance discrete output module designed for the Field Control series. This module provides 8 discrete output channels, facilitating reliable control of field devices within industrial automation systems. It is engineered to operate within a nominal 24V DC environment, ensuring compatibility with standard industrial control architectures.
Features
- 8 discrete output channels for versatile control applications.
- Designed for the Field Control I/O system architecture.
- Supports a wide operating voltage range of 17.5V DC to 29.5V DC.
- Integrated LED status indicators for simplified troubleshooting and diagnostics.
- Robust short-circuit protection capable of handling 20 Amps for 100 microseconds.
Technical Specifications
| Model |
IC670MDL730 |
| Manufacturer |
General Electric (GE Fanuc) |
| Series |
Field Control |
| Number of Outputs |
8 |
| Output Voltage Range |
17.5-29.5 Volts DC |
| Nominal Voltage |
24 Volts DC |
| Current Consumption |
125 mA |
| Isolation |
None (Group to Group) |
| Short Circuit Response |
20 Amps for 100 microseconds |
Installation Guidelines
- Ensure the power supply is disconnected before installing or removing the module from the Field Control station.
- Mount the module securely onto the designated I/O base to ensure proper electrical connection to the backplane.
- Verify that the field wiring is correctly terminated according to the module's pinout configuration.
- Maintain proper clearance around the module to allow for adequate airflow and heat dissipation.
- Follow standard ESD (Electrostatic Discharge) precautions when handling the module to prevent damage to internal circuitry.
- Route signal cables away from high-voltage power lines to minimize electromagnetic interference (EMI).
FAQ
What is the primary function of the IC670MDL730?
The IC670MDL730 is a discrete output module used to interface a controller with field-level devices, providing 8 channels of DC output control.
What is the nominal operating voltage for this module?
The module is designed for a nominal 24V DC input, with an operational range between 17.5V and 29.5V DC.
Does this module provide isolation between output groups?
No, the IC670MDL730 does not feature group-to-group isolation.
