Description

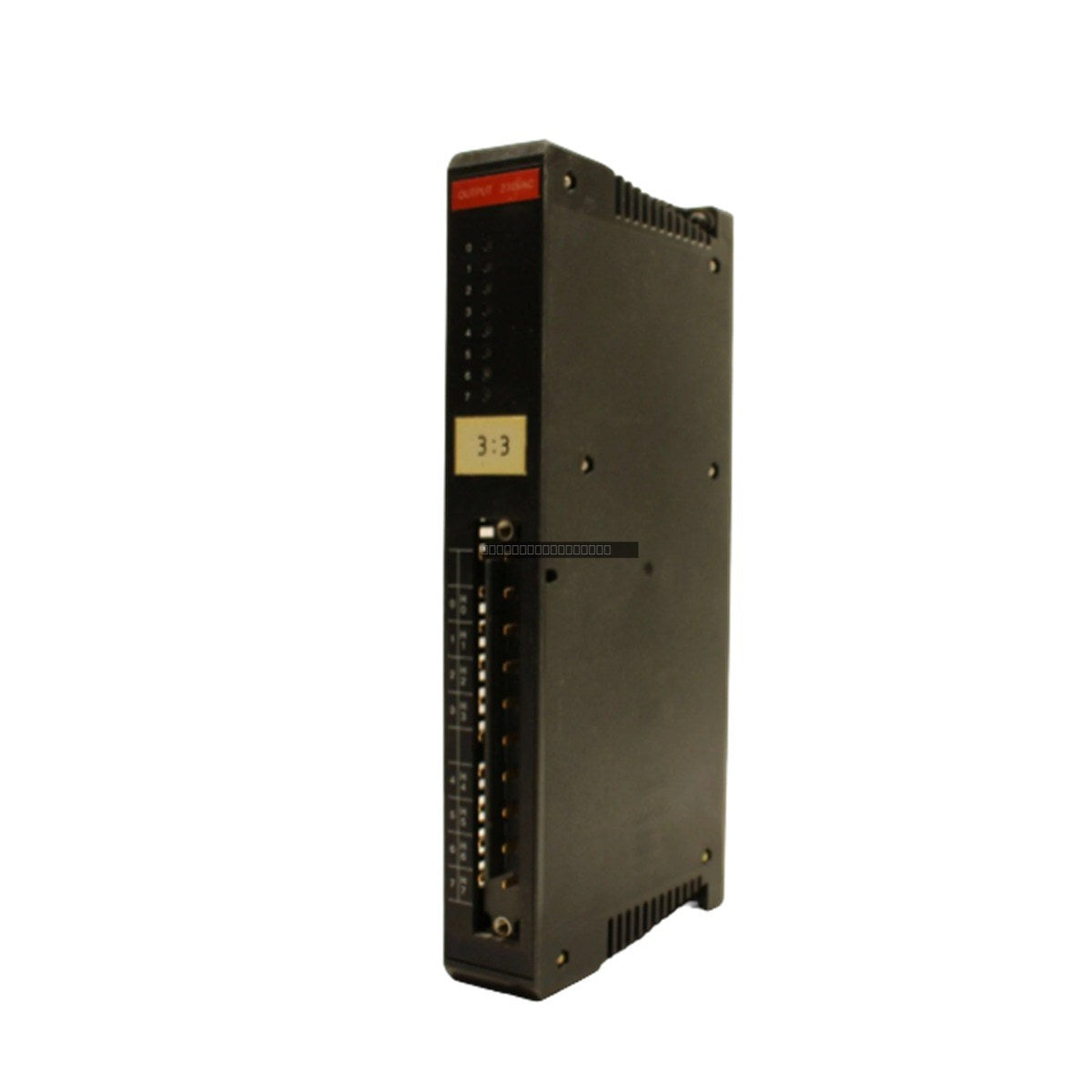

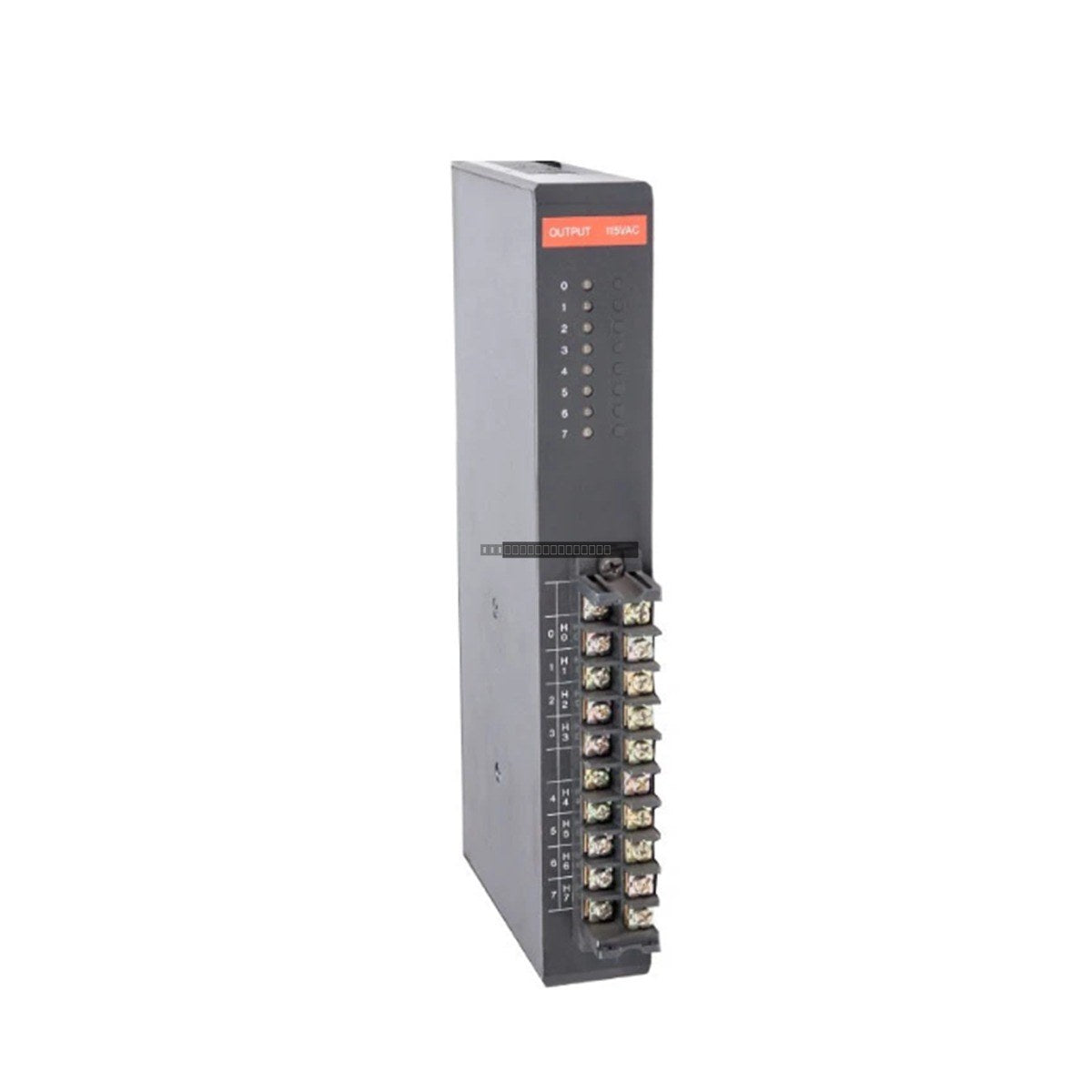

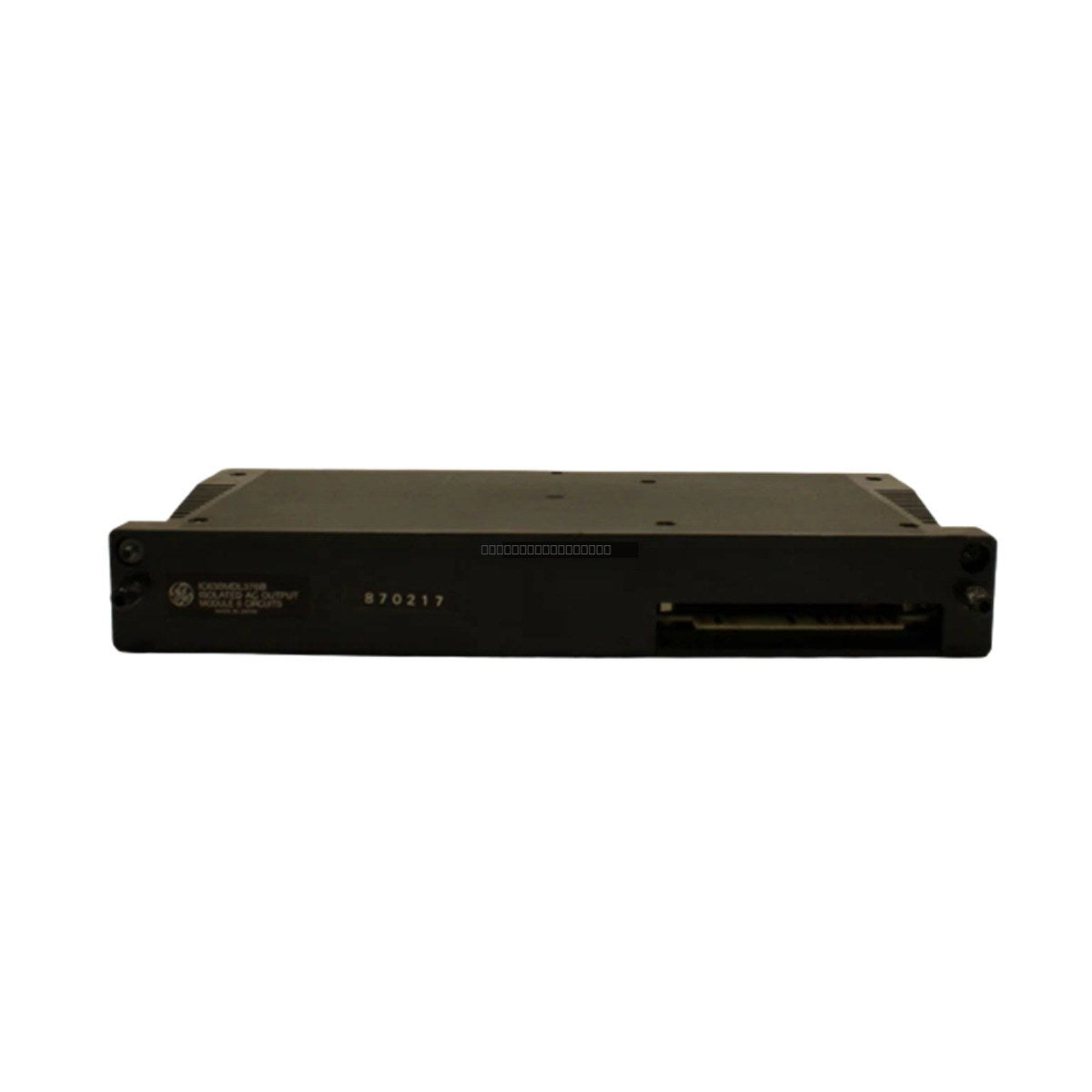

The GE Fanuc IC630MDL376 is an 8-point isolated AC output module designed for the Series Three programmable logic controller system. This module provides reliable switching for industrial control applications requiring isolated output channels, supporting both 115V AC and 230V AC voltage levels. It is engineered to integrate seamlessly into the Series Three rack architecture, offering robust performance for demanding automation environments.
Features
- Eight isolated output channels for flexible circuit configuration.
- Compatible with 115V AC and 230V AC power systems.
- Integrated LED status indicators for quick visual diagnostics of output states.
- Designed for high-reliability operation within the Series Three PLC platform.
Technical Specifications
| Manufacturer |
General Electric (GE Fanuc) |
| Series |
Series Three |
| Part Number |
IC630MDL376 |
| Product Type |
Isolated AC Output Module |
| Number of Outputs |
8 |
| Voltage Rating |
115/230V AC |
| Operating Temperature |
0 to 60 degC |
| Relative Humidity |
5 to 95% (non-condensing) |
Installation Guidelines
- Ensure the PLC rack power is disconnected before installing or removing the module to prevent electrical damage.
- Verify that the module is properly seated in the backplane connector to ensure reliable communication and power distribution.
- Use appropriate shielded cabling for output connections to minimize electromagnetic interference (EMI).
- Maintain adequate ventilation around the Series Three rack to ensure the module operates within its specified temperature range of 0 to 60 degC.
- Follow standard ESD (Electrostatic Discharge) precautions when handling the module to protect internal circuitry.
FAQ
What is the primary function of the IC630MDL376?
This module is an isolated output interface for the GE Series Three PLC, used to drive external AC loads such as contactors, solenoids, or indicators.
Does this module support DC voltages?
No, the IC630MDL376 is specifically designed for AC output applications at 115V or 230V.
How are the outputs isolated?
The module features isolated outputs, which allow for the control of different load circuits that may be referenced to different power phases or common points, provided they remain within the module's electrical specifications.
