Product Description

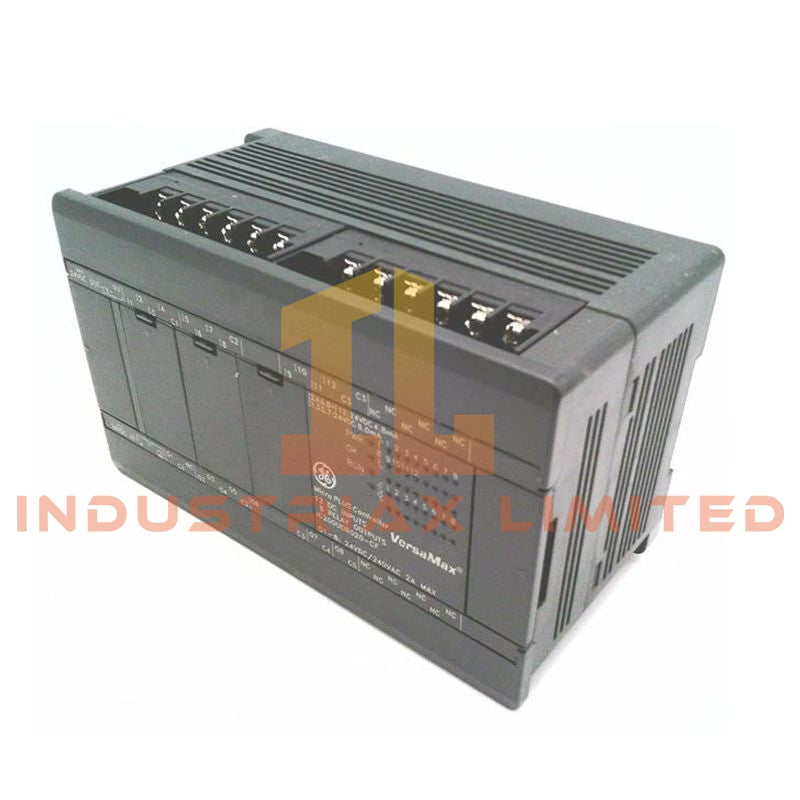

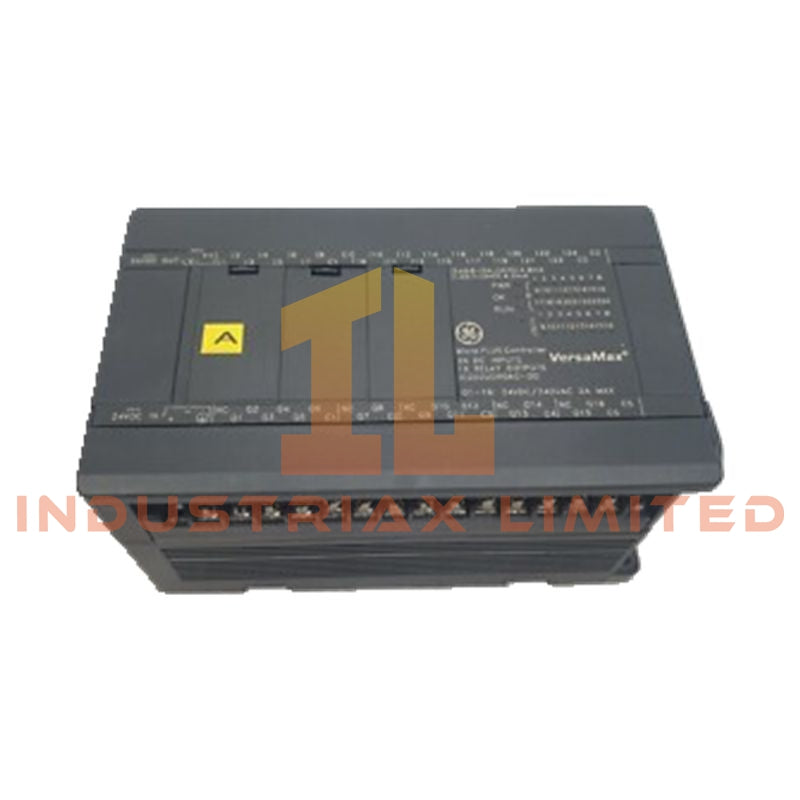

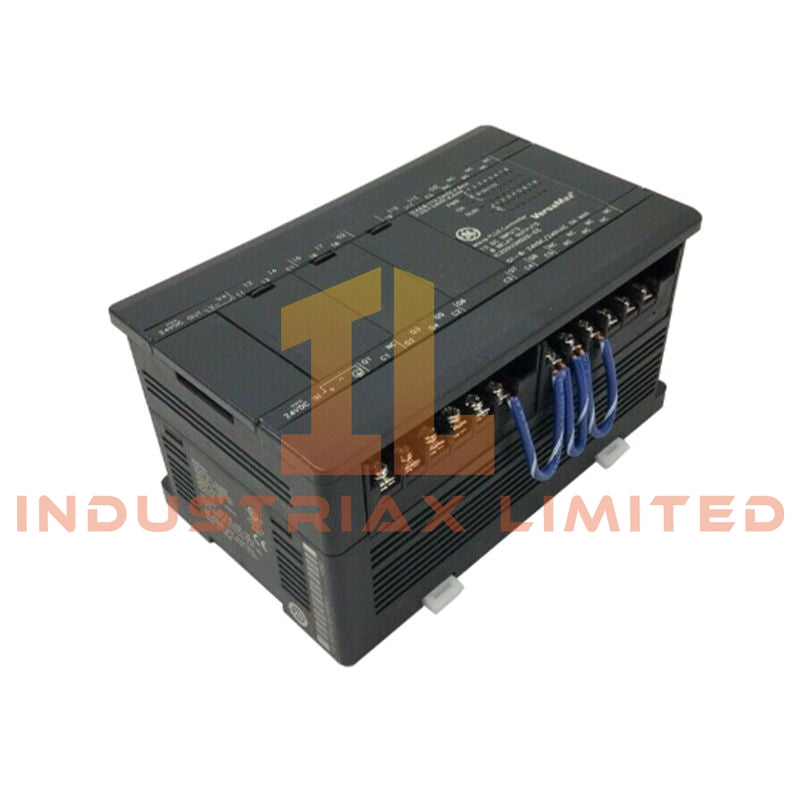

The IC200UDD020 compact PLC from GE Fanuc Emerson VersaMax Micro series is designed for small-scale automation systems requiring reliable control and integrated I/O. This unit combines a controller, power supply, and discrete I/O into a single enclosure, simplifying system architecture and reducing panel space.
Equipped with 20 onboard I/O points, the IC200UDD020 includes 12 digital inputs and 8 transistor-based DC outputs. It supports flexible input logic configurations and provides high-speed counter functionality, making it suitable for applications involving pulse signals, position tracking, and fast event processing.
Key Technical Specifications
| Parameter |
Specification |
| Model |
IC200UDD020 |
| Manufacturer |
GE Fanuc Emerson |
| Product Series |
VersaMax Micro |
| Controller Type |
Micro PLC |
| Total I/O Points |
20 |
| Digital Inputs |
12 x 24 VDC |
| Input Type |
Sink/Source (Positive & Negative Logic) |
| Digital Outputs |
8 x 24 VDC Transistor Outputs |
| Output Type |
DC Sourcing (Solid-State) |
| Supply Voltage |
24 VDC (19.2–30 VDC range) |
| Power Consumption |
Approx. 5 W |
| Typical Input Current |
0.2 A at 24 VDC |
| High-Speed Counters |
Multiple configurations (Type A / Type B / 32-bit modes) |
| Hold-Up Time |
≥10 ms at 19.2 VDC |
| Inrush Current |
1 A max at 30 VDC |
| Mounting |
DIN Rail |
| Operating Temperature |
0°C to 55°C (industrial standard) |
| Weight |
0.9 kg |
Functional Features
-
Integrated CPU, power supply, and I/O in one compact unit
-
Transistor outputs suitable for high-speed switching applications
-
Flexible input wiring (sinking or sourcing devices supported)
-
Built-in high-speed counters for pulse and frequency measurement
-
Compact and cost-effective solution for small automation systems
Application Scenarios
-
Packaging and labeling machinery
-
Conveyor and material handling systems
-
Small OEM equipment and skids
-
Motor control and sequencing tasks
-
Pulse-based applications such as encoders and counters
FAQ
Q: What type of outputs does the IC200UDD020 provide?
A: It uses DC transistor (sourcing) outputs, suitable for fast switching and high-frequency control tasks.
Q: Can this controller handle high-speed counting applications?
A: Yes, it includes configurable high-speed counters supporting multiple operating modes, including 32-bit counting.
Q: Is this unit expandable with additional I/O modules?
A: Yes, VersaMax Micro controllers can typically support expansion modules, depending on system configuration.
