Description
Product Overview

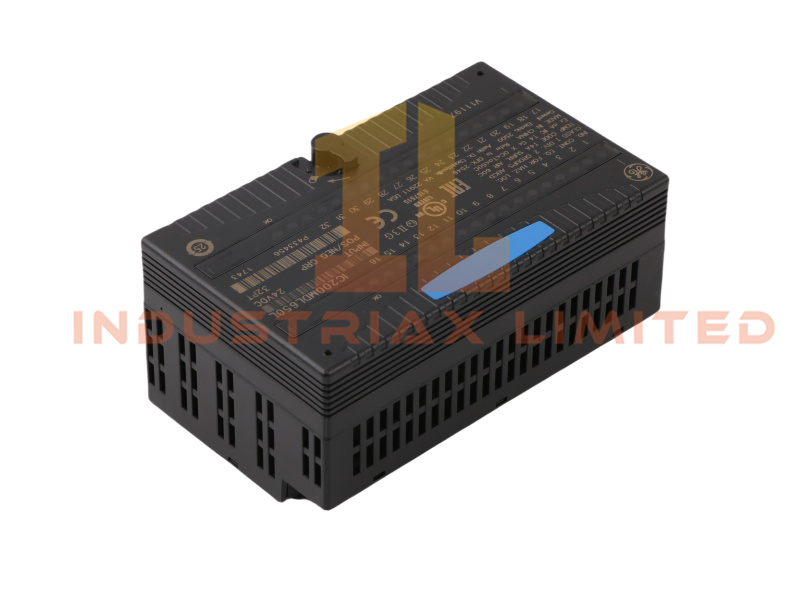

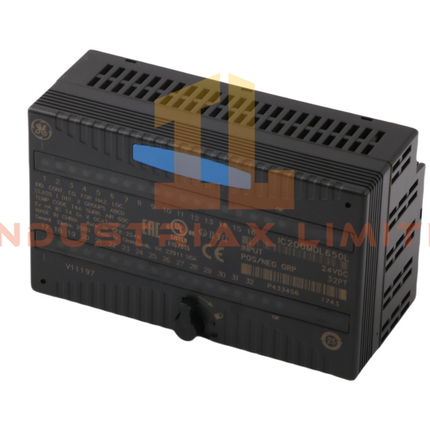

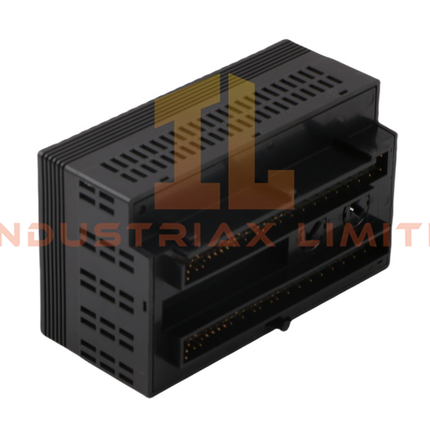

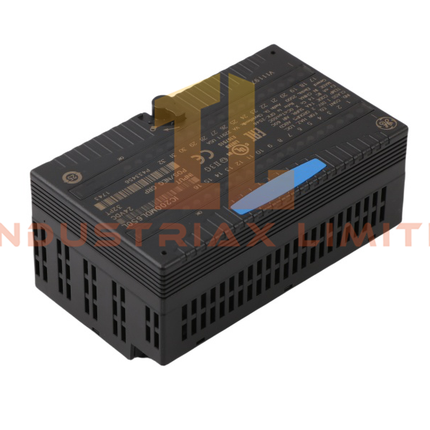

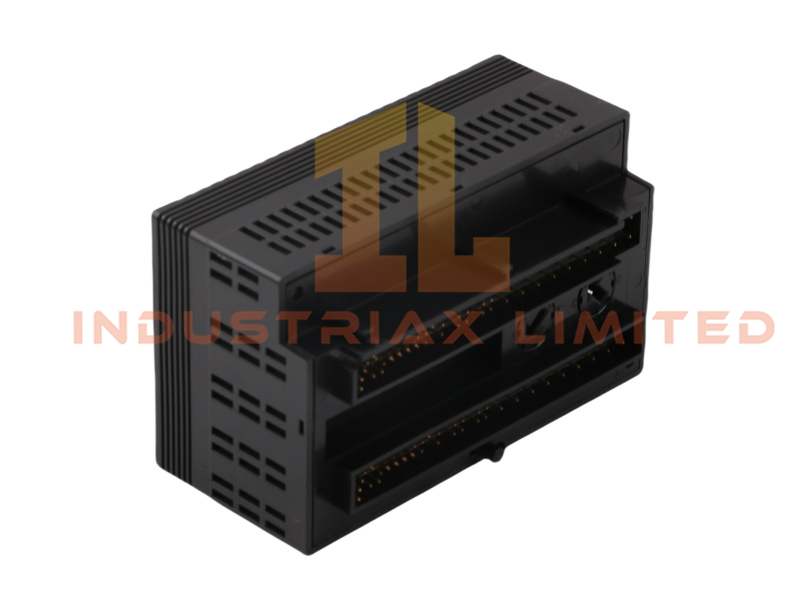

The GE Fanuc IC200MDL650 VersaMax Discrete Input Module provides reliable input handling for industrial PLC systems. Engineers value its compact 11x5.8x6.5cm design and lightweight 0.14kg build, which simplify installation. With 32 discrete inputs divided into four groups, the IC200MDL650 offers flexible configuration and compatibility with both positive and negative logic inputs.
Technical Specifications
| Parameter |
Value |
| Model Number |
IC200MDL650 |
| Module Type |
Discrete Input Module |
| Manufacturer |
GE Fanuc |
| Product Range |
VersaMax |
| Condition |
Brand New |
| Dimensions |
11 × 5.8 × 6.5 cm |
| Weight |
0.14 kg |
| HS Code |
8537101190 |
| Minimum Order Quantity |
1 |
| Origin |
USA |
| System Compatibility |
PLC |
| Communication Service |
Ethernet Router |
| Status |
Active |
Functional Description
The IC200MDL650 operates with backplane power, consuming 50 milliamps at 5 Volts DC. Two green LEDs provide clear operational feedback. Input voltage ranges from 0 to 30 Volts DC, with a nominal rating of 24 Volts DC. Input impedance measures 10k Ohms, ensuring robust signal processing.
The IC200MDL650 achieves an input on/off response time of 0.5 milliseconds, supporting rapid signal handling. On-state voltage ranges from 15 to 30 Volts, with on-state current between 2 and 5.5 milliamps. Selectable input filter times of 0 ms, 1 ms, and 7 ms can be configured through CPU software, enhancing control over input behavior.
Applications and Compatibility
The GE Fanuc IC200MDL650 VersaMax Discrete Input Module integrates seamlessly into PLC-based automation systems. Engineers deploy it in manufacturing plants, energy facilities, and process control environments requiring high-density input handling.
Its compact dimensions and lightweight design make the IC200MDL650 ideal for installations where space efficiency matters. Compatibility with VersaMax series components ensures smooth integration into GE industrial control infrastructures.
