Description
Product Overview

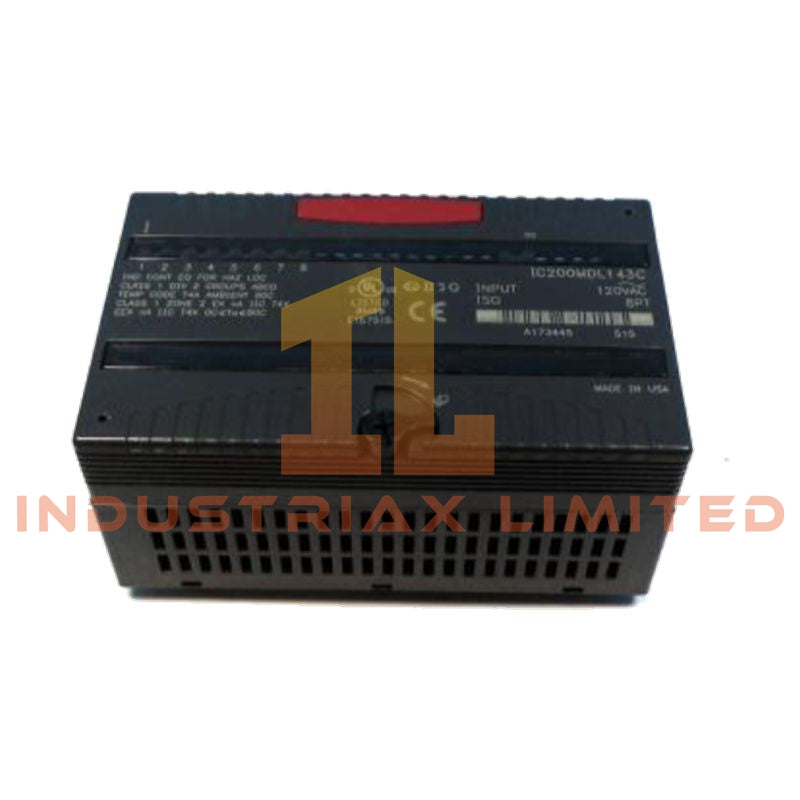

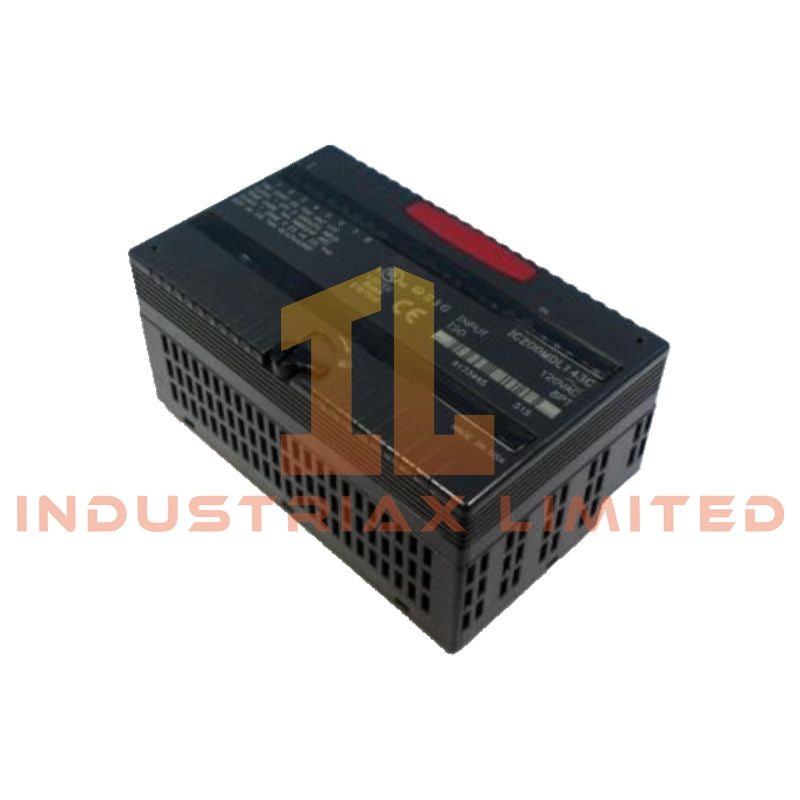

The IC200MDL143 is a discrete input module designed for the GE Fanuc Emerson VersaMax I/O platform. It provides reliable detection of AC input signals and is commonly used to interface field devices such as switches, sensors, and relays operating at standard industrial voltage levels.
With channel-to-channel isolation and integrated diagnostics, this module ensures stable signal acquisition in electrically demanding environments.
Technical Specifications
-
Model: IC200MDL143
-
Manufacturer: GE Fanuc / Emerson
-
Series: VersaMax
-
Product Type: Discrete Input Module
-
Number of Inputs: 8 isolated digital input channels
-
Input Voltage: 120 V AC nominal
-
Frequency Range: 50/60 Hz
-
Input Type: AC discrete signal detection
-
Channel Isolation: Individual isolation per input channel
-
Backplane Current Consumption: ~50 mA
-
Response Time (ON): 1 PLC scan cycle typical
-
Built-in Power Supply: Internal field-side power support
-
Status Indicators: 8 dedicated LEDs for per-channel status monitoring
-
Installation Location: VersaMax I/O carrier base
-
Dimensions: 110 mm × 66.8 mm × 50 mm
-
Weight: 0.25 lb
Functional Characteristics
The IC200MDL143 is engineered for accurate AC signal detection with robust isolation between channels, minimizing electrical interference and cross-talk. The integrated LED indicators allow quick visual diagnostics of input states, reducing troubleshooting time during commissioning and maintenance.
Its compatibility with VersaMax carriers ensures seamless integration into modular PLC systems.
Application Areas
-
Industrial control panels using AC input signals
-
Monitoring of pushbuttons, limit switches, and relay contacts
-
Machine automation systems with 120 VAC field devices
-
Distributed I/O installations within VersaMax architectures
-
Process control systems requiring isolated input channels
Engineering Notes
This module is intended for installation on a VersaMax I/O carrier and requires proper wiring practices for AC voltage systems. Ensure compliance with electrical safety standards when handling 120 VAC signals.
Channel isolation enhances noise immunity, making the module suitable for installations with high electromagnetic interference.
FAQ
Q1: What type of signals does the IC200MDL143 accept?
It is designed for 120 VAC discrete input signals.
Q2: Are the input channels isolated?
Yes, each of the 8 channels is individually isolated.
Q3: How is input status monitored?
Each channel has a dedicated LED indicator for real-time status display.
