Description
Product Overview

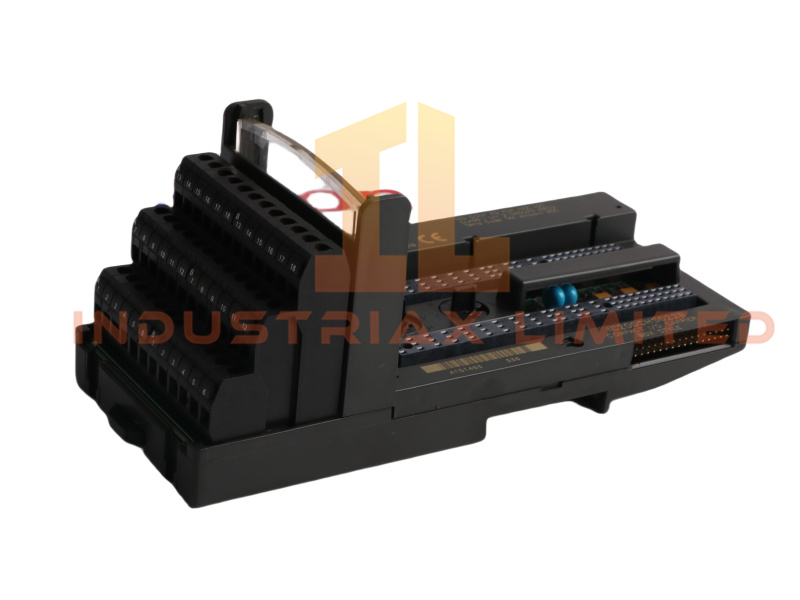

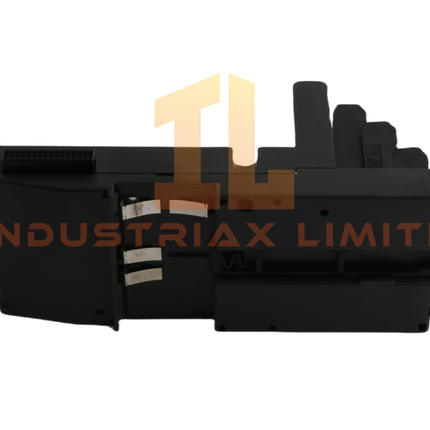

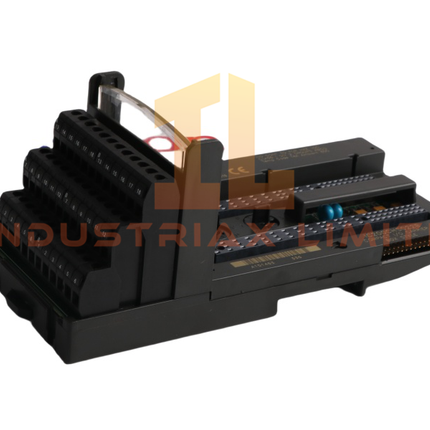

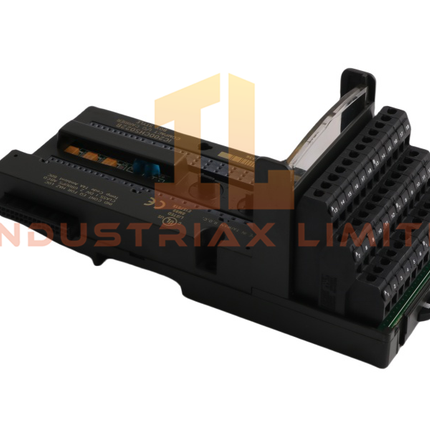

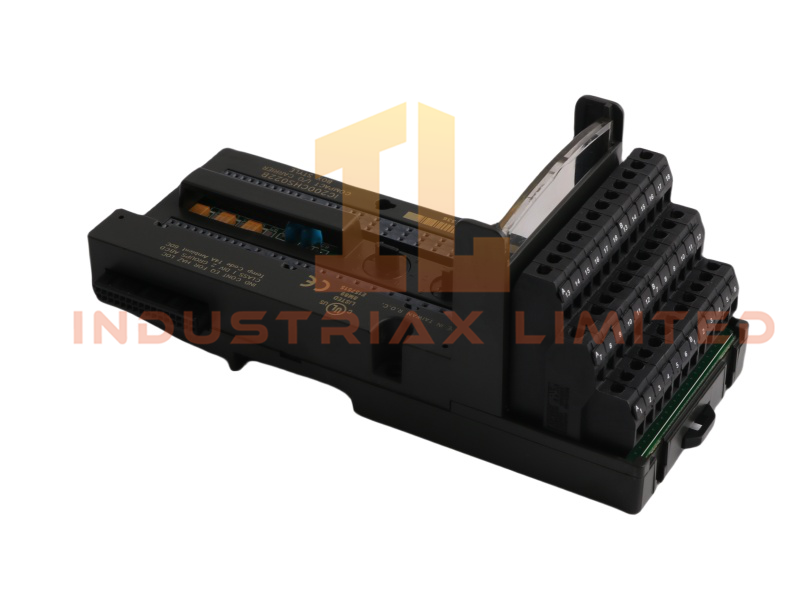

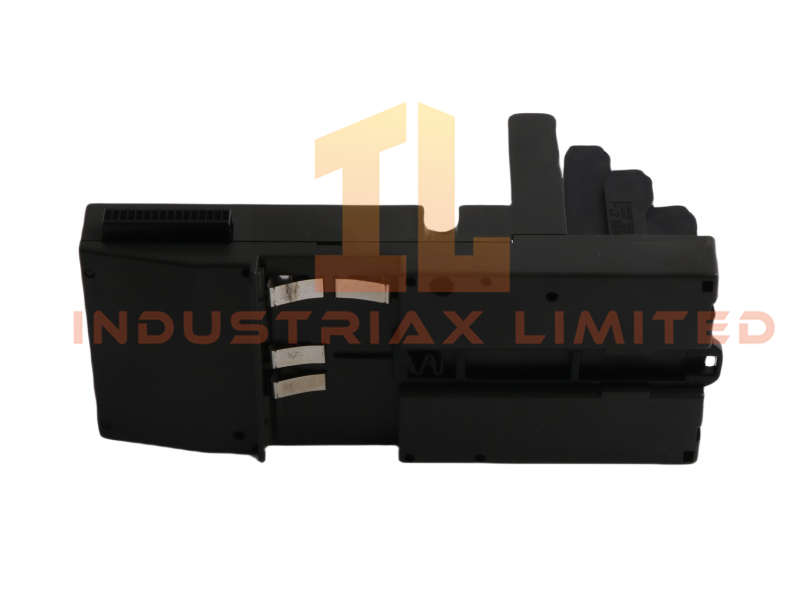

The GE Fanuc IC200CHS022 Compact Box-Style I/O Carrier belongs to the VersaMax product family, designed for PLC systems requiring efficient wiring and modularity. Its compact 16.5x6.5x7cm dimensions and lightweight 0.24kg build simplify installation in space-constrained panels. With 36 IEC box-style screw terminals, the IC200CHS022 ensures reliable connections for input and output devices, supporting both solid and stranded copper wires.
Technical Specifications
| Parameter |
Value |
| Model Number |
IC200CHS022 |
| Module Type |
Compact Box-Style I/O Carrier |
| Manufacturer |
GE Fanuc |
| Product Range |
VersaMax |
| Condition |
Brand New |
| Dimensions |
16.5 × 6.5 × 7 cm |
| Weight |
0.24 kg |
| HS Code |
8537101190 |
| Minimum Order Quantity |
1 |
| Origin |
USA |
| System Compatibility |
PLC |
| Communication Service |
Ethernet Router |
| Status |
Active |
Functional Description
The IC200CHS022 features 36 screw terminals labeled A1–A18 and B1–B18 for easy identification. Terminals support AWG #14 to #22 single-wire connections and AWG #18 two-wire shorting connections. Each terminal is rated for 0–264 VAC at 2A, while power and ground segments handle up to 8A.
The carrier withstands transient voltages up to 300 VAC, ensuring robust performance. Installation supports both DIN rail and panel mounting, with spacing requirements of 1 inch horizontally and 2 inches vertically for proper heat dissipation. A hinged card holder secures the I/O module and protects wiring during operation.
Applications and Compatibility
The GE Fanuc IC200CHS022 Compact Box-Style I/O Carrier integrates seamlessly into VersaMax PLC systems. Engineers deploy it in industrial automation environments requiring modularity and efficient wiring.
Its design allows I/O modules to be replaced or serviced without disconnecting existing wiring, reducing downtime. Operating reliably between 0°C and 60°C, the IC200CHS022 provides a durable solution for manufacturing plants, energy facilities, and process control systems.
