Product Overview

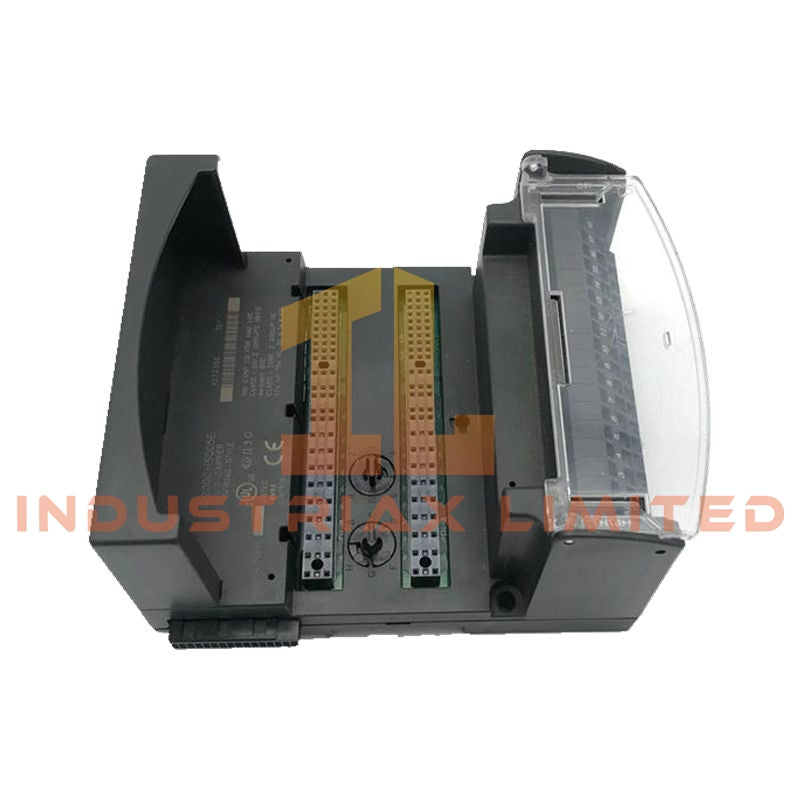

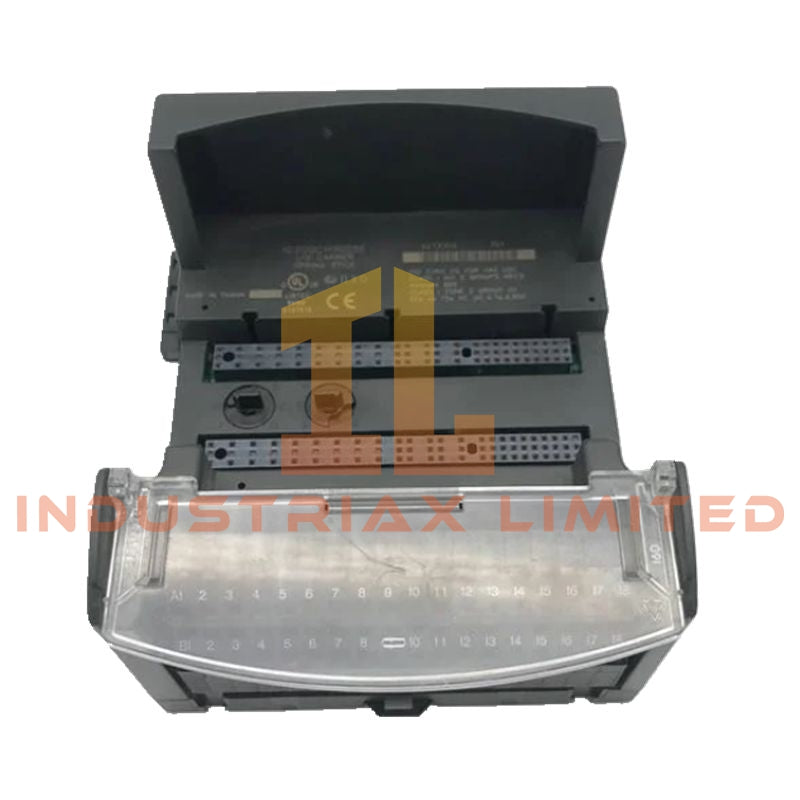

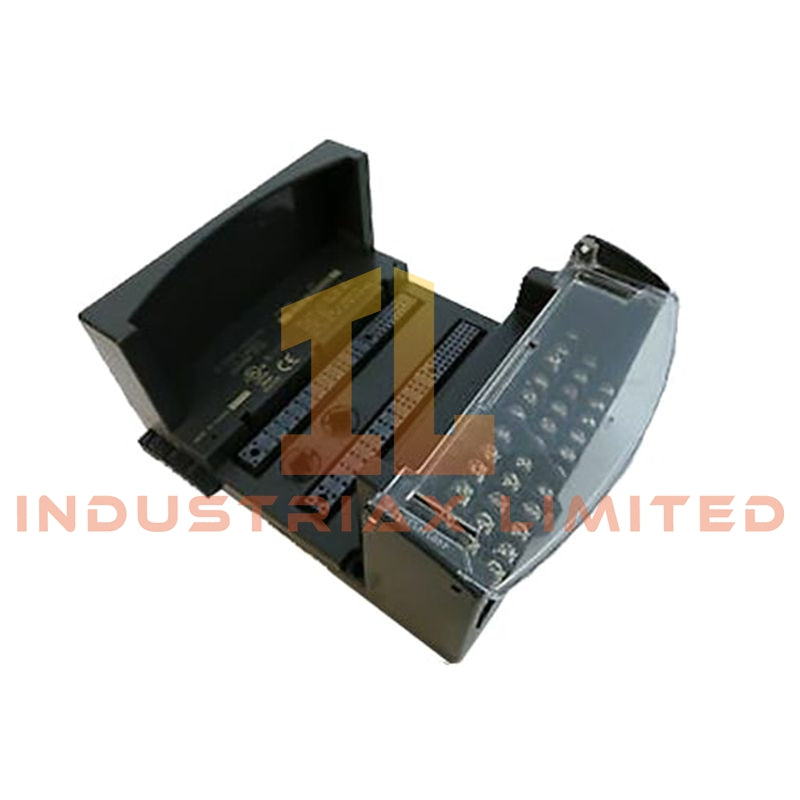

The IC200CHS005 is a VersaMax I/O carrier developed by GE Fanuc Emerson, featuring integrated spring-clamp terminals for efficient field wiring. It serves as the mounting and electrical interface for I/O modules, enabling streamlined installation and reliable signal distribution within control cabinets.
This carrier adopts a horizontal mounting design and is optimized for DIN rail installation, supporting compact panel layouts in industrial automation systems.
Technical Specifications
-
Model: IC200CHS005
-
Manufacturer: GE Fanuc / Emerson
-
Series: VersaMax
-
Product Type: Spring-Style I/O Carrier
-
I/O Capacity: Supports up to 32 I/O points
-
Terminal Type: Spring-clamp connection technology
-
Number of Terminals: 36 total terminals
-
Current Rating per Point: 2 A
-
Maximum Voltage per Point: 264 V AC
-
Common/Power Terminals: 4 dedicated connections
-
Terminal Tightening Force: Approx. 0.37 to 0.45 lb-ft equivalent spring pressure
-
Mounting Orientation: Horizontal
-
Installation Method: DIN rail mounting
-
Integration Type: Local integrated carrier for direct module mounting
-
Weight: 0.82 lb
Design Characteristics
The IC200CHS005 incorporates spring-clamp terminals to ensure consistent electrical contact without the need for periodic re-tightening. This design improves long-term reliability, particularly in environments subject to vibration or thermal cycling.
Its integrated carrier structure simplifies module installation by combining mechanical support and wiring interface into a single unit.
Application Areas
-
VersaMax PLC I/O system installations
-
Control panel wiring for digital and mixed I/O modules
-
Industrial automation cabinets requiring compact layouts
-
Machine control systems with distributed I/O architecture
-
Retrofit projects replacing screw-terminal carriers
Engineering Notes
Spring-clamp terminals are suitable for both solid and stranded conductors and reduce installation variability compared to screw-type terminals. Proper wire stripping length and insertion technique are important to ensure optimal contact performance.
This carrier is intended for use with compatible VersaMax I/O modules and does not function independently.
FAQ
Q1: How many I/O points can the IC200CHS005 support?
It supports up to 32 I/O points with additional terminals allocated for power and common connections.
Q2: What is the advantage of spring-clamp terminals?
They provide consistent contact pressure, reducing maintenance and improving reliability over time.
Q3: Can this carrier be mounted vertically?
It is primarily designed for horizontal DIN rail installation to ensure proper module alignment.
