Description
Product Overview

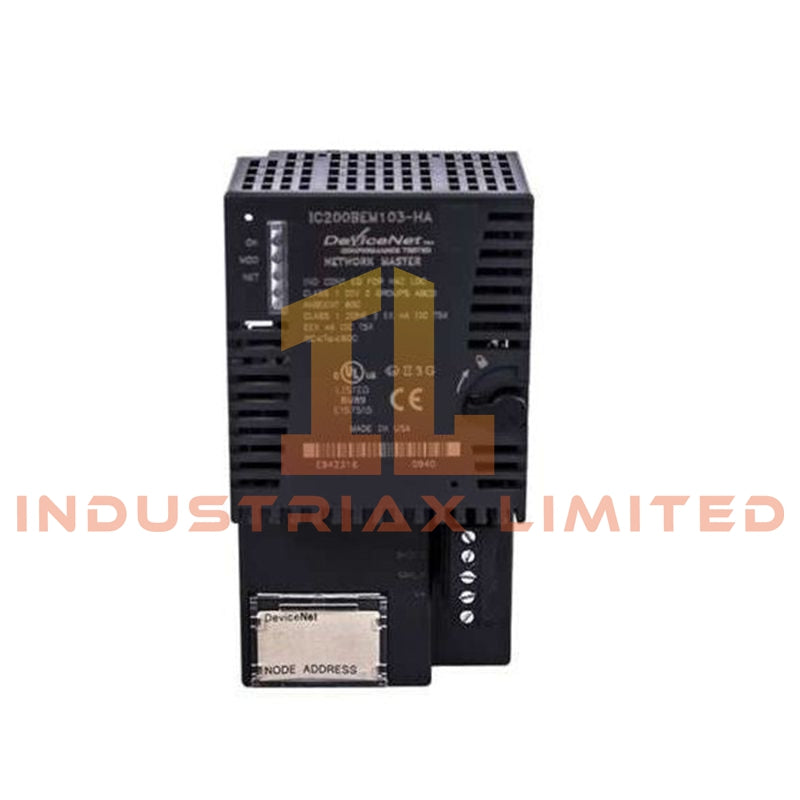

The IC200BEM103 is a VersaMax network communication module from GE Fanuc Emerson designed to operate as a DeviceNet interface for distributed control architectures. It enables structured communication between a PLC system and multiple slave devices, supporting both master and slave roles depending on configuration.
The module is intended for deterministic data exchange in industrial networks where reliable cyclic communication and multi-node coordination are required.
Technical Specifications
-
Model: IC200BEM103
-
Manufacturer: GE Fanuc / Emerson
-
Series: VersaMax
-
Product Type: Network Interface / DeviceNet Communication Module
-
Protocol: DeviceNet (Master/Slave capability)
-
Supported Nodes: Up to 40 slave devices
-
Maximum Network Nodes: Up to 64 nodes without bridging
-
Data Transmission Rates: 125 / 250 / 500 kbaud selectable
-
Input/Output Data Capacity: Up to 512 bytes total cyclic data exchange
-
Typical Data Size per Connection: 0 to 8 bytes configurable
-
Power Consumption: ~140 mA at backplane supply
-
Operating Temperature Range: 0°C to 60°C
-
Weight: 0.44 lb
Functional Characteristics
The IC200BEM103 provides a dedicated communication gateway for integrating VersaMax I/O systems into DeviceNet networks. It supports structured data mapping for efficient cyclic communication between controller and field devices.
Its configurable baud rates allow adaptation to different network sizes and cable lengths, ensuring stable communication performance across varied installations.
Application Areas
-
DeviceNet-based distributed I/O systems
-
Multi-slave industrial communication networks
-
Machine automation requiring networked field devices
-
Conveyor and material handling control systems
-
Retrofit integration of VersaMax systems into existing DeviceNet infrastructure
Engineering Notes
This module must be installed on a compatible VersaMax I/O carrier such as IC200CHS series. Proper network termination and cable shielding are required to maintain signal integrity at higher baud rates.
Device addressing and network configuration should be completed according to DeviceNet protocol standards prior to system commissioning.
FAQ
Q1: How many devices can the IC200BEM103 support?
It supports up to 40 slave devices and up to 64 total network nodes without bridging.
Q2: What communication speeds are available?
Selectable baud rates include 125 kbaud, 250 kbaud, and 500 kbaud.
Q3: Does it support both master and slave modes?
Yes, it is designed for DeviceNet master/slave network operation depending on configuration.
