Description

Product Overview

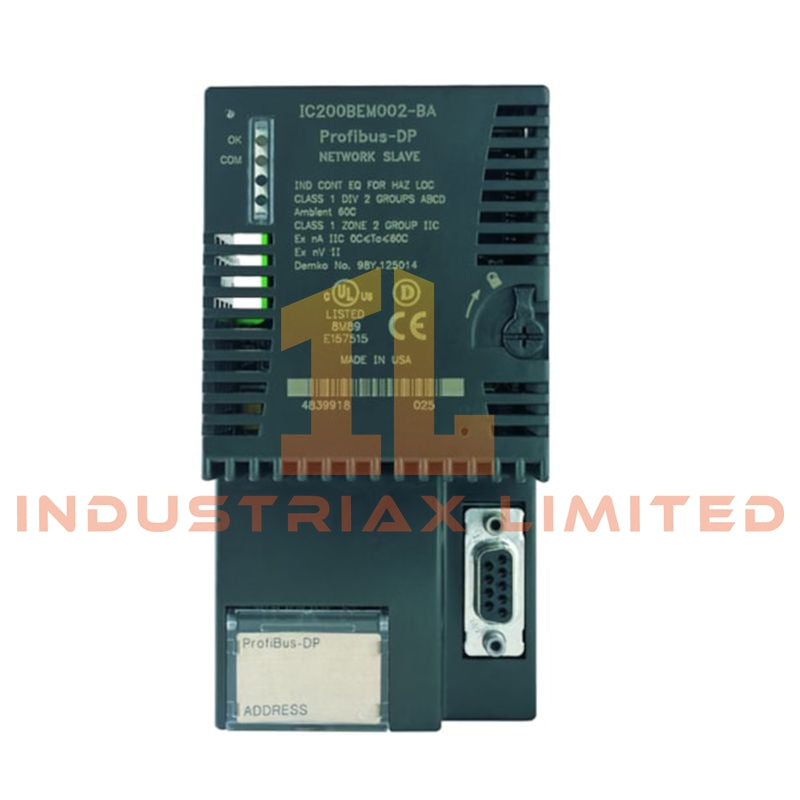

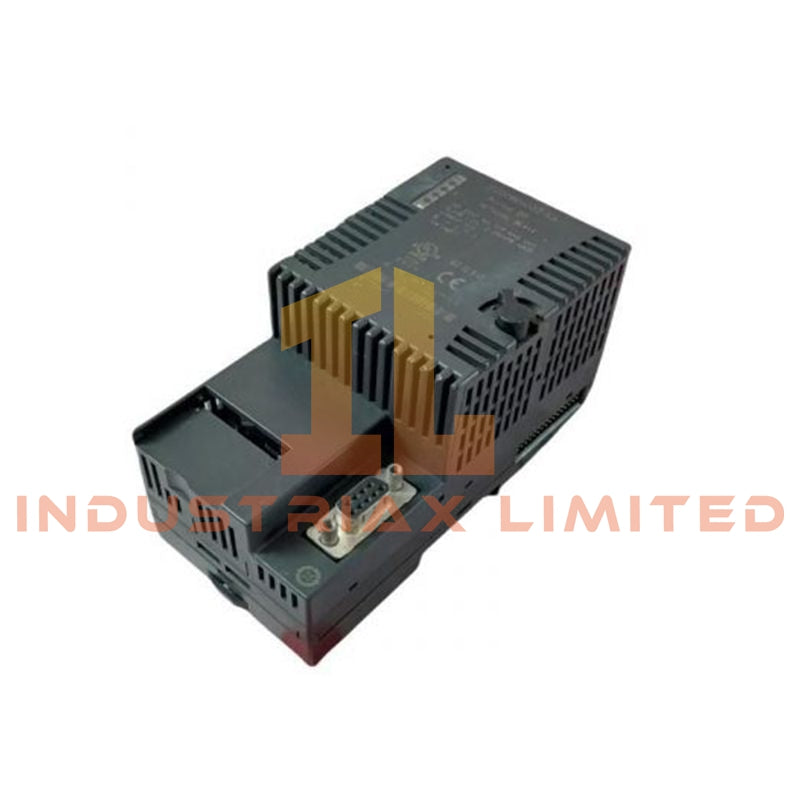

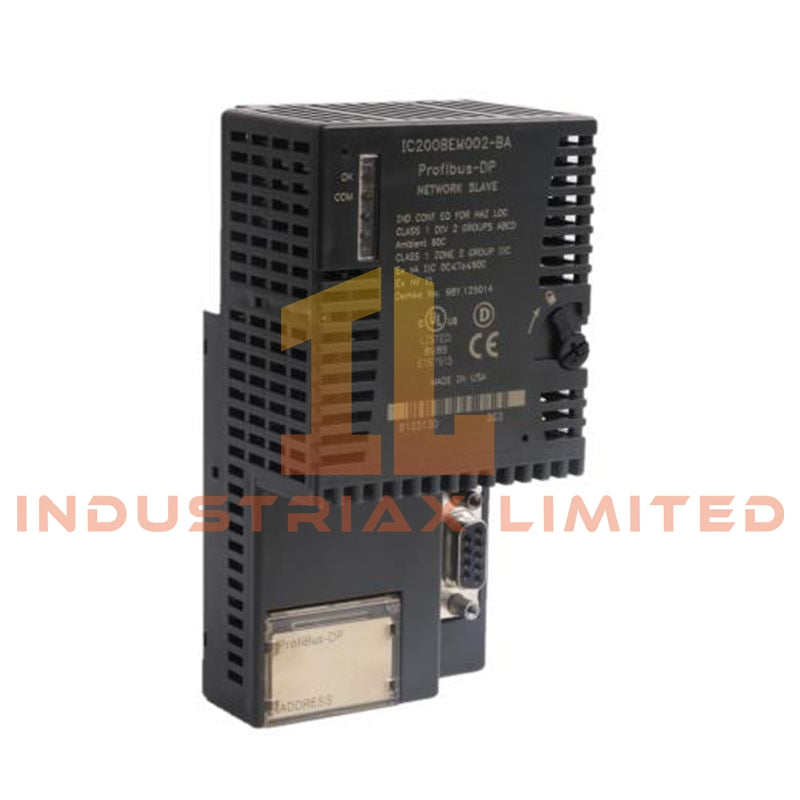

The IC200BEM002 is a Versamax communication interface module from GE Fanuc Emerson designed for integration into PROFIBUS-DP networks as a slave station. It provides deterministic cyclic data exchange between a PLC system and a PROFIBUS master, supporting scalable distributed I/O architectures.

The module supports automatic baud rate synchronization and is engineered for stable operation in industrial network environments with multi-drop fieldbus topology.

Technical Specifications

• Model: IC200BEM002

• Manufacturer: GE Fanuc / Emerson

• Series: Versamax

• Module Type: PROFIBUS-DP Slave Communication Module

• Network Protocol: PROFIBUS-DP (DP-V0 slave functionality)

• Data Transmission Rate: 9.6 kbit/s to 12 Mbit/s

• Baud Rate Detection: Automatic synchronization

• Maximum Stations:

• Up to 32 nodes without repeaters

• Up to 125 nodes with repeaters

• I/O Data Capacity: Up to 384 bytes total cyclic data

• Input/Output Mapping: Approximately 244 bytes configurable I/O data

• Connector Interface: 9-pin D-sub (RS-485 PROFIBUS standard)

• Network Topology: Linear bus with termination at both ends

• Transmission Medium: Shielded twisted-pair cable (STP)

• Supply Voltage: 5 V DC (backplane powered)

• Current Consumption: ~460 mA typical

• Input Impedance: 135–165 Ω (bus interface standard)

• Mounting Method: DIN rail installation via Versamax base

• Indicators: Power (PWR) LED and Communication (COM) LED

System Integration Notes

The IC200BEM002 requires a compatible Versamax base assembly (e.g., IC200CHS series) for correct operation. It functions as a network communication bridge between local I/O racks and a PROFIBUS-DP master controller.

Proper bus termination resistors and shield grounding practices are required to maintain signal integrity at higher baud rates.

Application Scenarios

• Distributed control systems using PROFIBUS-DP networks

• Integration of Versamax I/O into third-party PLC systems

• Process automation requiring deterministic fieldbus communication

• Retrofit of legacy Profibus-based industrial networks

• Remote I/O expansion in machine control systems

FAQ

Q1: Is the IC200BEM002 a master or slave device?
It operates strictly as a PROFIBUS-DP slave module.

Q2: What is the maximum supported data rate?
It supports up to 12 Mbit/s depending on network configuration and cable quality.

Q3: Does it support automatic baud rate detection?
Yes, it automatically detects and synchronizes to the PROFIBUS network speed.

Q4: What base is required for installation?
It must be installed on a compatible Versamax chassis such as IC200CHS series.

Specifications

• Brand: General Electric

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
