Description
Overview

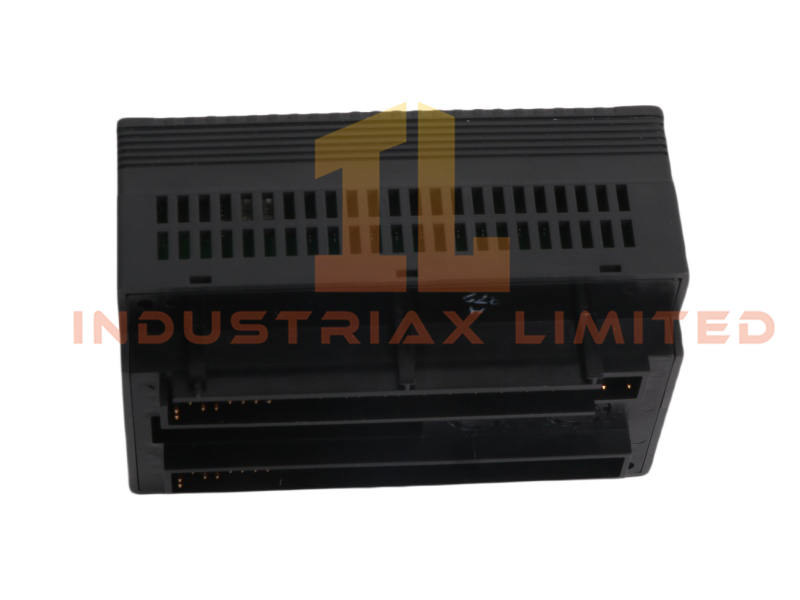

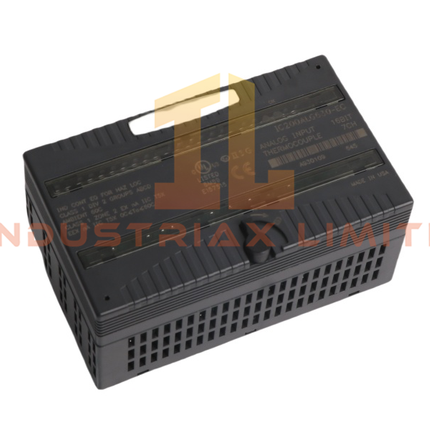

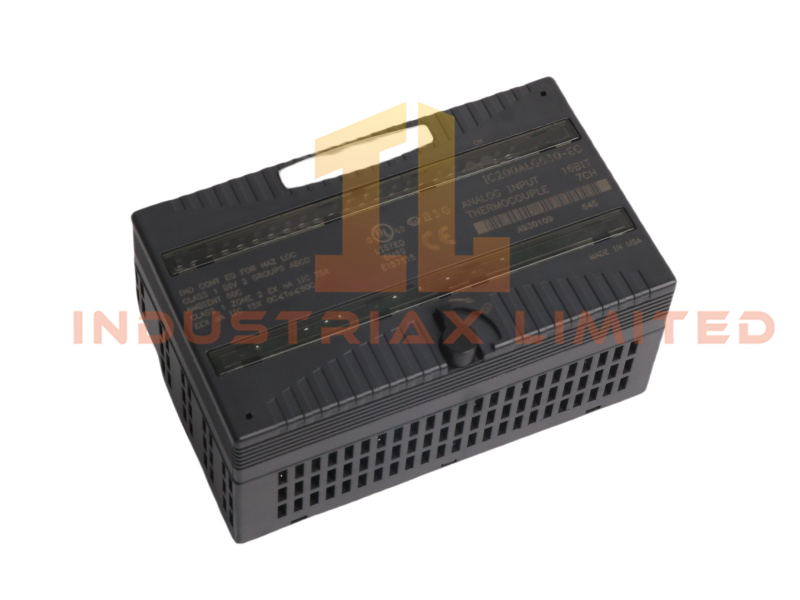

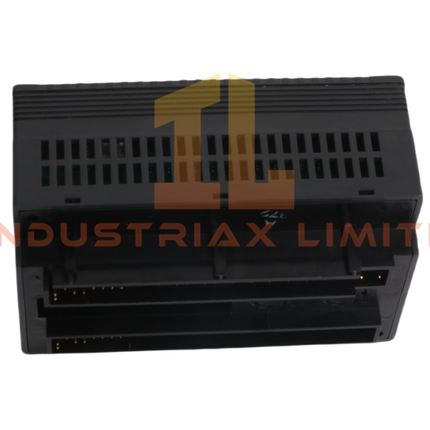

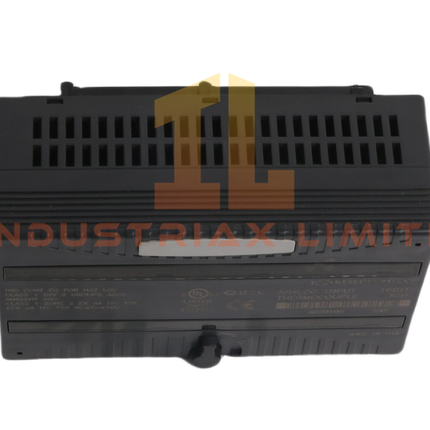

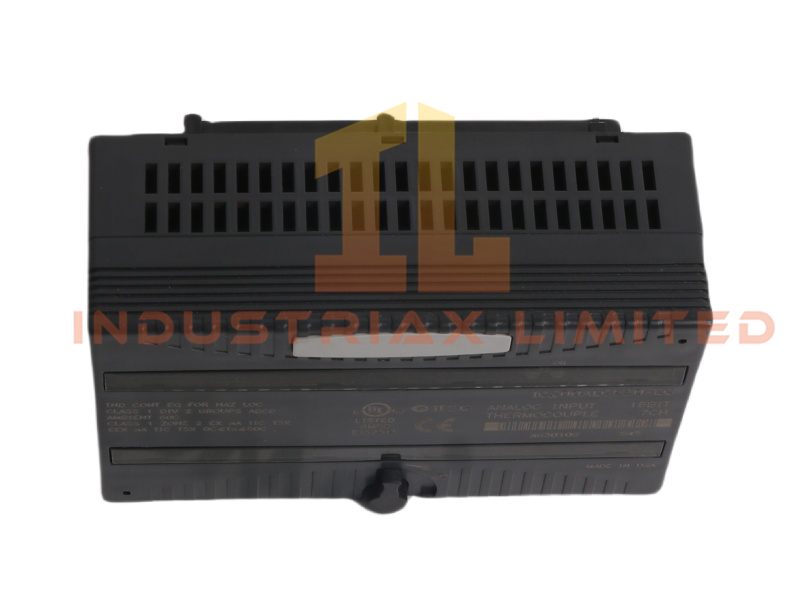

The IC200ALG630 analog input module from GE Fanuc’s VersaMax series is engineered for precise temperature measurement and millivolt signal integration. It supports direct connection to J, K, T, S, and R-type thermocouples and handles input ranges from ±19.5 mV to ±625 mV.
This compact module measures 15.5×15×8.3 cm and weighs 0.3 kg. The IC200ALG630 features seven input channels, each equipped with a 16-bit ADC for high-resolution data acquisition. It delivers fast scan rates and diagnostic feedback through LED indicators.
Technical Specifications
| Specification |
Details |
| Model Number |
IC200ALG630 |
| Module Type |
VersaMax Analog Input Module |
| Manufacturer |
General Electric (GE) |
| Series |
VersaMax |
| System |
PLC |
| Dimensions |
15.5 × 15 × 8.3 cm |
| Weight |
0.3 kg |
| Input Channels |
7 |
| Signal Type |
Thermocouple / Millivolt |
| Input Range |
±19.5 mV to ±625 mV |
| Thermocouple Types |
J, K, T, S, R |
| Resolution |
16-bit ADC |
| Scan Time |
60 ms @ 60 Hz, 70 ms @ 50 Hz |
| Voltage Accuracy |
±0.2% |
| Temperature Accuracy |
±0.15% |
| Diagnostics |
Open TC, Range, Thermistor Fault |
| Isolation |
250 VAC Continuous, 1500 VAC Transient |
| Current Draw |
125 mA from Backplane |
| Indicators |
Green (OK), Amber (Fault) |
| Communication |
Ethernet Router |
| HS Code |
8537101190 |
| Lead Time |
In Stock |
| Minimum Order |
1 Unit |
| Origin |
USA |
| Status |
Active |
Features & Performance
-
The IC200ALG630 supports shielded twisted-pair wiring for enhanced signal stability.
-
Its diagnostic functions include open thermocouple detection and range alarms.
-
LED indicators provide immediate feedback on module health and channel status.
-
The module’s compact design helps conserve panel space in dense installations.
Applications & Compatibility
The IC200ALG630 integrates seamlessly into GE VersaMax PLC systems. It suits industrial environments requiring accurate temperature monitoring, such as HVAC, chemical processing, and energy management.
Compatible with various thermocouple types and millivolt sensors, the IC200ALG630 ensures reliable data acquisition and fault detection across diverse automation platforms.
