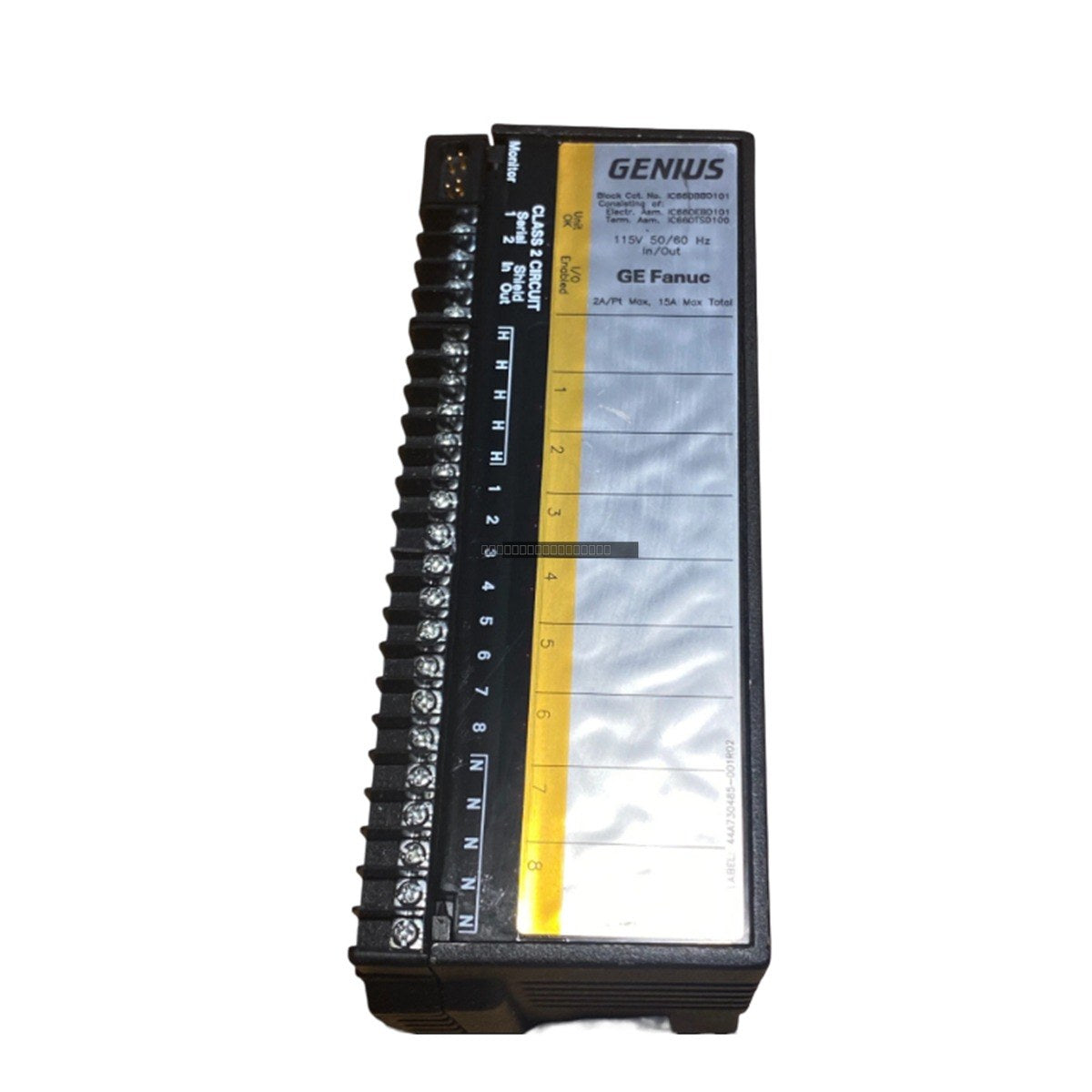

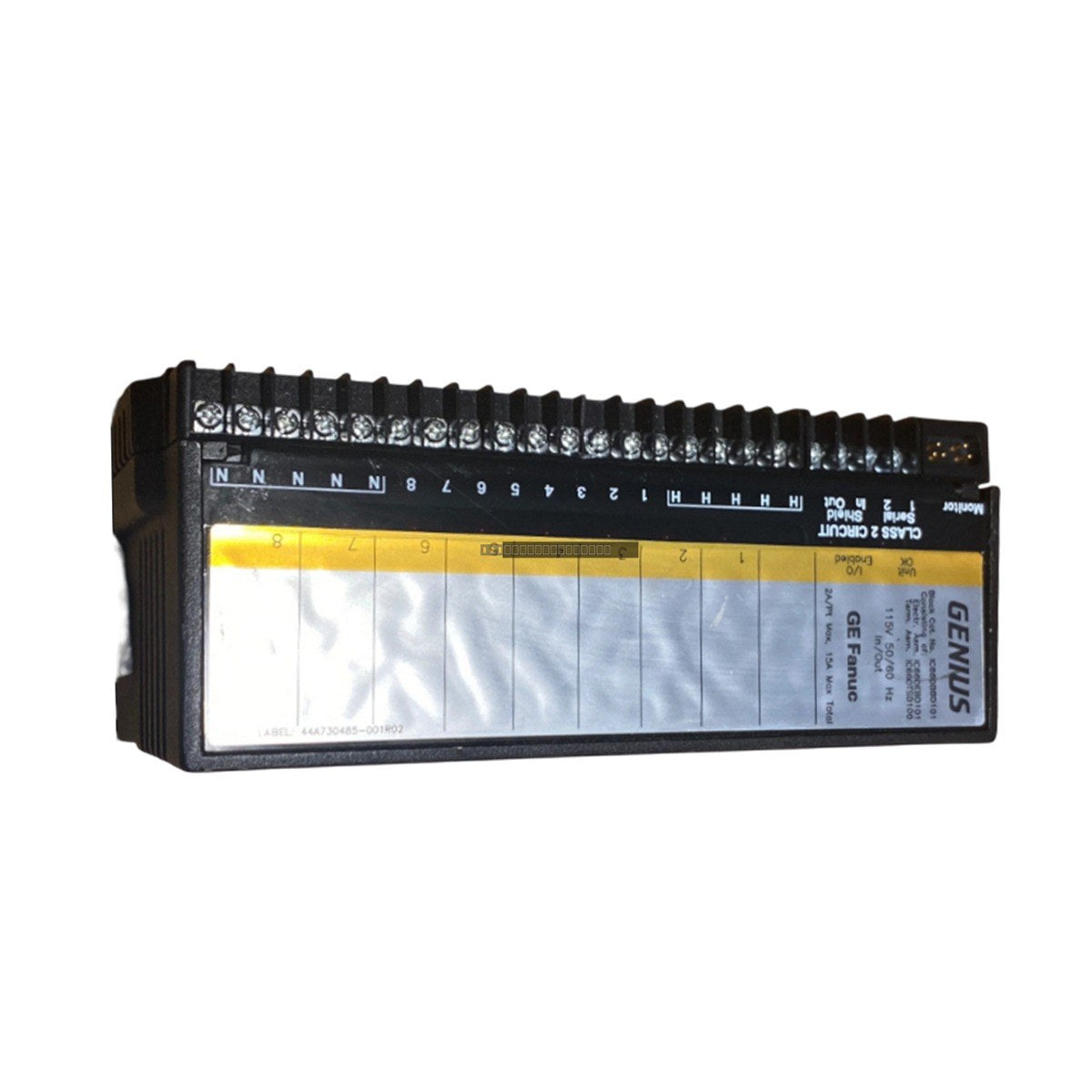

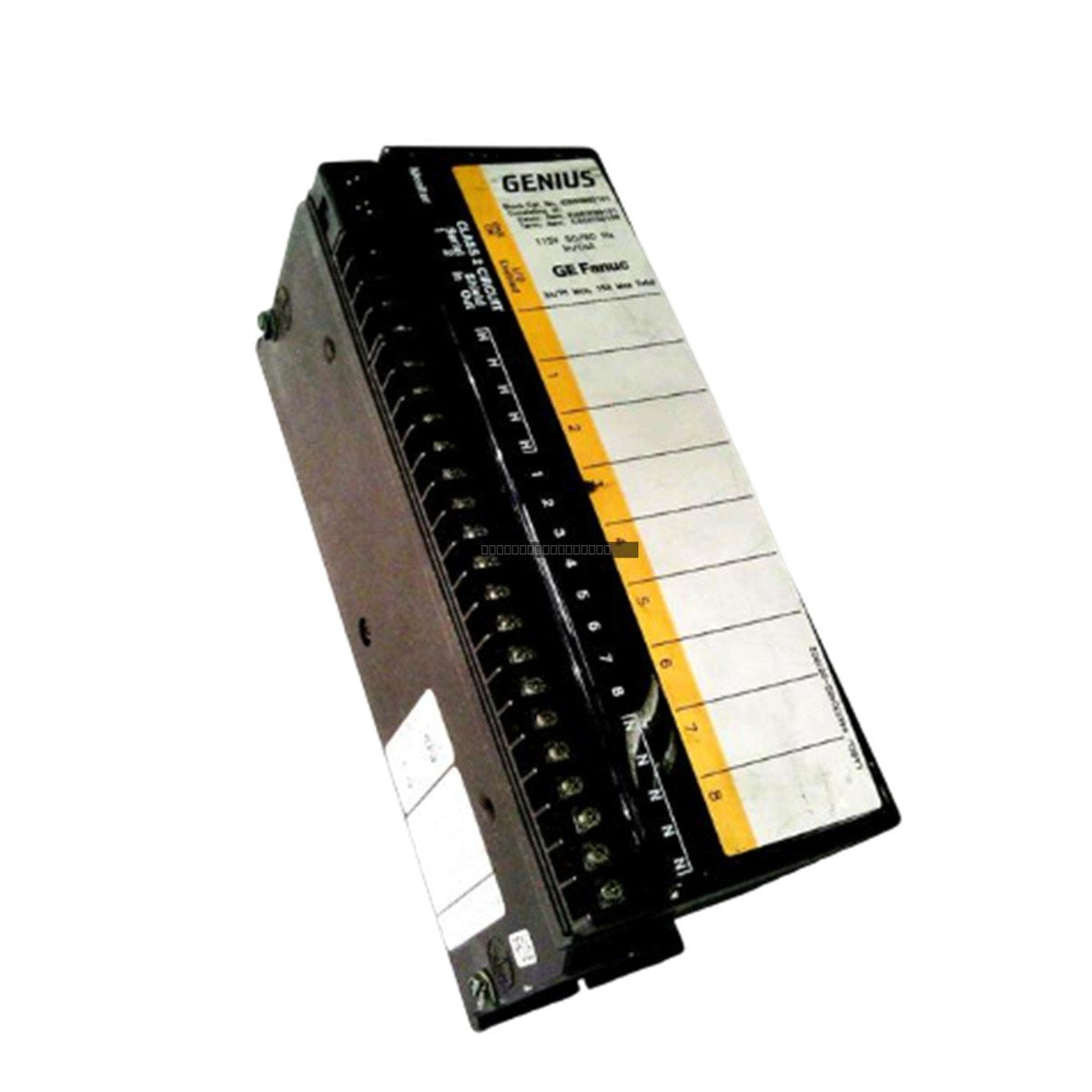

The General Electric IC660BBD101 is a Genius I/O discrete I/O block designed for reliable industrial automation control. As part of the GE Genius I/O series, this module provides 8 points of discrete input/output capability, specifically engineered for 115 VAC applications. It serves as a robust interface between field devices and the main control system, ensuring efficient signal processing in complex industrial environments.
Features
- 8 discrete I/O points grouped per common.
- Supports 115 VAC nominal operating voltage (93-132 VAC range).
- Integrated fuse protection for enhanced circuit safety.
- Configurable filter time ranging from 10 to 100 mS.
- Diagnostic LEDs for Unit OK and I/O Enabled status monitoring.
- 1500V block-to-block isolation for electrical noise immunity.
Technical Specifications
| Model |
IC660BBD101 |
| Series |
Genius I/O |
| Voltage Type |
115 VAC |
| Operating Voltage |
93-132 VAC |
| Frequency |
47 to 63 Hz |
| Points per Common |
1 group of 8 |
| Input Response Time |
2 msec plus configurable filter |
| Output Response |
Zero crossing |
| Isolation |
1500V (1 minute) |
Installation Guidelines
- Ensure the control system is powered down before installing or removing the I/O block.
- Mount the unit in a clean, dry environment with adequate ventilation to prevent overheating.
- Use shielded cabling for I/O signals to minimize electromagnetic interference (EMI) from high-power equipment.
- Verify that all field wiring is properly secured and that the common terminals are correctly configured for the application.
- Follow standard ESD (Electrostatic Discharge) precautions when handling the module to prevent damage to internal circuitry.
FAQ
What is the primary function of the IC660BBD101?
The IC660BBD101 is a discrete I/O block used to interface 115 VAC field devices with a Genius I/O network, allowing for the monitoring and control of 8 distinct circuits.
What is the required operating frequency for this module?
This module is designed to operate within a frequency range of 47 to 63 Hertz.
Does this module provide isolation?
Yes, the IC660BBD101 features 1500V block-to-block isolation, which helps protect the internal electronics from voltage spikes and ground loops in industrial environments.
