Description
Overview

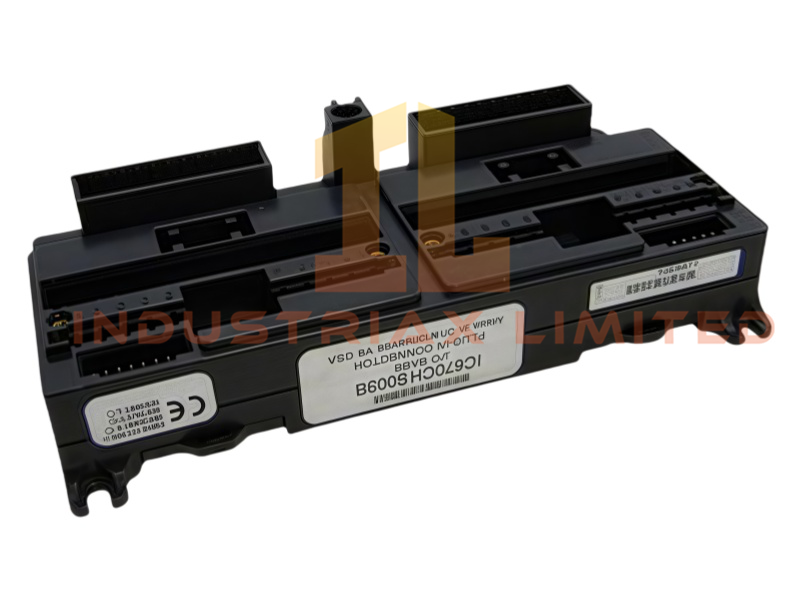

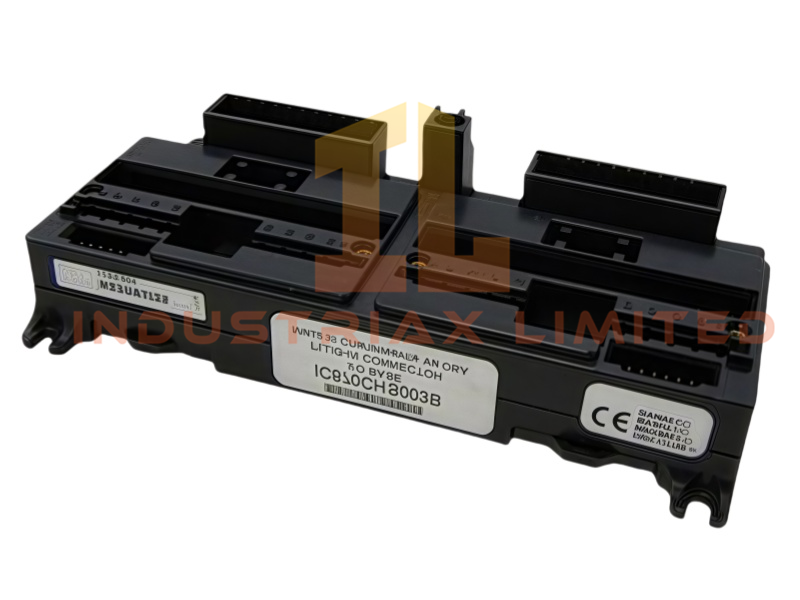

The IC670CHS003 Terminal Block is a GE Fanuc Field Control wiring interface designed to provide secure, high‑density terminations for distributed I/O modules. Built for environments where wiring integrity and rapid module replacement are essential, this terminal block combines connectorized convenience with the durability required for industrial control systems.
Functional Characteristics
The terminal block includes two keyed 20‑pin male connectors engineered to prevent incorrect mating and ensure consistent electrical contact. It supports field wiring from 16–24 AWG, making it suitable for a wide range of signal and control applications.
The IC670CHS003 maintains all core functions of traditional terminal blocks—such as vibration‑resistant mounting and preservation of field wiring during module swaps—while adding the advantages of connectorized installation. It is compatible with AMP D‑3000 series contacts and can be paired with GE’s IC670ACC003 accessory kit for complete connector assembly.
Mechanical and Electrical Specifications
| Parameter |
Specification |
| Model |
IC670CHS003 |
| Product Type |
Terminal Block |
| Brand |
GE Fanuc |
| Series |
Field Control |
| Dimensions |
5.4 × 8.5 × 8 cm |
| Weight |
0.24 kg |
| Origin |
USA |
| HS Code |
8537101190 |
| Condition |
New |
| Availability |
In Stock |
| Connector Type |
Dual 20‑pin keyed male connectors |
| Supported Wire Gauge |
16–24 AWG |
| Mounting |
Screw‑secured, vibration‑resistant |
| System Compatibility |
DCS / GE Fanuc Field Control |
| Minimum Order |
1 unit |
Integration and System Role
The IC670CHS003 is designed for:
-
High‑density wiring in Field Control I/O assemblies
-
Applications requiring frequent module replacement
-
Installations exposed to vibration where screw terminals may loosen
-
Maintaining backplane communication integrity during module changes
Its connectorized design reduces wiring errors, improves serviceability, and enhances long‑term reliability.
Application Scenarios
-
Distributed I/O panels
-
Power generation control systems
-
Manufacturing automation
-
High‑vibration industrial environments
-
Field Control system expansions or retrofits
FAQ
Q: What connectors are used on this terminal block? A: Two keyed 20‑pin male connectors compatible with AMP D‑3000 series contacts.
Q: Does the block support dual‑module wiring? A: Yes. It can accommodate wiring for two modules on a single block.
Q: Is it suitable for vibration‑prone installations? A: Yes. Its screw‑mounted, connectorized design enhances stability and wiring retention.
