Description
Product Overview

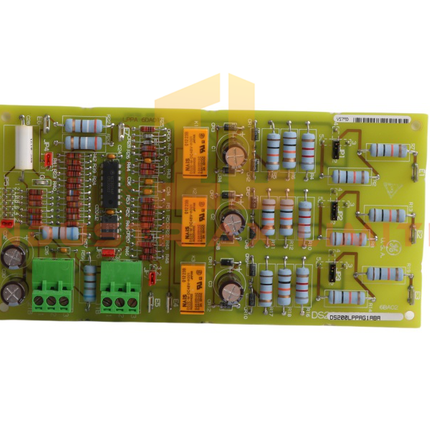

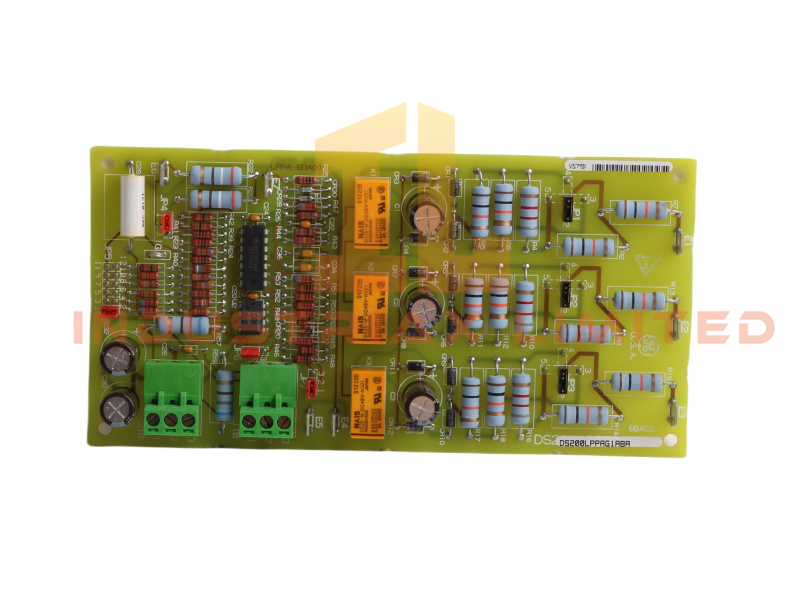

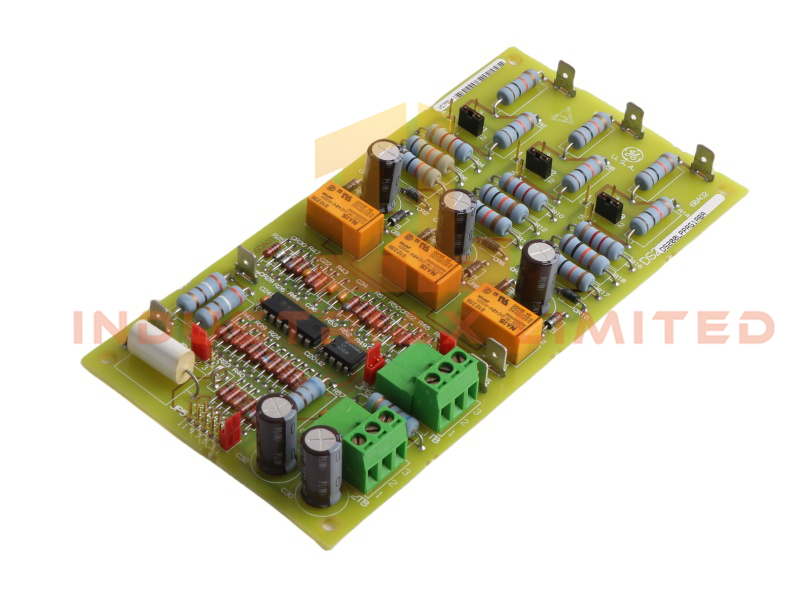

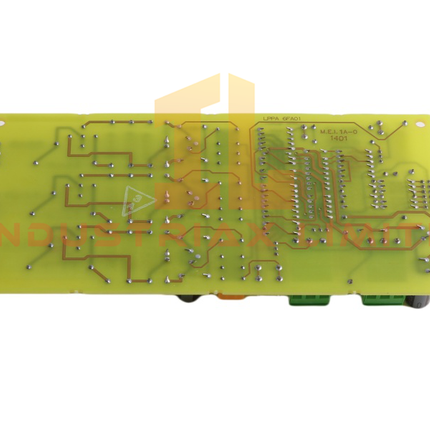

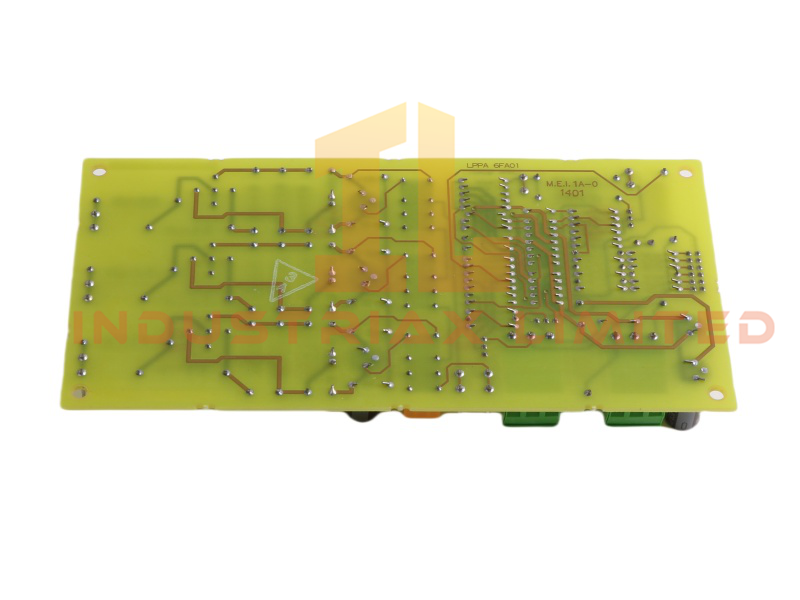

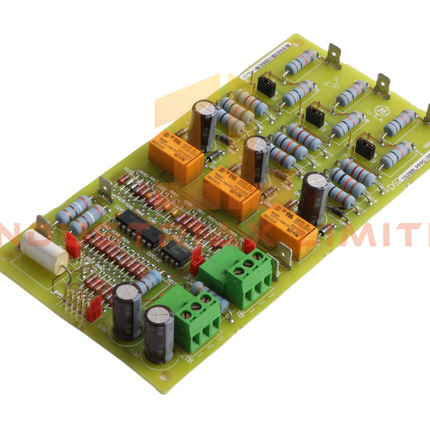

The DS200LPPAG1A Line Protection Card from GE’s Mark V series enhances turbine control systems with reliable voltage protection and diagnostic features. This A-rated revision improves upon the original DS200LPPAG1, offering better durability and compatibility with legacy Speedtronic platforms.
Its compact design includes seven jumpers, two terminal blocks, and multiple test points. The board integrates capacitors, diodes, and ICs to manage voltage fluctuations and protect sensitive components. A protective coating shields the surface from electrical damage, while insulated mounting holes ensure safe installation.
Technical Specifications
| Specification |
Details |
| Model Number |
DS200LPPAG1A |
| Module Type |
Line Protection Card |
| Product Series |
Mark V |
| Manufacturer |
GE Fanuc |
| Dimensions |
17.7 × 8.8 × 2.5 cm |
| Weight |
0.14 kg |
| Jumpers |
7 (JP1–JP7) |
| Terminal Blocks |
2 (3 terminals each) |
| Diagnostic Points |
Multiple test points |
| Circuit Components |
Capacitors, diodes, ICs |
| Surface Protection |
Voltage-resistant coating |
| Mounting Design |
Insulated screw holes |
| Communication Service |
Ethernet router |
| Compliance |
CE, UL/CUL 508 |
| HS Code |
8537101190 |
| Condition |
Brand New |
| Origin |
USA |
| System Compatibility |
DCS |
| Discontinued Status |
Active |
| Minimum Order Quantity |
1 |
| Lead Time |
In Stock |
Features & Benefits
-
The DS200LPPAG1A board includes seven configurable jumpers for flexible setup.
-
Two terminal blocks simplify wiring and improve connection stability.
-
Protective coating prevents surface voltage damage in high-risk environments.
-
Integrated test points allow quick diagnostics and maintenance checks.
-
Insulated mounting holes enhance safety during installation and operation.
