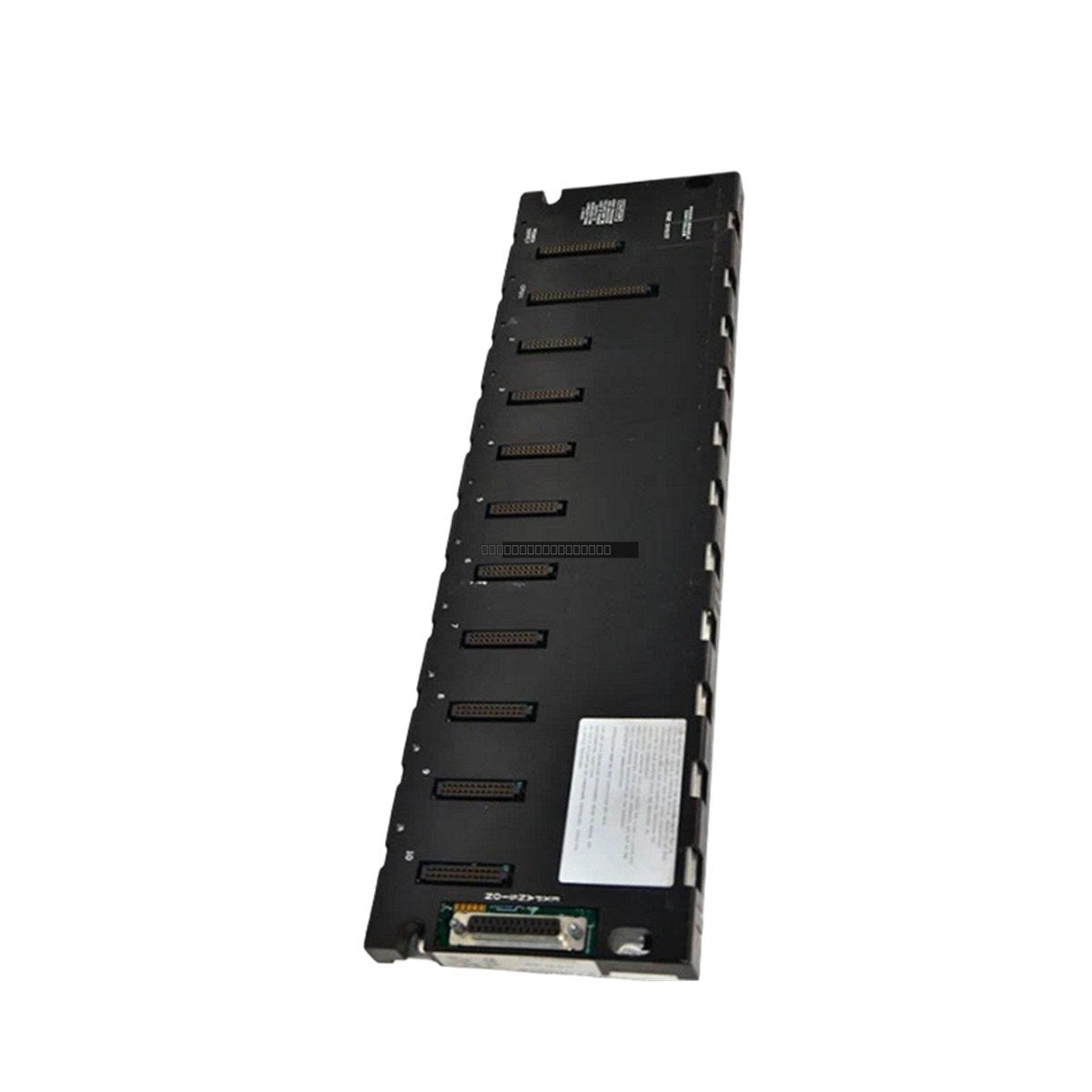

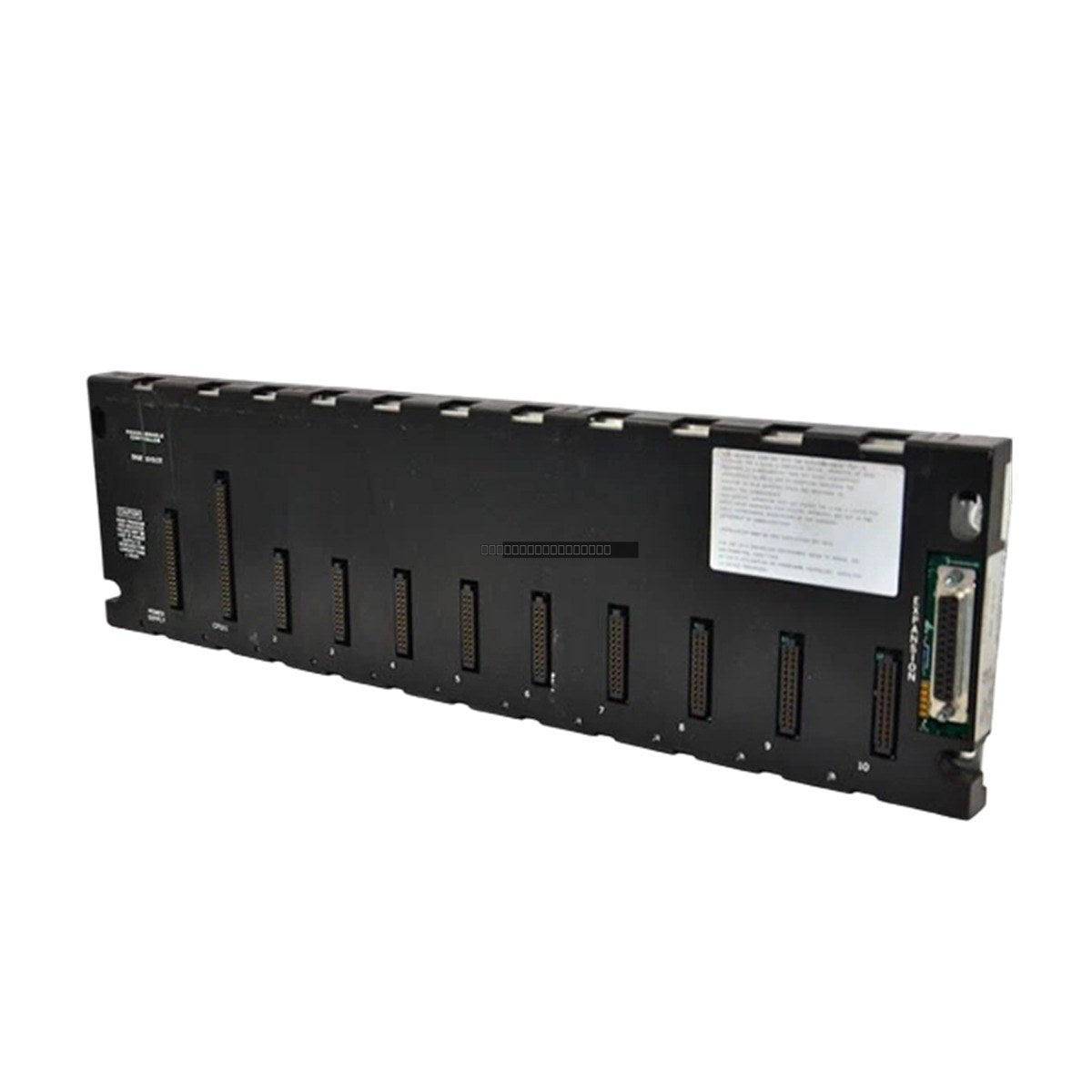

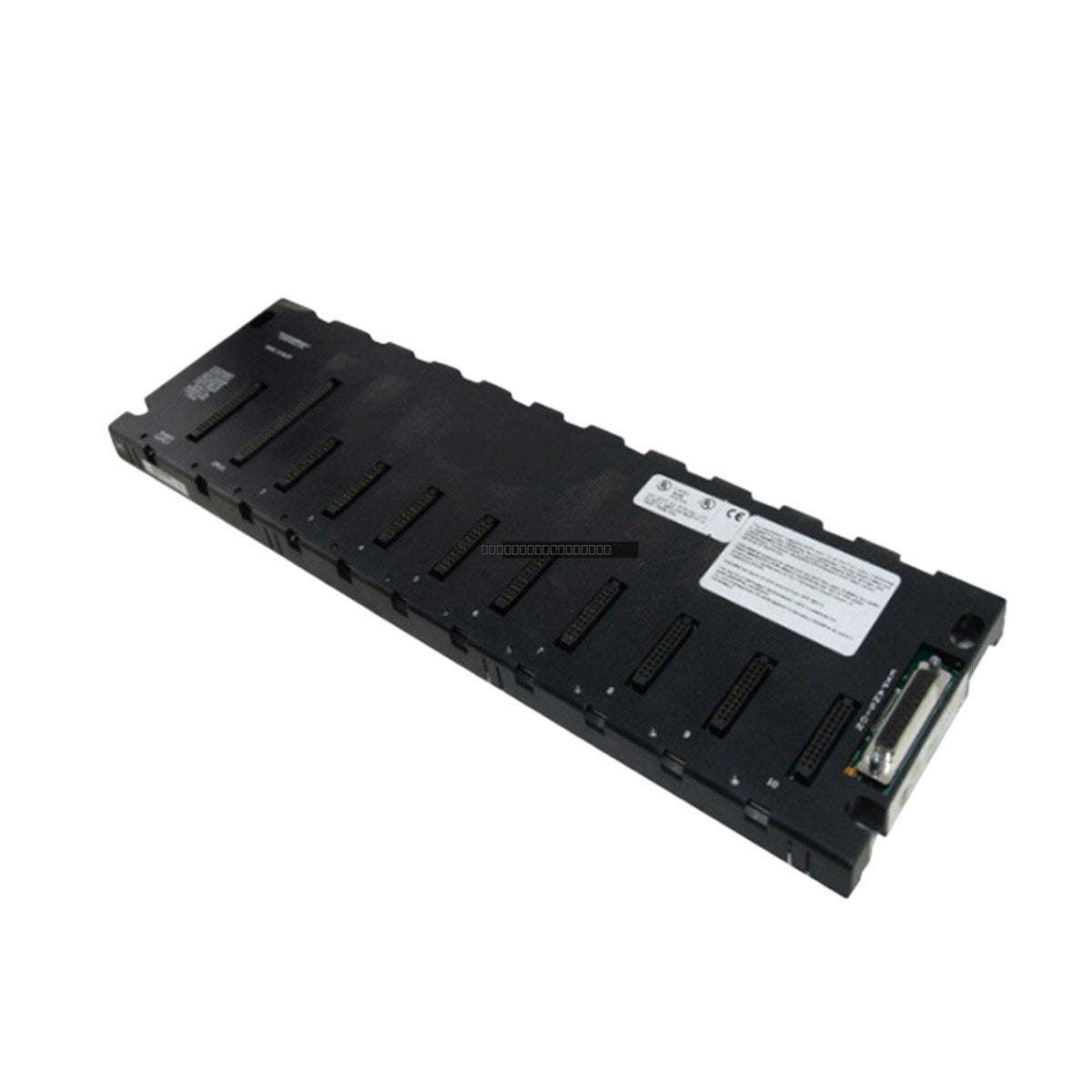

The GE Fanuc IC693CHS391C is a 10-slot modular baseplate designed for the Series 90-30 Programmable Logic Controller (PLC) system. This expansion baseplate provides the necessary physical mounting and electrical backplane connectivity for a CPU module, power supply, and various I/O or specialty modules. It serves as the foundational hardware component for expanding the I/O capacity of a Series 90-30 rack configuration.
Features
- Ten (10) total slots for system configuration.
- Dedicated slot for one (1) CPU module.
- Nine (9) slots available for I/O modules or specialty option modules.
- Integrated power supply module slot.
- 25-pin female connector for expansion cabling.
- Supports high-speed communication via PCI card interface.
Technical Specifications
| Model Number |
IC693CHS391C |
| Series |
Series 90-30 |
| Total Slots |
10 |
| CPU Slots |
1 |
| I/O Slots |
9 |
| Operating Voltage |
5 Volts DC |
| Current Draw |
420 mA |
| Connection Type |
25-Pin Female |
Installation Guidelines
- Ensure the PLC system is powered down before installing or removing any modules from the baseplate.
- Mount the baseplate securely on a flat, grounded metal surface to ensure proper EMI shielding and structural integrity.
- Handle modules by the edges to prevent electrostatic discharge (ESD) damage to the backplane pins.
- When inserting modules, ensure they are properly aligned with the card guides before applying pressure to seat them into the backplane connector.
- Maintain adequate clearance around the baseplate to allow for proper ventilation and cooling of the installed modules.
- Use shielded cables for expansion connections to minimize signal interference in high-noise industrial environments.
FAQ
What is the primary function of the IC693CHS391C baseplate?
This baseplate acts as the central communication and power distribution backplane for a GE Series 90-30 PLC system, allowing for the integration of a CPU and up to nine additional I/O or specialty modules.
Can this baseplate be used for remote I/O expansion?
Yes, the IC693CHS391C is designed to function as an expansion baseplate, allowing you to increase the total I/O count of your controller rack by connecting it to the main CPU rack via an expansion cable.
