Description

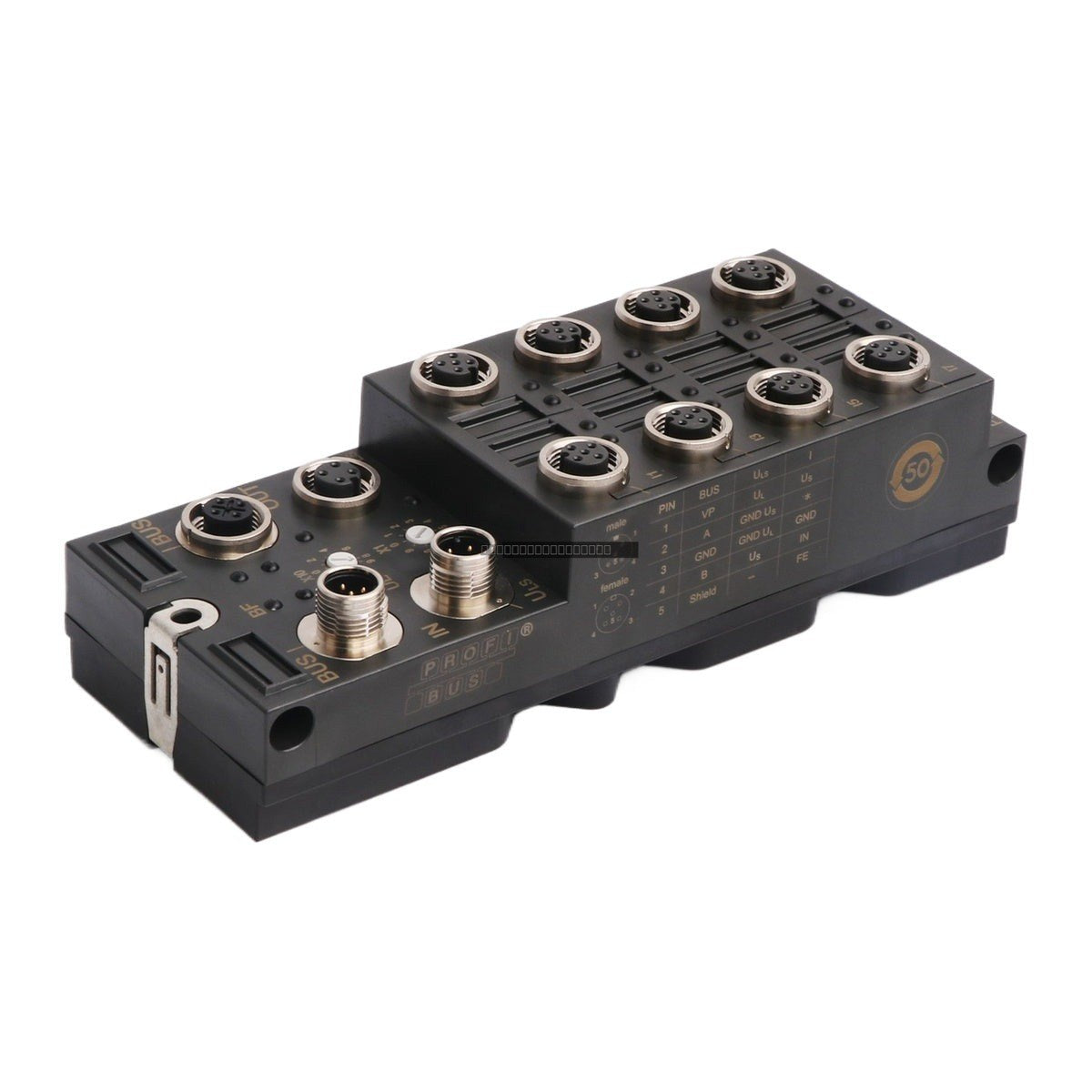

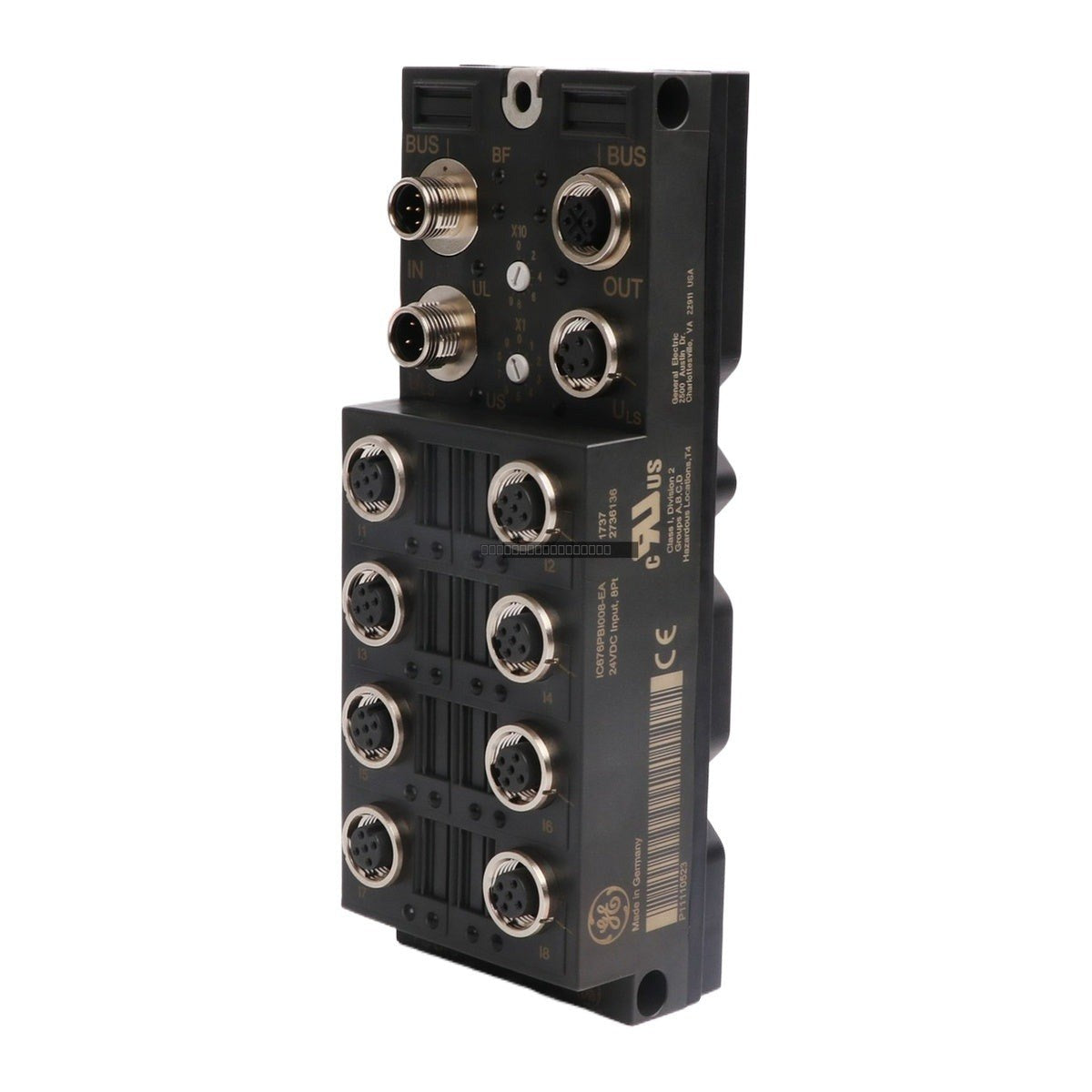

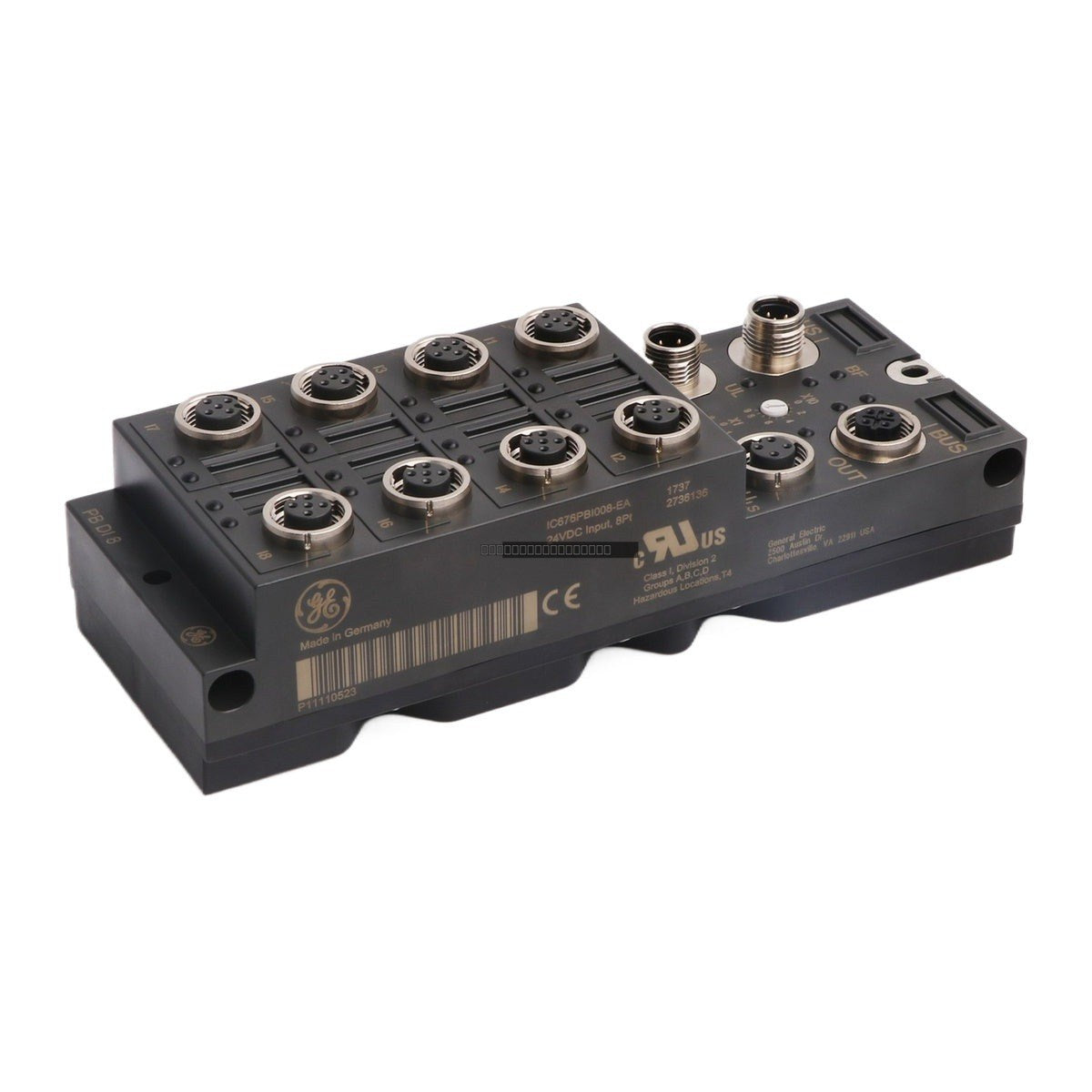

The IC676PBI008 is a ruggedized input block manufactured by General Electric, designed for distributed I/O applications in demanding industrial environments. This unit features an IP67-rated enclosure, providing protection against dust ingress and immersion in water, making it suitable for mounting directly on machinery or in areas where control cabinets are not feasible.
Features
- 8-point digital input configuration.
- 24 VDC positive logic input voltage.
- Integrated PROFIBUS communication interface for seamless integration with fieldbus networks.
- IP67-rated housing for high environmental durability.
- Compact design suitable for decentralized I/O architectures.
Applications
This input block is commonly utilized in automated manufacturing, material handling, and process control systems where remote I/O points are required to interface with sensors and switches in harsh, exposed conditions.
Technical Specifications
| Model |
IC676PBI008 |
| Manufacturer |
General Electric |
| Input Type |
24 VDC Positive Logic |
| Input Points |
8 |
| Protection Rating |
IP67 |
| Communication |
PROFIBUS |
| Weight |
0.36 kg |
Installation Guidelines
- Ensure the mounting surface is clean and level to maintain the integrity of the IP67 seal.
- Use appropriate M12 or industry-standard connectors to maintain environmental protection ratings on all I/O ports.
- Verify that the power supply is disconnected before wiring or servicing the unit.
- Route communication cables away from high-voltage power lines to minimize electromagnetic interference (EMI).
- Ensure the module is properly grounded to the machine frame or common ground bus to prevent noise-related signal errors.
FAQ
What does the IP67 rating signify for this module?
The IP67 rating indicates that the device is completely protected against dust and is capable of withstanding temporary immersion in water under defined conditions.
Is this module compatible with standard PROFIBUS networks?
Yes, the IC676PBI008 is designed to communicate via the PROFIBUS protocol, allowing it to function as a slave device within a larger control network.
