Description
Product Overview
The GE DS3820AIQA1A1A Analog Terminal Board belongs to the Mark IV Speedtronic series, designed for turbine control systems requiring precision and durability. Engineers value its 46.8x31.7x6cm dimensions and 3.3kg weight, which provide robust construction and reliable performance. This universal memory board integrates multiple diodes, resistors, and transistors to regulate energy flow and optimize signal control.
Technical Specifications
| Parameter |
Value |
| Model Number |
DS3820AIQA1A1A |
| Module Type |
Universal Memory Board |
| Manufacturer |
GE |
| Product Range |
Multilin |
| Condition |
Brand New |
| Dimensions |
46.8 × 31.7 × 6 cm |
| Weight |
3.3 kg |
| HS Code |
8537101190 |
| Minimum Order Quantity |
1 |
| Origin |
USA |
| System Compatibility |
DCS |
| Communication Service |
Ethernet Router |
| Status |
Active |
Functional Description

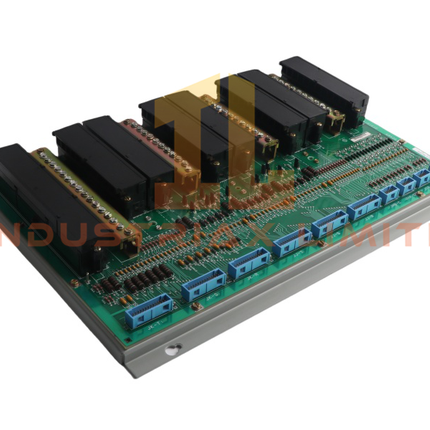

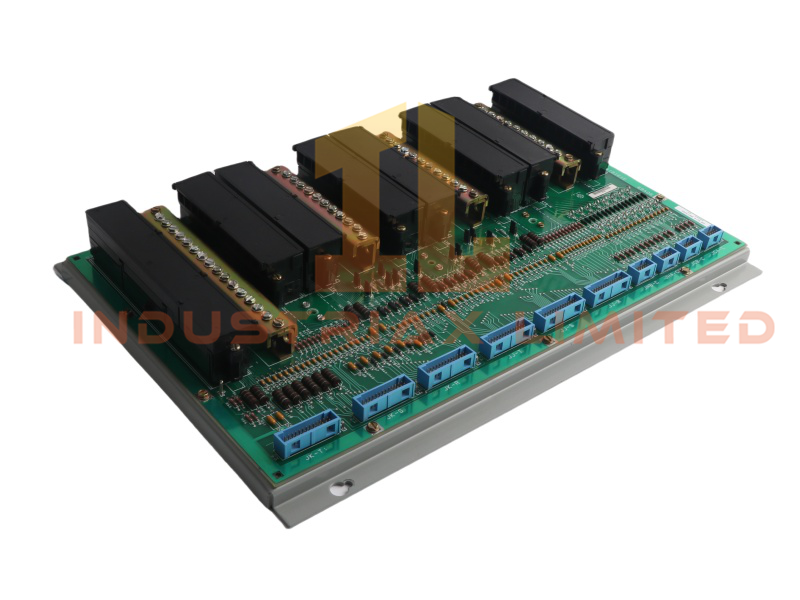

The DS3820AIQA1A1A features eight large black rectangles that stabilize its core functions. Four metal platforms support connectivity, with three holding twelve screws each and one containing seventeen screws. Eleven transistors amplify or modify signals, while thirty-two red diodes, sixteen yellow diodes, and sixty-five teal blue diodes regulate current flow.

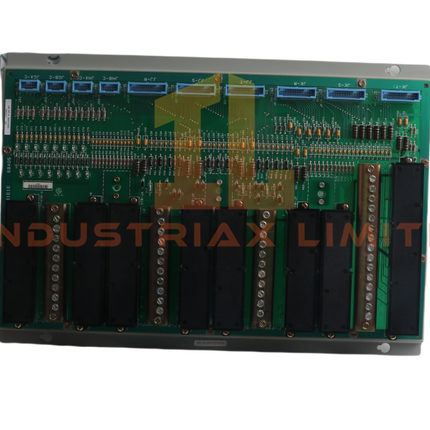

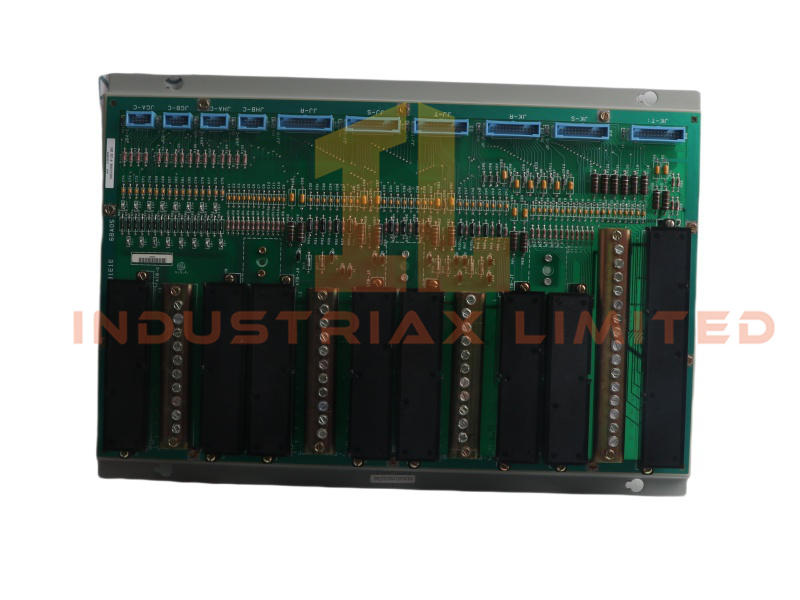

Four small blue male terminals with ten pins each and six larger terminals with twenty-six pins ensure seamless integration with adjacent boards. Sixty-five small resistors and sixteen large resistors, marked with color-coded rings, regulate energy distribution. These components guarantee stable operation in demanding industrial environments.
Applications and Compatibility
The GE DS3820AIQA1A1A Analog Terminal Board supports DCS systems across turbine control platforms. Engineers deploy it in gas and steam turbine plants requiring precise energy regulation and signal management. Its heavy-duty design ensures durability, while compatibility with the Mark IV Speedtronic series allows smooth integration into GE infrastructures.
The DS3820AIQA1A1A enhances turbine efficiency, stability, and long-term reliability, making it a critical component for industrial automation and energy management systems.
