Description
Product Overview

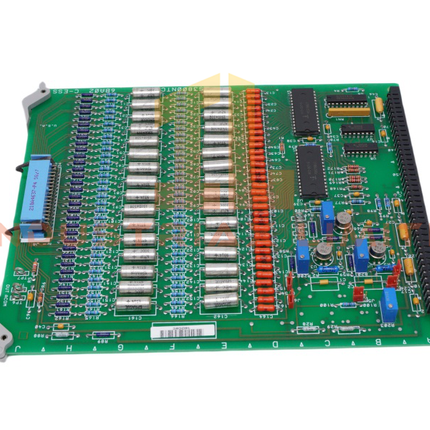

The GE DS3800NTCF1C1C Thermocouple Condition Card belongs to the Mark IV Speedtronic series, designed for precise turbine exhaust temperature regulation. Operators rely on its compact 19.2x1.7x23.4cm dimensions and lightweight 0.3kg build for efficient installation. This board integrates resistors, capacitors, potentiometers, and connectors to ensure stable voltage distribution and reliable turbine performance.
Technical Specifications
| Parameter |
Value |
| Model Number |
DS3800NTCF1C1C |
| Module Type |
Thermocouple Condition |
| Manufacturer |
GE |
| Product Range |
Multilin |
| Condition |
Brand New |
| Dimensions |
19.2 × 1.7 × 23.4 cm |
| Weight |
0.3 kg |
| HS Code |
8537101190 |
| Minimum Order Quantity |
1 |
| Origin |
USA |
| System Compatibility |
DCS |
| Communication Service |
Ethernet Router |
| Status |
Active |
Functional Description
The DS3800NTCF1C1C card measures turbine exhaust temperatures in real time and compares them against preset reference points. It generates command signals to maintain optimal combustion and turbine efficiency. The Mark IV system uses thirteen of these boards, and corrupted data from any card may affect performance.
Five jumper switches, one resistor network, and four potentiometers manage voltage distribution. Two PCB connectors—218A4637-P4 and 218A4553-1 Amp 533002-1—support integration with surrounding circuits. Metal film and carbon composite resistors regulate current flow, while polyester film and ceramic capacitors stabilize energy storage.
Alignment markings, factory drill points, and nylon extractor clips simplify installation and removal. A silver crystal oscillator ensures precise timing, while nearly one hundred resistors maintain consistent energy regulation.
Applications and Compatibility
The GE DS3800NTCF1C1C Thermocouple Condition Card supports DCS systems across industrial turbine platforms. Engineers deploy it in gas and steam turbine plants requiring accurate exhaust temperature monitoring. Its lightweight design and compact dimensions make it ideal for space-constrained installations.
Compatibility with the Mark IV Speedtronic series ensures seamless integration into GE turbine control systems. The DS3800NTCF1C1C enhances operational stability, efficiency, and long-term reliability, making it a critical component for legacy turbine maintenance.
