Description
Product Overview

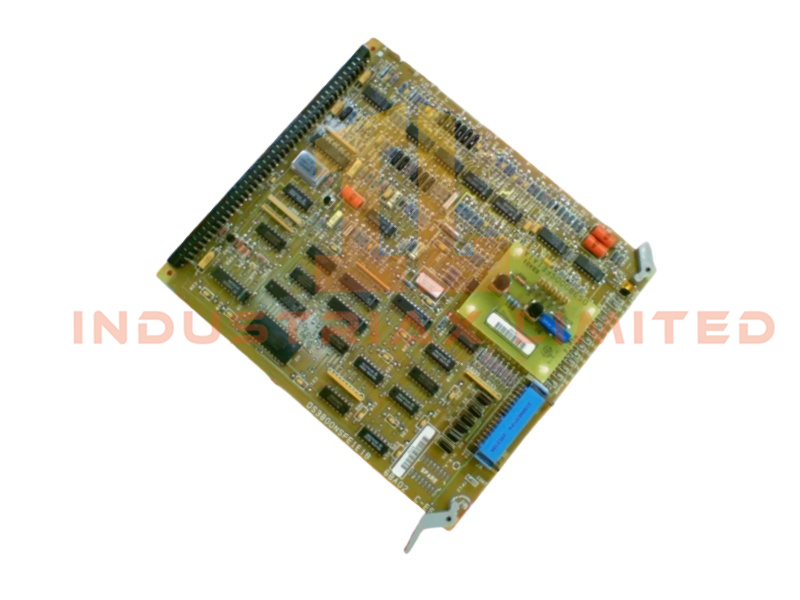

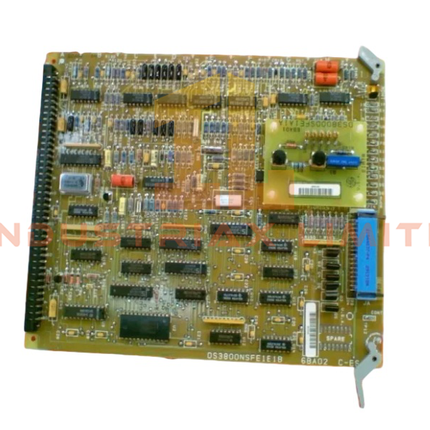

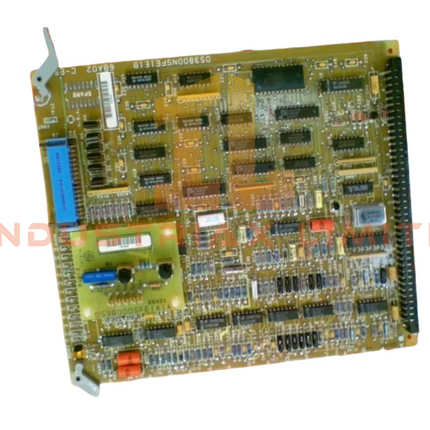

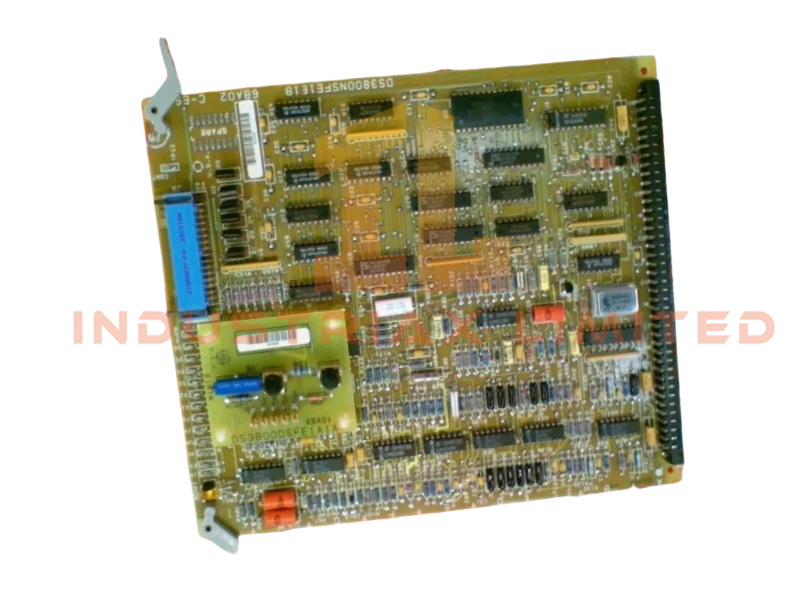

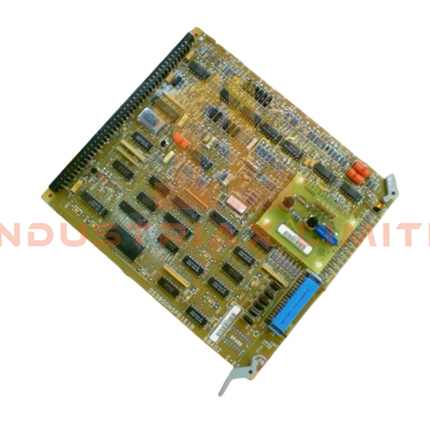

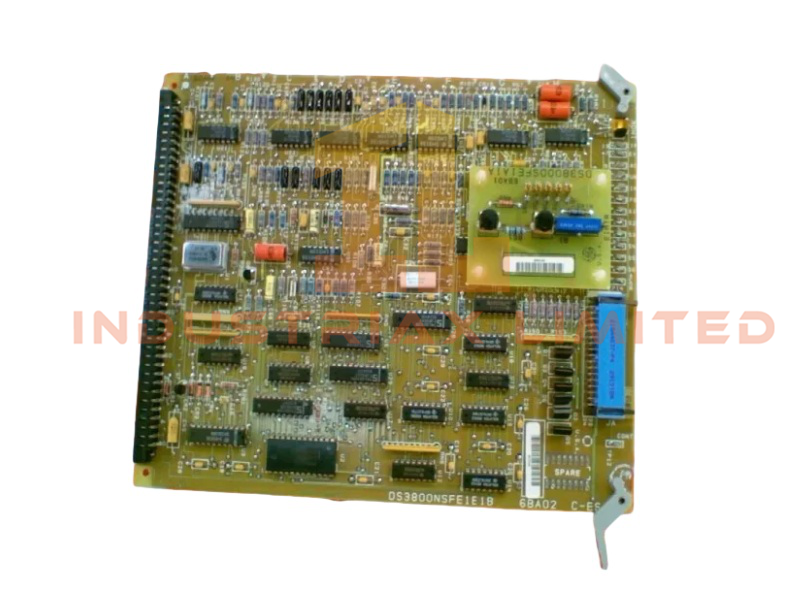

The General Electric DS3800NSFE1E1B Synch Field Exciter Module belongs to the Mark IV Speedtronic series. GE designed this module to regulate excitation field strength, ensuring stable voltage and reactive power control for synchronous generators. Operators benefit from precise voltage regulation, current limiting, and advanced diagnostic features.
Technical Specifications
| Parameter |
Value |
| Model Number |
DS3800NSFE1E1B |
| Module Type |
Synch Field Exciter |
| Manufacturer |
GE |
| Product Range |
Multilin |
| Condition |
Brand New |
| Dimensions |
23.8 × 17.7 × 4 cm |
| Weight |
0.34 kg |
| HS Code |
8537101190 |
| Minimum Order Quantity |
1 |
| Origin |
USA |
| System Compatibility |
DCS |
| Communication Service |
Ethernet Router |
| Status |
Active |
Functional Description
The DS3800NSFE1E1B module controls excitation fields to stabilize generator voltage output under varying loads. It manages reactive power flow, enabling absorption or supply as required. Integrated Automatic Voltage Regulation (AVR) ensures consistent voltage levels without manual intervention.
Protective functions include current limiting, overvoltage, and undervoltage safeguards. Operators gain remote monitoring capability, allowing adjustments from control centers. Synchronization features align generator frequency and phase with the grid before connection, preventing instability.
Applications and Compatibility
The DS3800NSFE1E1B Synch Field Exciter Module integrates seamlessly with GE Mark IV Speedtronic systems. It supports diverse synchronous generators across industrial power plants, gas turbine stations, and energy storage facilities. Engineers rely on its compact 23.8x17.7x4cm design and lightweight 0.34kg build for easy installation.
Its Ethernet router interface enhances communication within distributed control systems. Compatibility with DCS platforms ensures reliable integration into modern energy infrastructures.
