Description
Product Overview

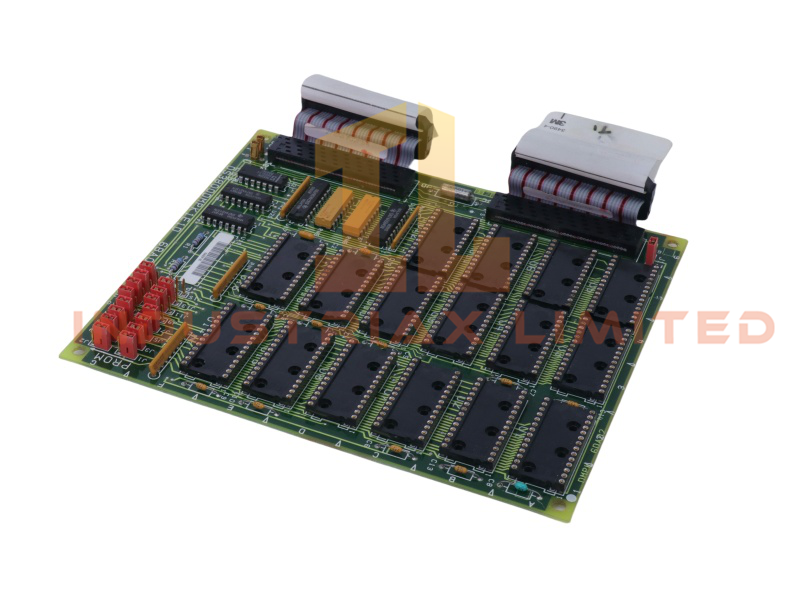

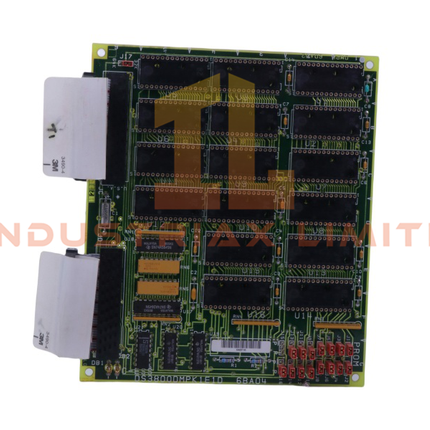

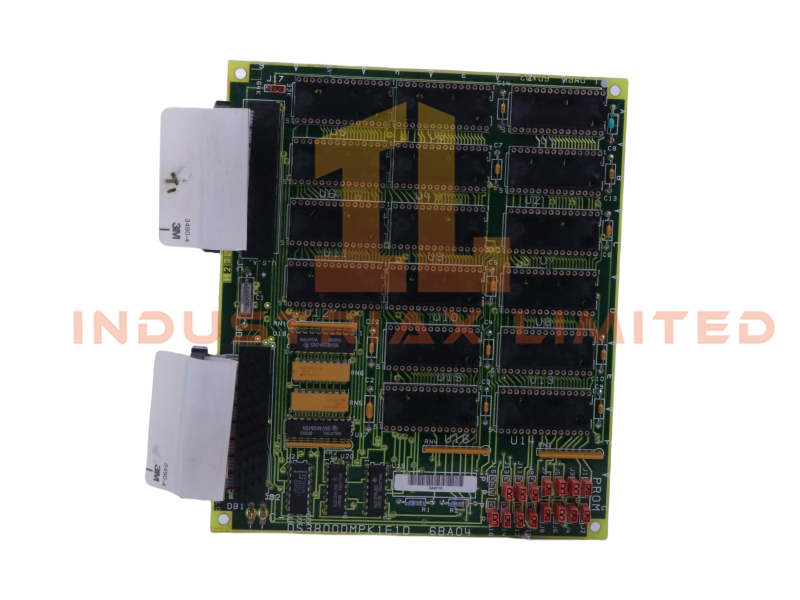

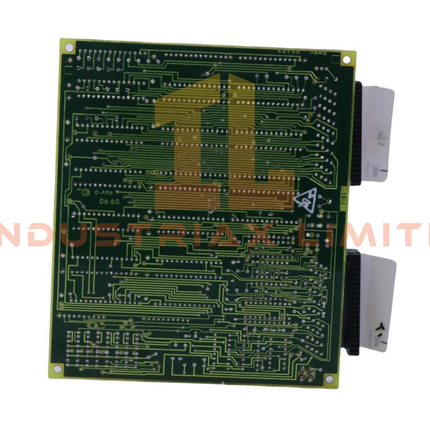

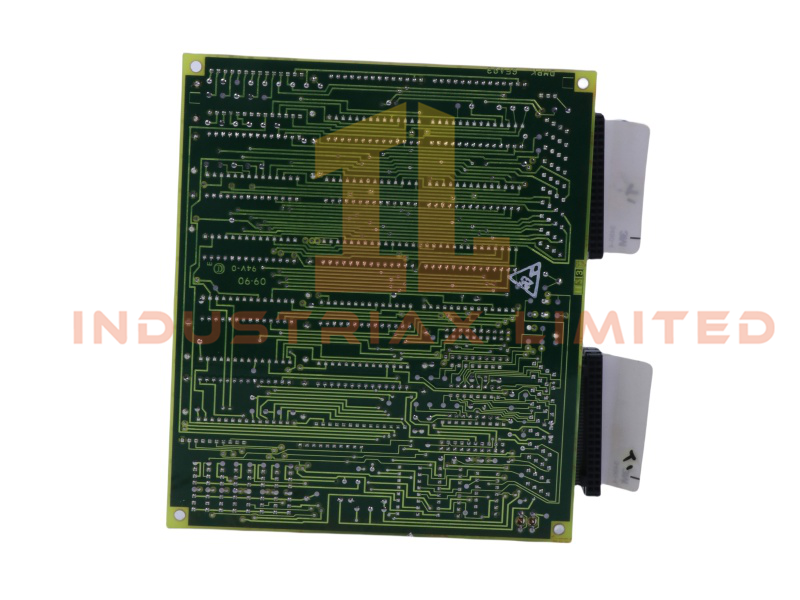

The GE DS3800DMPK1E1D Static Voltage Regulator Board belongs to the Mark IV Speedtronic turbine control system. Its compact 17.8x15.2x1cm dimensions and lightweight 0.22kg build simplify installation in industrial environments. Engineers value the DS3800DMPK1E1D for its EPROM-based customization, ribbon cable connections, and jumper configuration, ensuring reliable voltage regulation and efficient system performance.
Technical Specifications
| Parameter |
Value |
| Model Number |
DS3800DMPK1E1D |
| Module Type |
Static Voltage Regulator Board |
| Manufacturer |
GE |
| Product Range |
Multilin |
| Condition |
Brand New |
| Dimensions |
17.8 × 15.2 × 1 cm |
| Weight |
0.22 kg |
| HS Code |
8537101190 |
| Minimum Order Quantity |
1 |
| Origin |
USA |
| System Compatibility |
DCS |
| Communication Service |
Ethernet Router |
| Status |
Active |
Functional Description
The DS3800DMPK1E1D integrates 14 EPROM modules for firmware storage and customization. Two 34-pin ribbon cables, two single-pin connectors, and 17 jumpers provide essential connectivity and configuration options.
Operators can easily install or remove EPROM modules using dedicated sockets, ensuring smooth updates and maintenance. Jumper positions must be transferred accurately during replacement to maintain proper functionality. Protective fuses and static-safe handling procedures safeguard the board during installation.
Applications and Compatibility
The GE DS3800DMPK1E1D Static Voltage Regulator Board supports Mark IV Speedtronic turbine systems. Engineers deploy it in gas, steam, and industrial turbine environments requiring stable voltage regulation and customizable firmware management.
Its compact footprint and lightweight design make the DS3800DMPK1E1D ideal for installations where space efficiency matters. Compatibility with GE Multilin series infrastructures ensures reliable integration into industrial control systems, reinforcing its role as a dependable regulator solution.
