Description
Overview

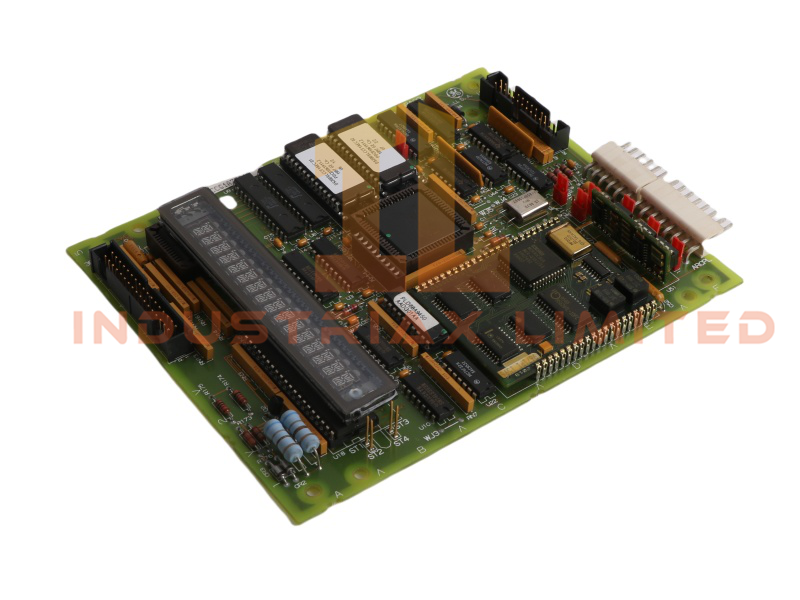

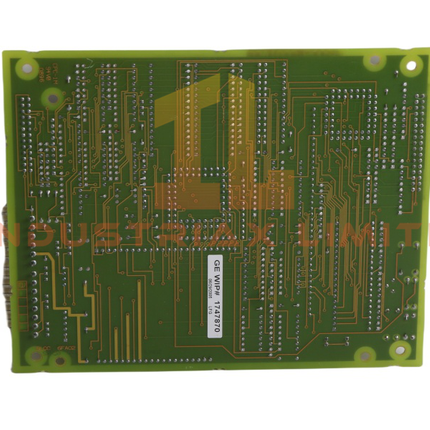

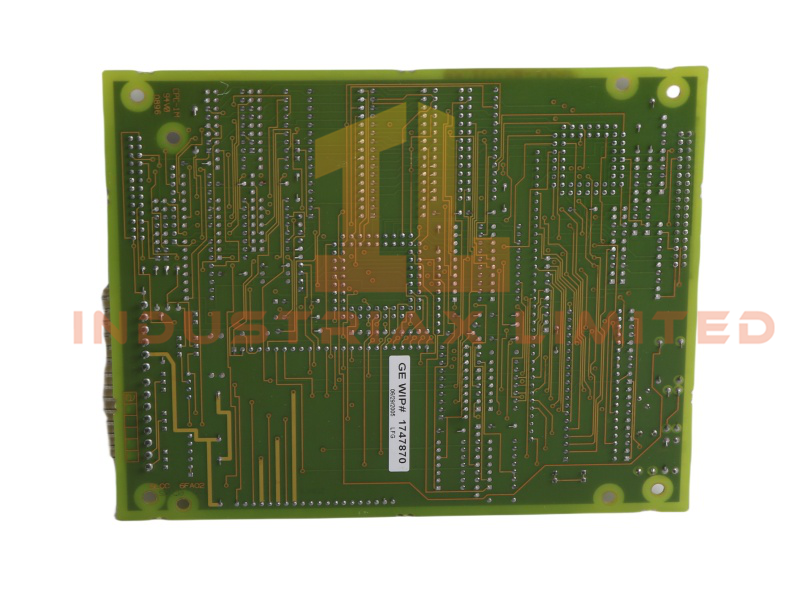

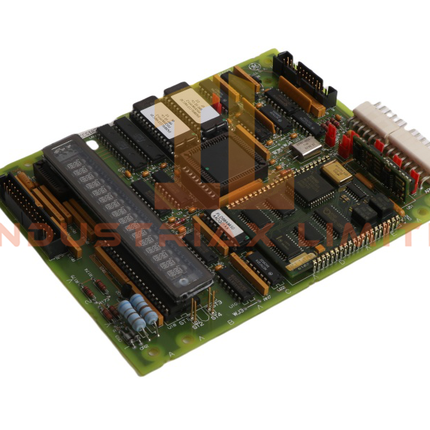

The DS215SLCCG1AZZ01A LAN communications card from General Electric is a key component in the Mark V Turbine Control System. It manages data exchange between drive systems and turbine controllers using DLAN and ARCNET protocols.
This compact board measures 18.8×14.2×2 cm and weighs 0.26 kg. The DS215SLCCG1AZZ01A includes a LAN control processor (LCP), dedicated RAM, and two EPROM slots for software updates. It supports both isolated and non-isolated circuits for flexible integration.
Technical Specifications
| Specification |
Details |
| Model Number |
DS215SLCCG1AZZ01A |
| Module Type |
LAN Communications Card |
| Manufacturer |
General Electric (GE) |
| Series |
Mark V / Multilin |
| System |
DCS |
| Dimensions |
18.8 × 14.2 × 2 cm |
| Weight |
0.26 kg |
| Processor |
LAN Control Processor (LCP) |
| Memory |
Dedicated RAM |
| EPROM Slots |
2 Replaceable |
| Protocols |
DLAN, ARCNET |
| Connection Points |
Power, Terminal Board, Drive I/O |
| Programming Slot |
KPPL |
| Circuit Type |
Isolated and Non-Isolated |
| Customization |
Hardware Configurable |
| Communication |
Ethernet Router |
| HS Code |
8537101190 |
| Lead Time |
In Stock |
| Minimum Order |
1 Unit |
| Origin |
USA |
| Status |
Active |
Features & Performance
-
The DS215SLCCG1AZZ01A supports real-time communication across turbine control networks.
-
EPROM slots allow easy firmware updates for the LAN processor.
-
RAM enables fast data exchange between LCP and drive control processors.
-
Multiple I/O terminals support flexible system integration and diagnostics.
Applications & Compatibility
The DS215SLCCG1AZZ01A integrates into GE Mark V turbine control systems for wind, steam, and gas turbines. It suits industrial automation tasks requiring reliable LAN communication and drive coordination.
Compatible with DLAN and ARCNET networks, the DS215SLCCG1AZZ01A enhances legacy Speedtronic systems with robust connectivity and programmable diagnostics.
