Description
Overview

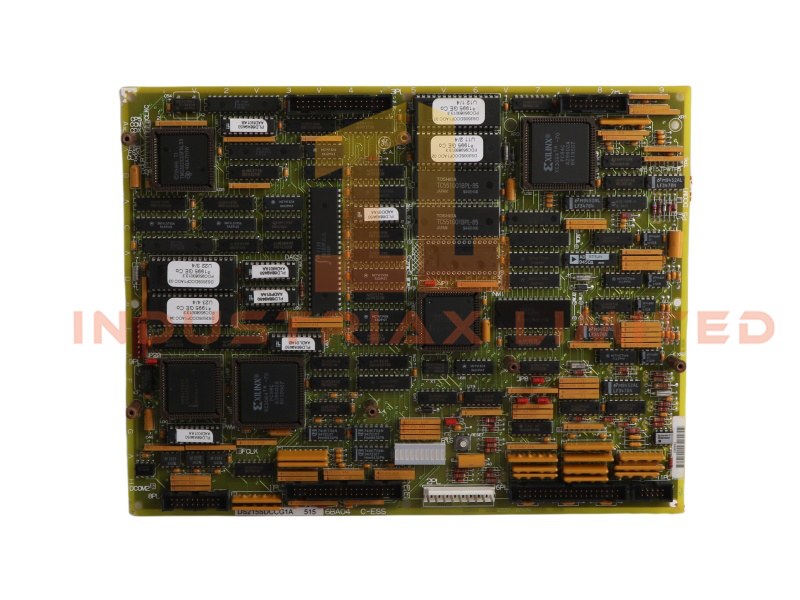

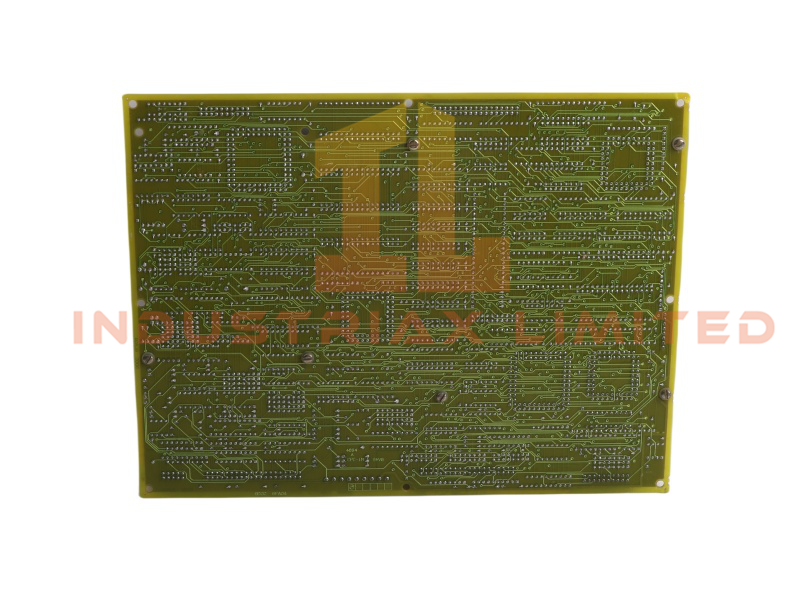

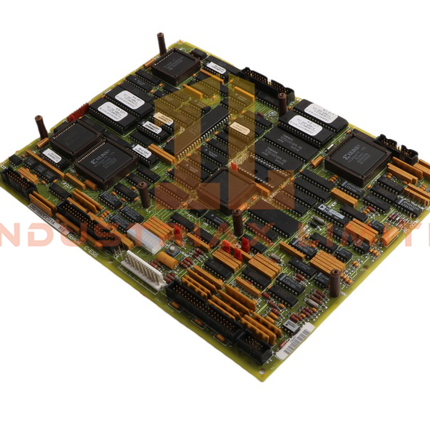

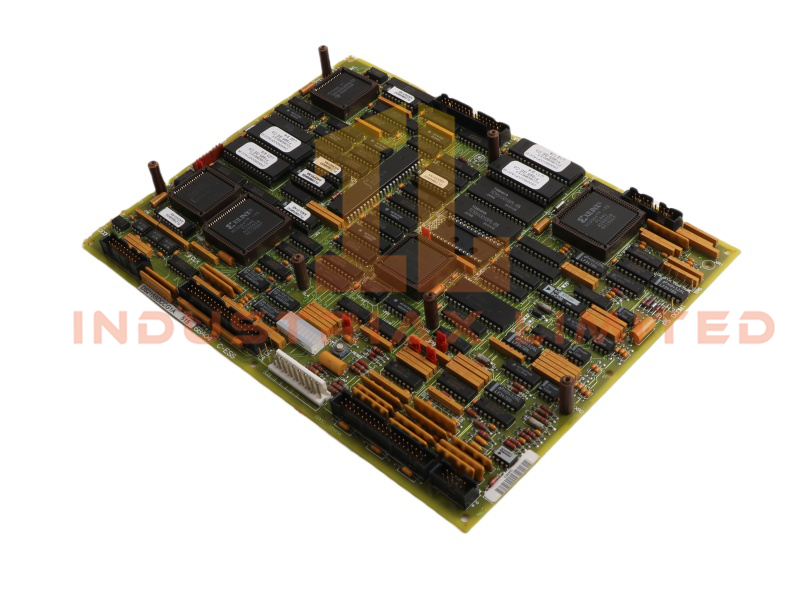

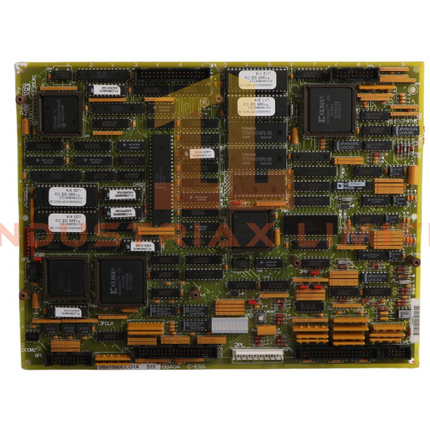

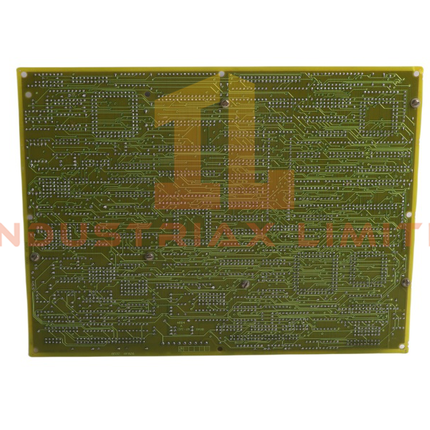

The DS215SDCCG1A drive control card from General Electric is a high-performance module used in the Mark V control system. It regulates AC and DC motor drives through integrated control circuits and system software. This board supports real-time communication across multiple interfaces and includes diagnostic tools for fault detection.
Measuring 27.8×21.2×2.8 cm and weighing 0.54 kg, the DS215SDCCG1A is built for industrial environments requiring precision motor control and reliable data exchange.
Technical Specifications
| Specification |
Details |
| Model Number |
DS215SDCCG1A |
| Module Type |
Drive Control Card |
| Manufacturer |
General Electric (GE) |
| Series |
Mark V / Multilin |
| System |
DCS |
| Dimensions |
27.8 × 21.2 × 2.8 cm |
| Weight |
0.54 kg |
| Microprocessors |
DCP, MCP, CMP |
| EPROMs |
4 Factory-Programmed (U11, U12, U22, U23) |
| EEPROM |
1 Field-Adjustable (U9) |
| LED Panel |
Binary/BCD Fault Display |
| Interfaces |
1PL (Power), 3PL (LAN), 6PL (Drive) |
| Communication |
Ethernet Router |
| HS Code |
8537101190 |
| Lead Time |
In Stock |
| Minimum Order |
1 Unit |
| Origin |
USA |
| Status |
Active |
Features & Performance
-
The DS215SDCCG1A uses three processors to manage I/O, motor control, and complex calculations.
-
Its EPROM and EEPROM configuration allows flexible software updates and system customization.
-
The onboard LED panel displays fault codes for quick troubleshooting and diagnostics.
-
Multiple interface ports support seamless integration with power supplies, LAN networks, and drive terminals.
Applications & Compatibility
The DS215SDCCG1A is compatible with GE AC2000, DC2000, and EX2000 drive systems. It suits industrial motor control applications requiring high-speed processing, fault monitoring, and programmable logic.
When replacing a Mark IV version, users must transfer onboard software to maintain system continuity. The DS215SDCCG1A supports hardware configuration and test points for efficient maintenance and system tuning.
