Description

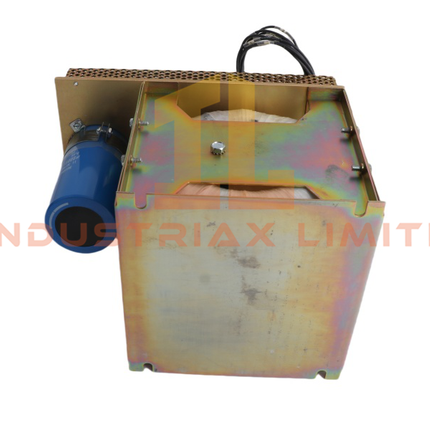

GE DS2020EXPSG3 Exciter Power Supply Board

The GE DS2020EXPSG3, also cataloged as the DS2020EXPSG3 Exciter Power Supply Board, operates as a dedicated hardware component for DC power conditioning and excitation control signal processing within GE EX2000 Excitation Control System platforms. The board provides regulated supply outputs, input channel processing, and current limiting functions for excitation control cabinet operation.

Hardware Specifications

Parameter	Specification
Model	DS2020EXPSG3
Brand	General Electric (GE)
Origin	United States
Weight	3 kg
Operating Temp	-40 deg C to +85 deg C
Power Consumption	+5 VDC @ 6 A
Product Type	Exciter Power Supply Board
Series	EX2000 Excitation Control System / Mark V
Input Voltage	12 VDC / 28 VDC system dependent
Output Voltage	125 VDC
Input Channels	12
Mounting Type	Chassis Mount
Technology	Surface Mount Technology (SMT)

GE Mark V Industrial Control Power Architecture

The DS2020EXPSG3 is designed for integration within GE Mark V and EX2000 control assemblies. The board handles DC power distribution functions required by excitation control hardware, including conditioned supply delivery and electrical signal interfaces. The current limiting function manages initial energization conditions from station battery sources to reduce transient loading during startup.

The module supports firmware flash compatibility considerations within the associated control platform, where revision matching between installed hardware and control system configuration is required. Backplane interface behavior is determined by the host EX2000 cabinet architecture and connected control modules.

Frequently Asked Questions

Q: What is the primary function of the DS2020EXPSG3 board?
A: The DS2020EXPSG3 functions as an Exciter Power Supply Board, providing DC power conditioning and excitation control related supply outputs within GE EX2000 systems.

Q: Does the DS2020EXPSG3 support chassis mounting installation?
A: Yes. The module is specified for chassis mount installation inside the associated GE control enclosure.

Q: What should be considered when replacing this board in an existing system?
A: Replacement should verify hardware compatibility, electrical connections, control system configuration, and firmware revision requirements before installation.

Field Installation Guidelines

Install the DS2020EXPSG3 only within the designated GE EX2000 or compatible Mark V control cabinet locations. Verify that cabinet power sources are isolated before removing or installing the board.

Maintain correct connector alignment during insertion and removal procedures. Avoid mechanical stress on PCB components and edge connectors.

Use appropriate industrial wiring practices for DC supply and signal conductors. Keep power wiring separated from high-noise switching circuits where applicable. Connect cable shields according to the cabinet grounding design to reduce electrical interference.

Confirm supply voltage levels, terminal identification, and system configuration before energizing the excitation control assembly.

Specifications

• Brand: General Electric

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
