Description
Overview

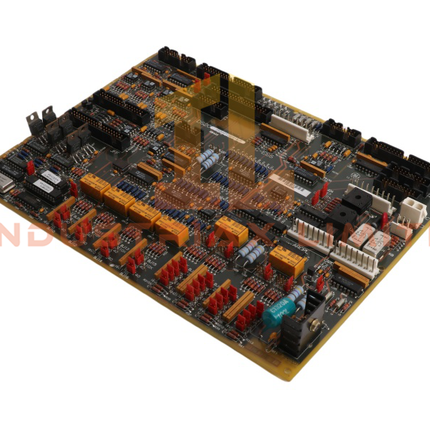

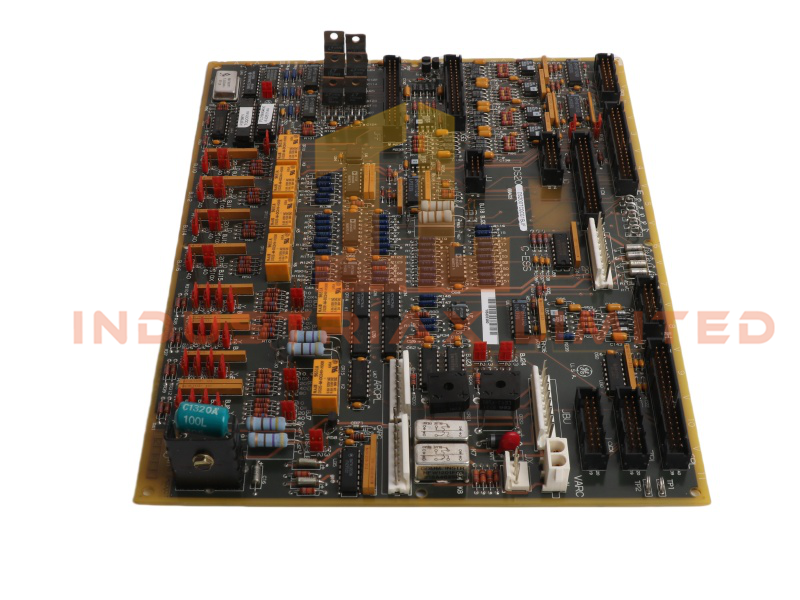

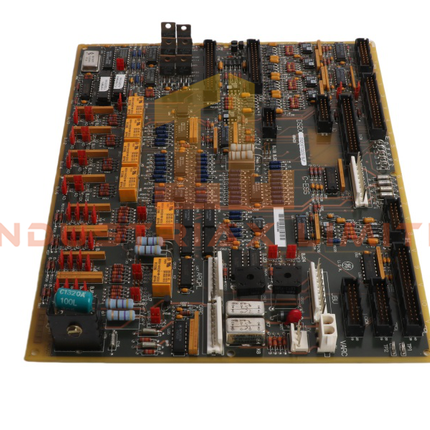

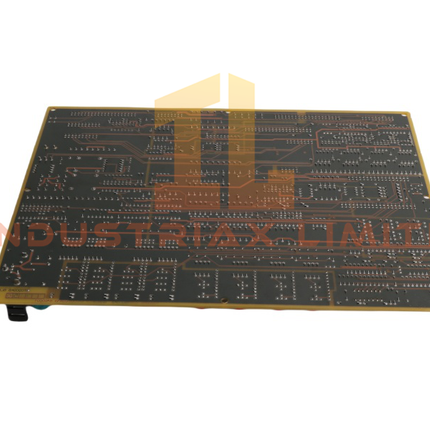

The DS200TCQCG1BJF analog I/O expander board from General Electric is a multifunctional circuit board used in the Mark V turbine control system. It expands analog input/output capabilities and supports critical signal routing and relay control functions.
This board measures 28×21.3×3.5 cm and weighs 0.44 kg. The DS200TCQCG1BJF includes 24 jumpers, 3 40-pin connectors, 3 34-pin connectors, and 1 16-pin connector, enabling flexible integration with other system components.
Technical Specifications
| Specification |
Details |
| Model Number |
DS200TCQCG1BJF |
| Module Type |
Analog IO Expander Board |
| Manufacturer |
General Electric (GE) |
| Series |
Multilin / Mark V |
| System |
DCS |
| Dimensions |
28 × 21.3 × 3.5 cm |
| Weight |
0.44 kg |
| Connectors |
3 × 40-pin, 3 × 34-pin, 1 × 16-pin |
| Connector IDs |
JFF, JE, 6PL, JC, JA, 1PL |
| Jumpers |
24 Configurable |
| Relays |
Soldered, Maintenance-Free |
| Cable Routing |
Ribbon Cables, 90° Separation Recommended |
| Product Revisions |
3 (Functionality, Performance, Durability) |
| Communication |
Ethernet Router |
| HS Code |
8537101190 |
| Lead Time |
In Stock |
| Minimum Order |
1 Unit |
| Origin |
USA |
| Status |
Active |
Features & Performance
-
The DS200TCQCG1BJF supports analog signal expansion and relay-based circuit activation.
-
Its jumper configuration allows flexible logic control and signal routing.
-
Ribbon cable connectors simplify integration with adjacent boards and subsystems.
-
Proper cable layout minimizes interference between signal and power lines.
Applications & Compatibility
The DS200TCQCG1BJF integrates into GE Mark V turbine control systems for analog I/O expansion and signal management. It suits applications requiring high-density connectivity, relay control, and modular diagnostics.
Compatible with Speedtronic architecture, the DS200TCQCG1BJF enhances system scalability and supports precise analog signal processing in industrial environments.
