Description

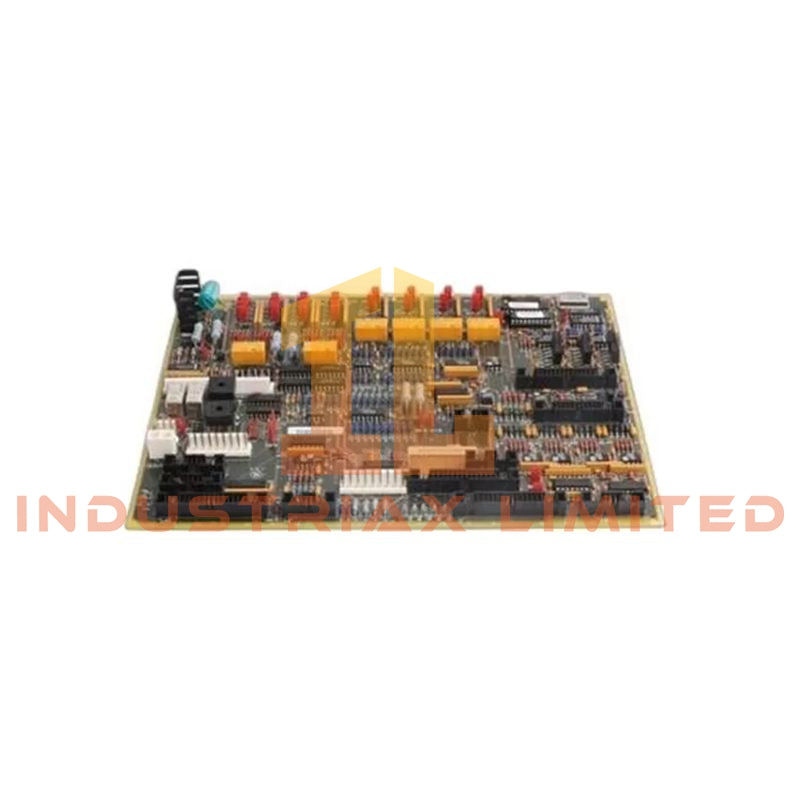

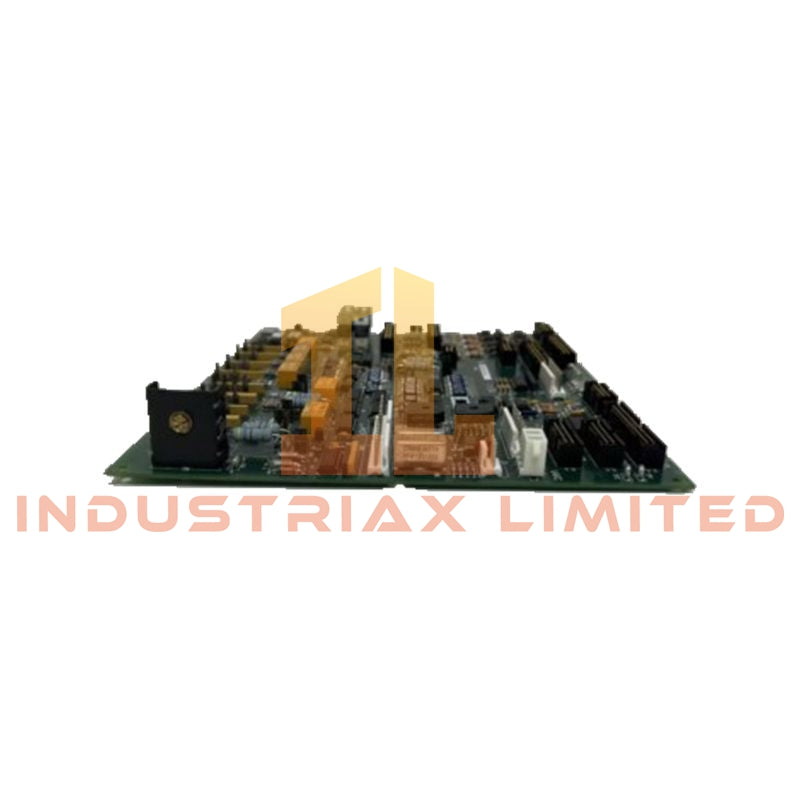

GE DS200TCQCG1A Mark V SpeedTronic Analog I/O Board

The GE DS200TCQCG1A, also cataloged as the DS200TCQC Analog I/O Board, operates as a dedicated hardware component for analog signal conditioning and field sensor interface within the GE Mark V SpeedTronic turbine control system.

Hardware Specifications

Parameter	Specification
Model	DS200TCQCG1A
Brand	General Electric (GE)
Origin	United States
Weight	0.3 kg
Operating Temp	-30 deg C to +65 deg C
Series	Mark V SpeedTronic
Board Type	Analog Input/Output Signal Processing Board
Signal Inputs	Thermocouples, RTDs (Pt100), 4-20 mA current loops, voltage inputs
Signal Outputs	Conditioned analog outputs and internal bus communication signals
Processor Interface	Ribbon cable connection to <R>, <S>, or <T> core controller modules
Configuration	Hardware jumpers for signal range, thermocouple grounding, and loop power settings
Connectors	Multi-pin ribbon cable headers, edge connectors, test points

Firmware Flash Compatibility and I/O Density Scaling

The DS200TCQCG1A provides analog signal processing functions within the Mark V SpeedTronic control architecture. The board conditions raw field signals from thermocouples, RTDs, vibration monitoring devices, and current loop transmitters before transfer to the controller processing cores. Hardware jumper configuration defines input signal ranges and field interface modes, supporting I/O density scaling within the assigned turbine control rack configuration. Internal bus communication is executed through the Mark V controller backplane interface structure.

Frequently Asked Questions

Q: What field signal types can be connected to the DS200TCQCG1A?
A: The board accepts analog field signals including thermocouples, RTDs (Pt100), 4-20 mA current loops, and voltage-based sensor inputs through configured input channels.

Q: Does the DS200TCQCG1A provide direct processor communication?
A: The board communicates with Mark V SpeedTronic controller cores through ribbon cable interfaces connected to the designated <R>, <S>, or <T> processing sections.

Q: Are signal ranges configured through software or hardware?
A: Signal range selection and certain field interface settings are configured through onboard hardware jumpers.

Field Installation Guidelines

Install the DS200TCQCG1A in the designated Mark V SpeedTronic control cabinet slot according to the system rack configuration. Verify ribbon cable alignment and connector seating before applying power.

Use shielded instrumentation wiring for analog field connections. Terminate cable shields according to the cabinet grounding practice to reduce electromagnetic interference. Maintain separation between low-level analog signal wiring and high-current power conductors.

Before operation, confirm jumper positions match the connected sensor types, including thermocouple grounding configuration, RTD input arrangement, and current loop requirements. Perform point-to-point signal verification after installation to confirm correct field scaling and controller recognition.

Specifications

• Brand: General Electric

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
