Description

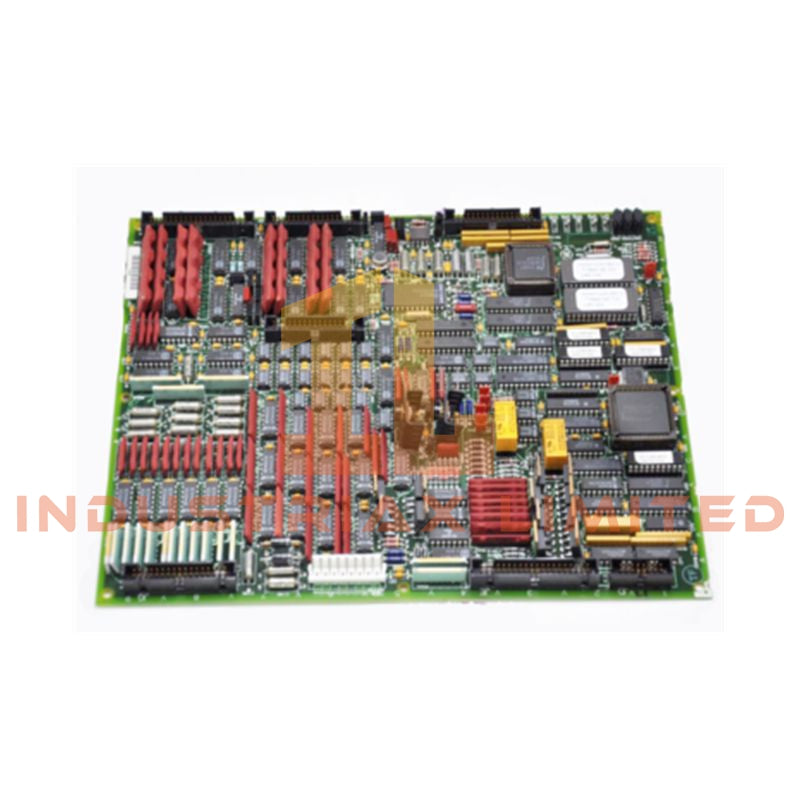

GE DS200TCQAG1A Mark V Analog I/O Board

The GE DS200TCQAG1A, also cataloged as the DS200TCQA Analog I/O Board, operates as a dedicated hardware component for analog signal acquisition and output control within the GE SPEEDTRONIC Mark V turbine control system. The board processes field feedback signals including 4-20 mA inputs, voltage signals, RTD, and thermocouple measurements through onboard signal conditioning and conversion circuits.

Hardware Specifications

Parameter	Specification
Model	DS200TCQAG1A
Brand	GE General Electric
Origin	United States
Weight	1 lbs
Operating Temp	0 deg C to +60 deg C
Series	SPEEDTRONIC Mark V
Product Type	Analog Input/Output Board
Signal Inputs	Thermocouple, RTD, 4-20 mA current loops, +/-10 V voltage inputs
Signal Outputs	4-20 mA analog outputs, servo positioning outputs
Signal Processing	A/D conversion with active hardware filtering
Installation Type	Plug-in card mounting within Mark V control rack/chassis
Hardware Connectors	Eight connectors
Configuration	Hardware jumpers and DIP switches
Diagnostics	Status LEDs for power, fault identification, and activity monitoring

Deterministic Network and I/O Processing Characteristics

The DS200TCQAG1A is designed for GE SPEEDTRONIC Mark V control architecture, where analog field signals are converted into digital control data for turbine sequencing and protection functions. The board incorporates onboard signal conditioning, isolated power regulation, and analog-to-digital conversion circuits to prepare sensor feedback signals for processor modules.

The module supports industrial control signal interfaces including 4-20 mA current loops and voltage-based analog measurements. Hardware configuration is performed through onboard jumpers and DIP switches, allowing adjustment of supported input and output ranges according to the connected field devices.

The Mark V platform uses dedicated control cores and rack-based communication paths. The TCQA board provides the required I/O density scaling within the turbine control chassis while maintaining compatibility with existing Mark V hardware configurations.

Frequently Asked Questions

Q: What type of signals can the DS200TCQAG1A process?
A: The board processes analog field signals including thermocouple, RTD, 4-20 mA current loops, and +/-10 V voltage inputs, with analog outputs available for control applications.

Q: Does the DS200TCQAG1A support standalone operation?
A: No. The board is designed as a plug-in I/O card for GE SPEEDTRONIC Mark V control racks and requires integration with the corresponding control core modules.

Q: How is the module configured for different field signal ranges?
A: Signal ranges are configured using onboard hardware jumpers and DIP switches. Configuration must match the connected sensor and control circuit requirements.

Field Installation Guidelines

Install the DS200TCQAG1A only in the designated GE SPEEDTRONIC Mark V rack or chassis slot. Verify rack power isolation before inserting or removing the board.

Use proper grounding practices for field signal wiring. Analog input cable shields should be terminated according to the control panel grounding scheme to minimize electrical noise coupling. Maintain separation between low-level analog signal wiring and high-energy power conductors.

Inspect connector alignment before installation and ensure all card-edge connections are fully seated. Confirm jumper and DIP switch settings before energizing the control system.

Follow GE Mark V control panel documentation, including the GEH-6353 instruction manual, for rack configuration, wiring references, and maintenance procedures.

Specifications

• Brand: General Electric

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
