Description
Product Overview

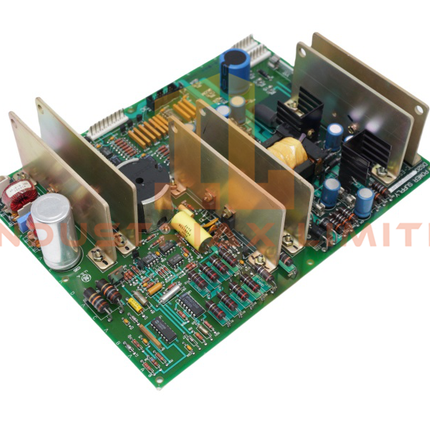

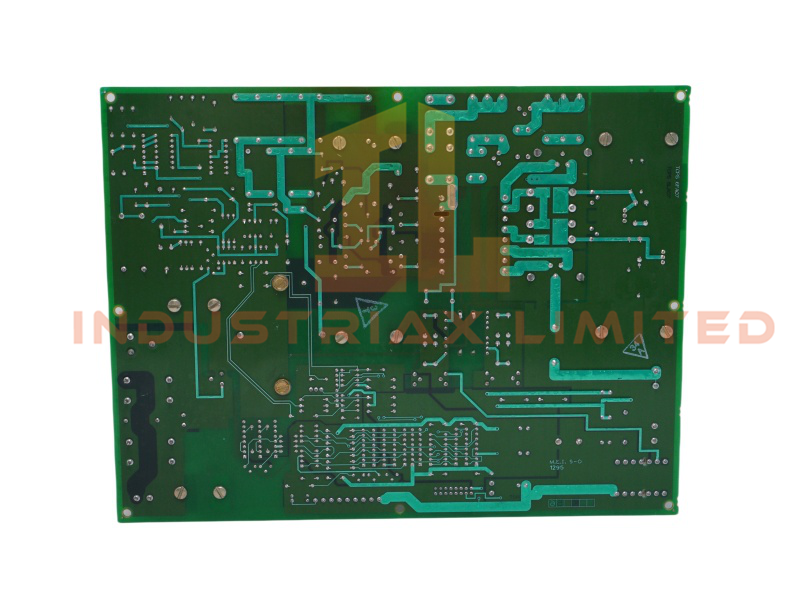

The DS200TCPSG1AME DC Input Power Supply Circuit Board from General Electric belongs to the Mark VIe Series. This PCB weighs 1.2 kg and measures 28 x 21.3 x 6.8 cm, making it suitable for turbine control systems. Engineers value its ability to convert 125 VDC into multiple voltages required for RTDs, servo valve outputs, and microprocessor supplies.
Technical Specifications
| Parameter |
Value |
| Model Number |
DS200TCPSG1AME |
| Module Type |
DC Input Power Supply Circuit Board |
| Manufacturer |
GE |
| Product Range |
Mark VIe / Mark V legacy |
| Condition |
Brand New |
| Weight |
1.2 kg |
| Dimensions |
28 x 21.3 x 6.8 cm |
| HS Code |
8537101190 |
| Minimum Order Quantity |
1 |
| Origin |
USA |
| System |
DCS |
| Status |
Active |
| Communication Service |
Ethernet router |
| Input Voltage |
125 VDC |
| Connectors |
J1, 2PL, JC, JP1, JP2 |
| Distribution Targets |
TCQC, TCCA, TCDA boards |
| Components |
Fuses, heat sinks, resistor arrays, transformers, inductors, MOVs |
| Test Points |
Multiple TP for diagnostics |
| PCB Coating |
Protective finish for durability |
Functional Description
The DS200TCPSG1AME board enhances turbine control systems by converting 125 VDC into stable voltages for critical subsystems. Engineers benefit from connectors such as J1 for power input and 2PL, JC, JP1, and JP2 for distribution to boards like TCQC, TCCA, and TCDA.
Protective fuses, heat sinks, resistor arrays, transformers, inductors, and MOVs safeguard against overloads and surges. Test points simplify diagnostics, while factory markings ensure authenticity. The DS200TCPSG1AME requires no hardware or software adjustments, streamlining installation and integration. Its protective coating guarantees long-term reliability in harsh environments.
Applications and Compatibility
The DS200TCPSG1AME DC Input Power Supply Circuit Board suits turbine control, excitation systems, and industrial automation requiring stable voltage conversion. It integrates seamlessly with GE Speedtronic Mark V and Mark VIe assemblies, ensuring compatibility across diverse environments. Engineers deploy it in power generation plants, heavy industry, and automation networks where reliable power distribution and diagnostic flexibility are essential.
