Description

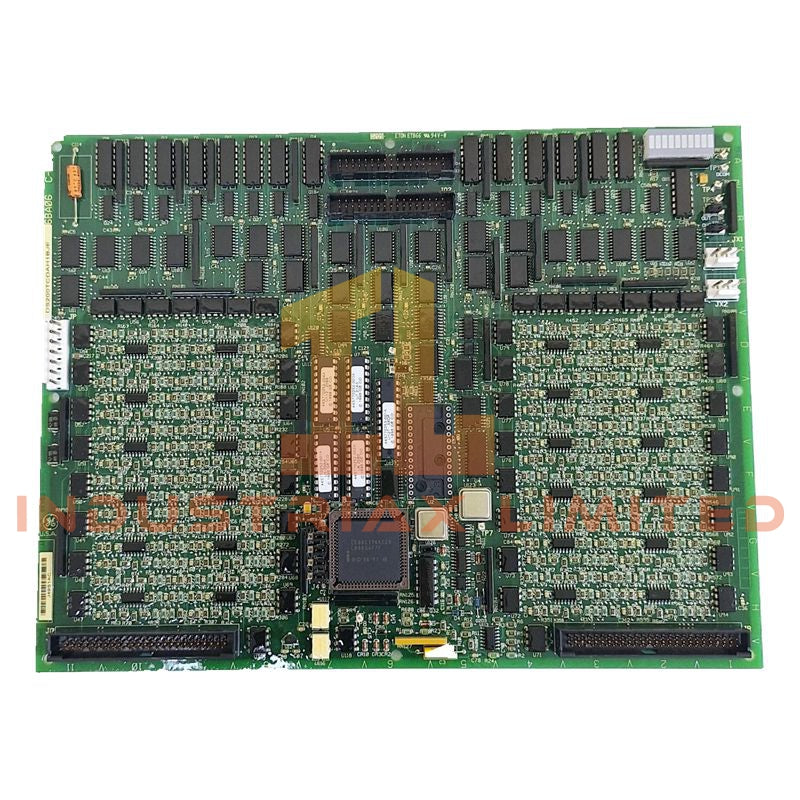

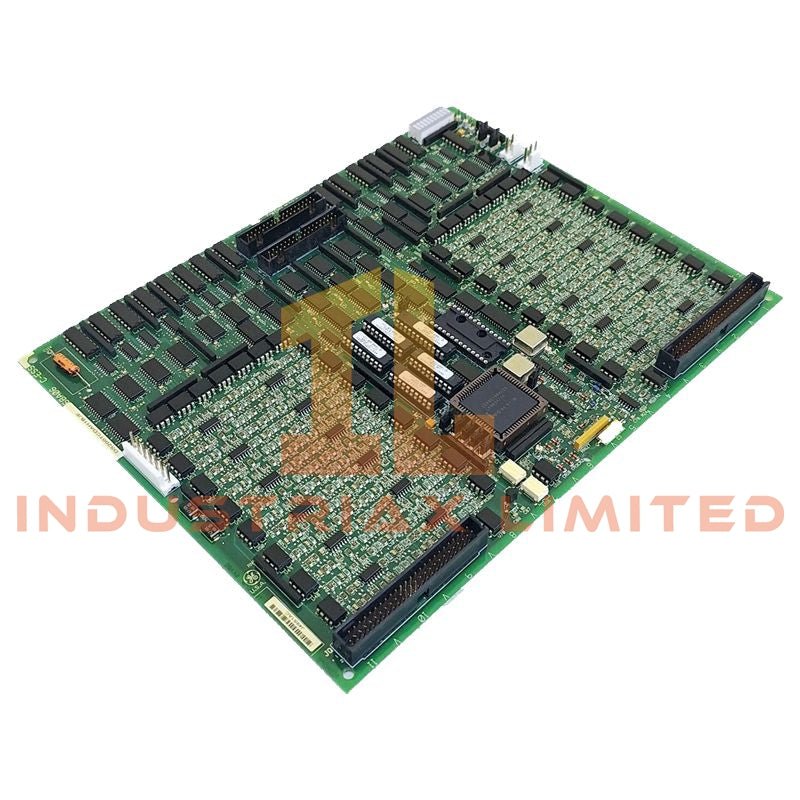

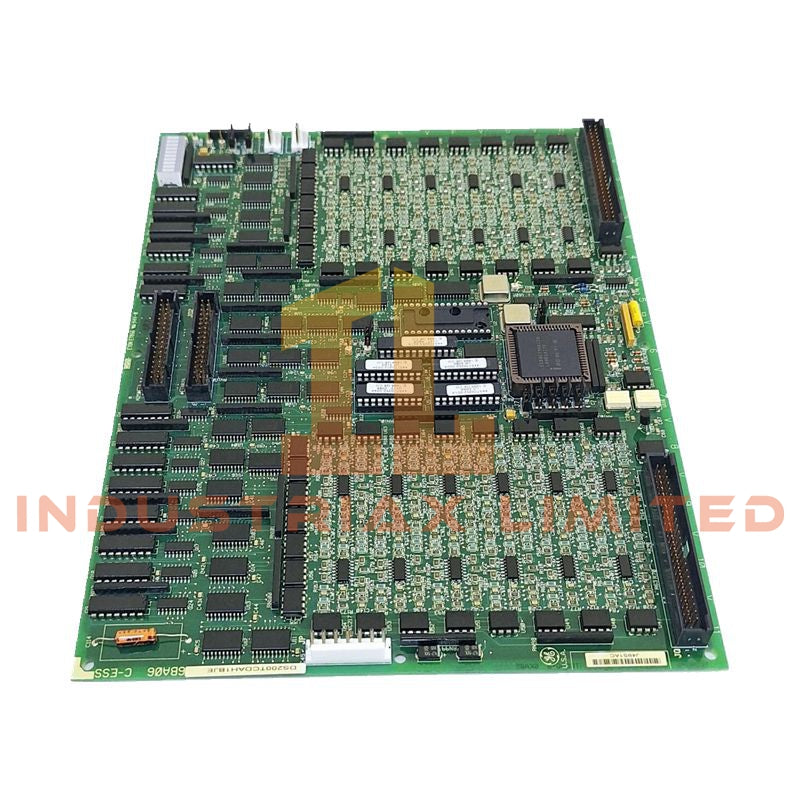

GE DS200TCDAH1BHD Digital I/O Interface Board

The GE DS200TCDAH1BHD, also cataloged as the DS200TCDA Digital I/O Interface Board, operates as a dedicated hardware component for discrete signal processing and relay interface execution within the GE Mark V Speedtronic control system. It handles dry contact inputs, relay output commands, optical isolation, and IONET backplane communication.

Hardware Specifications

Parameter	Specification
Model	DS200TCDAH1BHD
Brand	GE
Origin	United States
Weight	0.6 kg
Operating Temp	-40 deg C to +70 deg C operating; -55 deg C to +90 deg C storage
Power Consumption	Supplied through Mark V control rack backplane
Product Type	Digital I/O Interface Board
Functional Acronym	TCDA
Product Series	Mark V Speedtronic
Inputs	Dry contact signals, 24 VDC nominal, via DTBA/DTBB terminal boards
Outputs	Relay drive signals routed to TCRA boards
Connectors	Dual 50-pin IDC connectors (JQ/JR), JO1/JO2 outputs, JX1/JX2 IONET
Processor	Onboard microcontroller with PROM firmware
Isolation	Optical isolation, 2500 Vrms test
Channel Density	Approx. 32 channels, configurable as 16 inputs / 16 outputs
Diagnostics	10-LED status array for power, faults, and channel indications
Addressing	JP1-JP8 jumpers for IONET addressing, termination, and stall timer configuration
Accuracy	+/-0.10% at 25 deg C, +/-0.15% over full range for HD variant
PCB Coating	Conformal coating
Component Design	105 deg C capacitors and extended-temperature IC components

GE Mark V I/O Processing and IONET Communication

The DS200TCDAH1BHD provides digital signal acquisition and output interface functions within the Mark V Speedtronic architecture. The board processes field dry contact inputs from DTBA and DTBB terminal boards and generates relay drive signals for TCRA interface boards.

IONET communication is executed through the JX1/JX2 connectors, providing deterministic data exchange between the digital I/O board and Mark V controller processors. The onboard microcontroller performs local I/O scanning functions, reducing direct processing demand on the main controller.

Profinet / EtherNet/IP Deterministic Networks and Industrial Control Integration

The DS200TCDAH1BHD belongs to the GE Mark V industrial control platform and uses dedicated rack-level I/O communication rather than open Ethernet field networks. Its local firmware execution and IONET interface maintain deterministic digital signal timing for turbine interlock processing.

The high-density configuration supports I/O density scaling by increasing discrete channel capacity within the same board footprint. PROM-based firmware storage provides fixed execution parameters and supports firmware flash compatibility evaluation within the Mark V hardware revision structure.

Frequently Asked Questions (FAQ)

Q: What type of field signals can the DS200TCDAH1BHD process?
A: The board processes dry contact discrete input signals at 24 VDC nominal levels and provides relay drive outputs through connected TCRA boards.

Q: How is electrical separation between field wiring and the control backplane achieved?
A: The board uses optical isolation between field signal circuits and the backplane interface, with a 2500 Vrms isolation test rating.

Q: Can the DS200TCDAH1BHD be installed as a standard analog input module?
A: No. The DS200TCDAH1BHD is a digital I/O interface board designed for discrete signal processing in the Mark V Speedtronic system.

Field Installation Guidelines

Install the DS200TCDAH1BHD only in the designated GE Mark V Q11, Q51, or Q21 digital I/O core rack position. Verify connector alignment for JQ/JR, JO1/JO2, and JX1/JX2 interfaces before insertion.

Maintain separation between low-level digital signal wiring and high-current switching conductors. Use shielded cables where required by the cabinet grounding design and terminate cable shields according to the control panel grounding practice.

Before operation, verify IONET addressing jumper settings, termination configuration, power rail connections, and LED diagnostic status. Confirm that all field input circuits and relay output paths match the configured turbine control logic.
