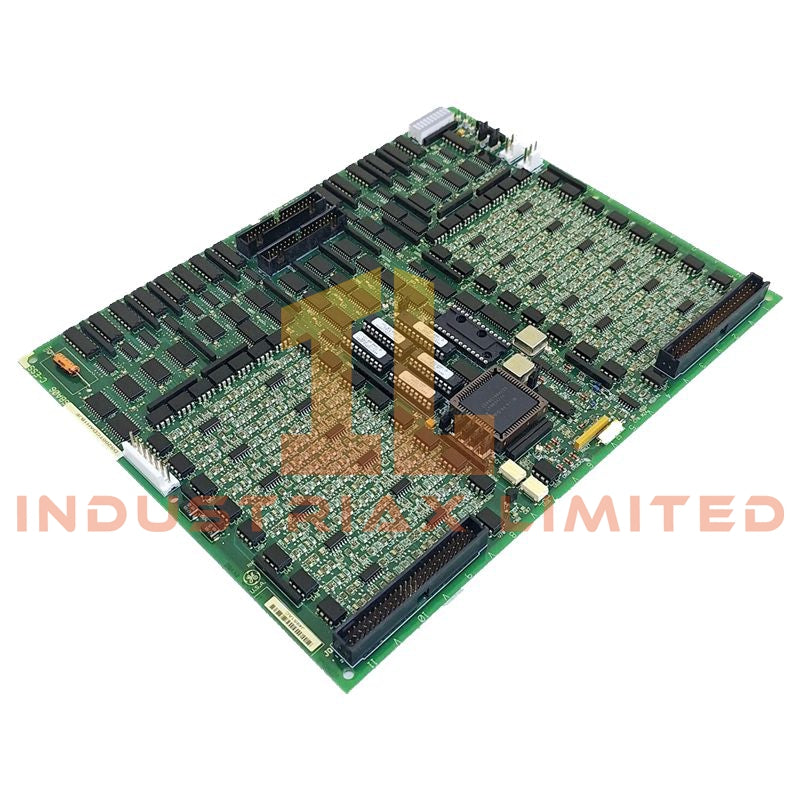

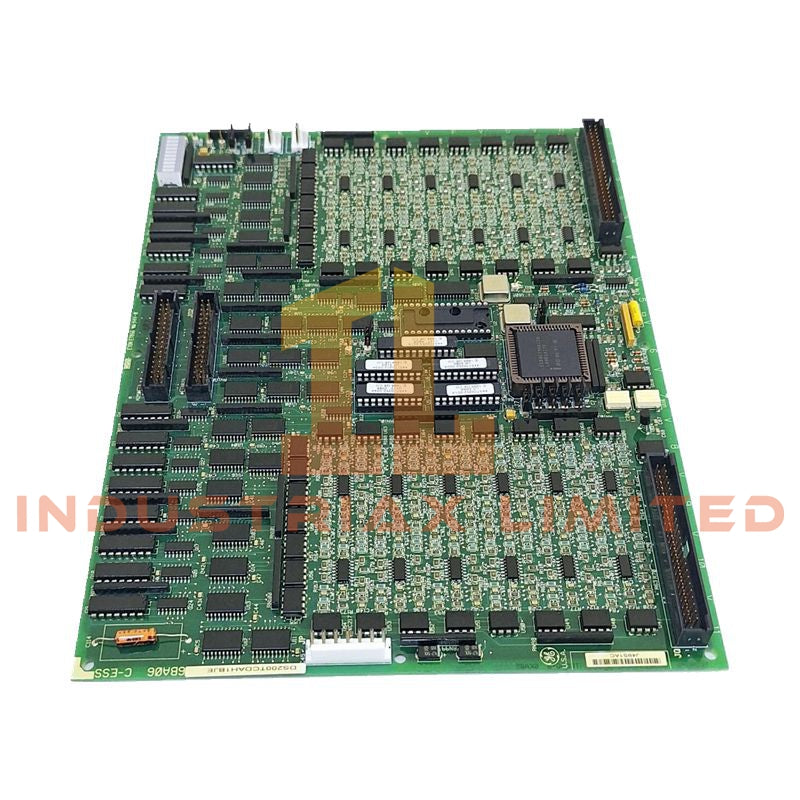

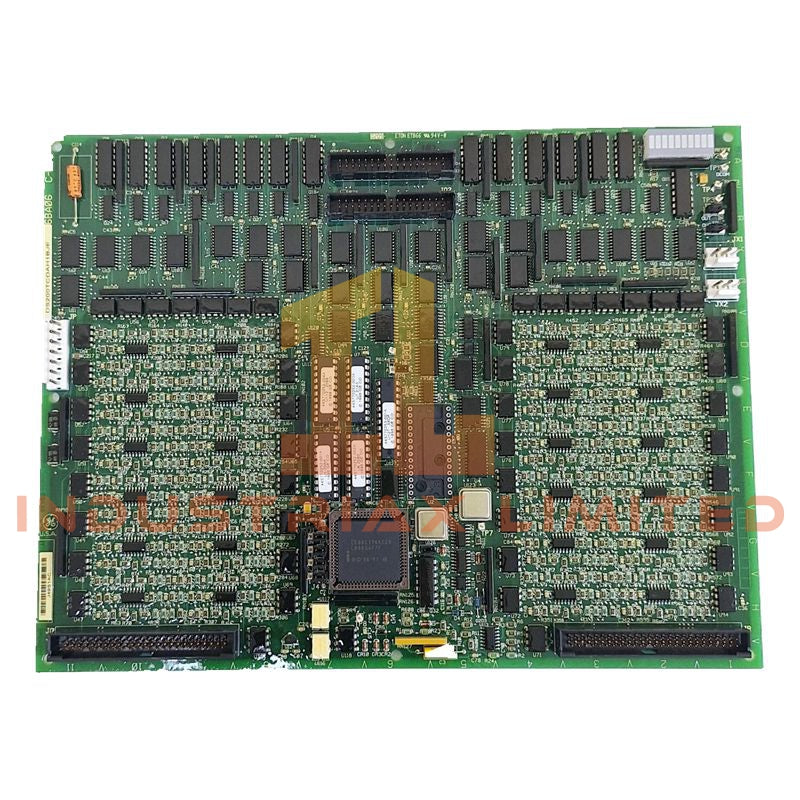

GE DS200TCDAH1B Mark V Digital I/O Board

Configured for discrete signal interfacing and isolated loop monitoring in the Mark V Speedtronic network, the GE DS200TCDAH1B (DS200TCDA Digital I/O Board) provides direct physical/electrical execution. It handles 16 optically isolated input channels and 16 output relay drive channels, utilizing an onboard microprocessor with PROM firmware for input debouncing, output conditioning, and proprietary IONET data transmission to the TCQC controller cores.

Suffix Breakdown & Model Matrix

The part number nomenclature defines specific hardware configurations for field deployment:

• DS200: Base board assembly designation for Mark V modules
• TCDA: Digital I/O board functional acronym
• H: Conformal coating applied to the PCB for harsh environments
• 1: Functional revision 1
• B: Hardware/Artwork revision B

Hardware Specifications

Parameter	Specification
Model	DS200TCDAH1B
Brand	General Electric (GE)
Origin	Factory Standard
Weight	0.23 kg
Dimensions	178 x 101 x 30 mm
Operating Temp	-20 deg C to +60 deg C
Storage Temp	-40 deg C to +85 deg C
Power Consumption	Dependent on host backplane load
Inputs	16 digital channels, dry contact (24 VDC nominal)
Outputs	16 digital channels, relay drive (up to 500 mA)
Isolation Rating	Optical isolation, 2500 Vrms test
Connectors	Dual 50-pin IDC (JQ/JR), JO1/JO2 outputs, JX1/JX2 IONET
Configuration	8 hardware jumpers (JP1 to JP8)
Indicators	10 LED status blocks + 1 system LED
PCB Protection	Conformal coating (H-suffix)

Backplane Bus Communication Velocity & I/O Density Scaling

The module leverages deterministic backplane bus communication velocity through the proprietary IONET architecture, ensuring synchronized data transfer with the TCQC processor matrix. Firmware flash compatibility is governed by the physical PROM chips socketed on the PCB; operational logic upgrades require physical PROM replacement rather than network-based flashing. I/O density scaling is fixed at 16 inputs and 16 outputs per module, mapped directly to the Q11, Q21, or Q51 Mark V core memory registers without localized protocol conversion latencies.

Frequently Asked Questions

Q: What are the primary termination points for the IONET communication on this module?

A: The module interfaces with the IONET network via dual 50-pin IDC connectors designated as JX1 and JX2 on the printed circuit board.

Q: How are address and termination settings handled during hardware replacement?

A: Hardware configuration utilizes 8 manual jumpers (JP1 through JP8). These jumpers dictate network addressing, termination resistance, stall timer parameters, and test mode activation. They must be physically mapped to match the legacy board exactly before chassis insertion.

Q: Does the DS200TCDAH1B support live hot-swapping within an active Mark V core?

A: Standard field practice requires powering down the respective control core (Q11, Q21, or Q51) prior to removal or insertion to prevent backplane bus faults or electrical surges through the primary JQ and JR header blocks.

Field Installation Guidelines

• Verify core power is completely isolated before engaging the base frame or manipulating internal cables.
• Seat the dual 50-pin IDC connectors (JQ and JR) evenly with equal pressure to avoid pin bending or improper contact with the backplane traces.
• Transfer all jumper settings (JP1 to JP8) from the removed board prior to installation. Visually validate stall timer and termination states against site specific documentation.
• Ensure shield drains for field wiring are landed on the designated chassis grounding bars, maintaining strict galvanic separation from the 24 VDC logic power rails.
• Observe the 10-LED diagnostic array upon initial power-up. The primary system run/fault LED must stabilize in its normal operating state before putting the turbine control loop back into active service.
