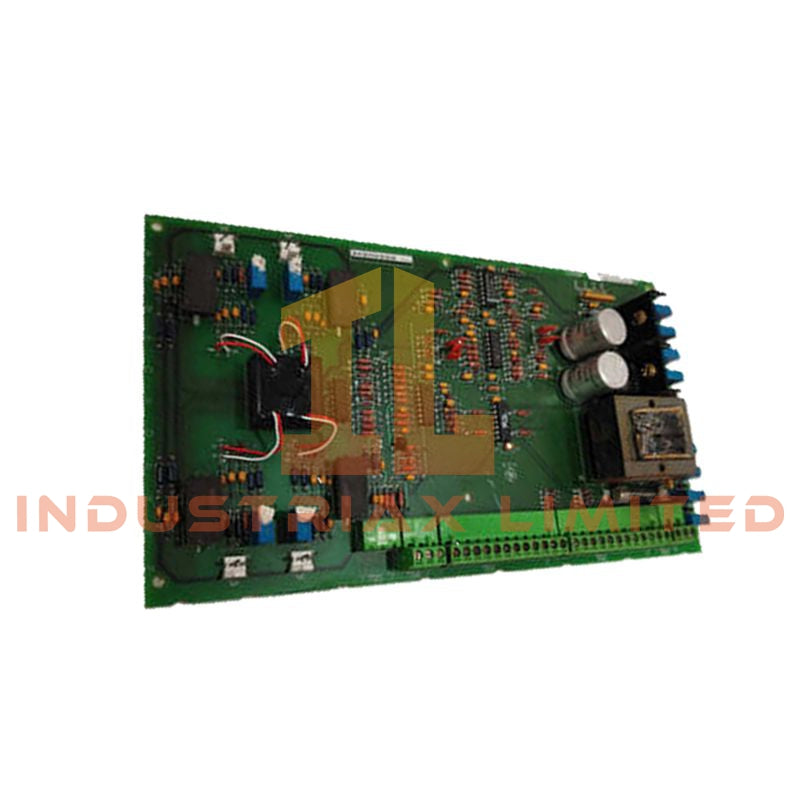

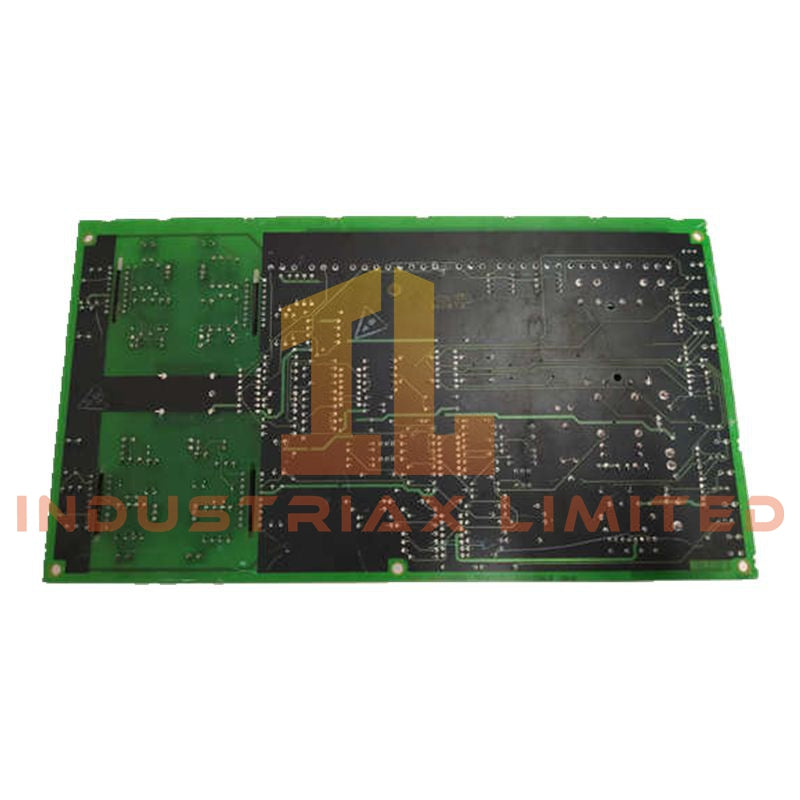

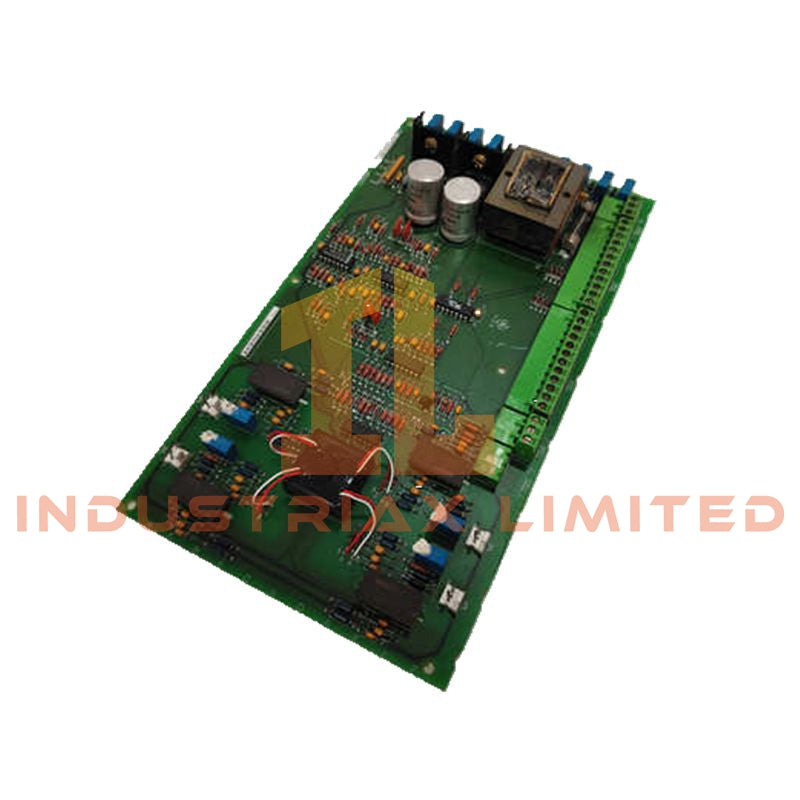

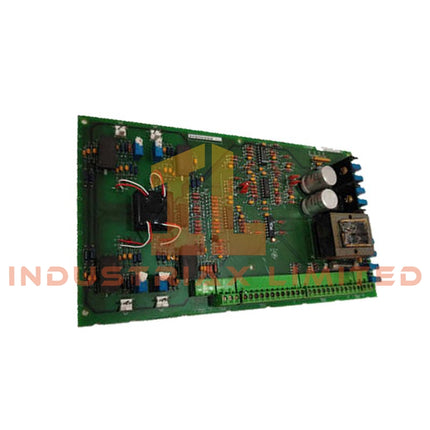

GE DS200SIOBH1ABA Mark VI Speedtronic Analog I/O Board

The GE DS200SIOBH1ABA, also cataloged as the DS200SIOB Analog Signal I/O Board, operates as a dedicated hardware component for analog signal interfacing within GE Mark VI Speedtronic turbine control networks. The board executes continuous physical-to-digital signal conversion, conditioning multiple high-density analog input and output channels for direct execution over the proprietary GE backplane.

Hardware Specifications

Parameter	Specification
Model	DS200SIOBH1ABA
Brand	GE (General Electric)
Origin	United States
Weight	0.4 kg
Operating Temp	0 to +60 deg C
Power Consumption	24 VDC via backplane bus
Analog Inputs	4-20 mA, 0-10 VDC
Analog Outputs	4-20 mA
Channel Density	High-density multi-channel configuration
Backplane Interface	GE Mark VI proprietary bus
Standards Compliance	CE, UL certified

GE System Integration & Backplane Dynamics

The DS200SIOBH1ABA communicates through the proprietary GE Speedtronic backplane bus, maintaining high backplane bus communication velocity and low operational latencies. Designed for multi-channel scaling, the board integrates ESD protection and overcurrent suppression across all input and output signal paths. Signal isolation and noise filtering circuits ensure analog measurement integrity across dynamic turbine control environments, matching strict firmware flash compatibility across simplex, duplex, and Triple Modular Redundant (TMR) control architectures.

Frequently Asked Questions

Q: Can the DS200SIOBH1ABA board be installed or replaced while the backplane is fully energized?

A: No, hot-swapping this card without powering down the Mark VI rack can damage sensitive onboard CMOS components and corrupt active backplane bus communication. Power must be isolated prior to insertion or removal.

Q: What is the power requirement for the DS200SIOBH1ABA, and how is it sourced?

A: The board draws power exclusively via 24 VDC rails supplied directly through the proprietary GE Mark VI backplane interface, eliminating the need for external wiring terminals to power the onboard logic.

Field Installation Guidelines

1. Ensure the Mark VI card rack is entirely de-energized and verify that electrostatic discharge (ESD) wrist straps are bonded to the local equipment earth ground before touching the board.
2. Inspect the PCB edge connectors for contamination or pin misalignment; slide the card along the guide rails into the assigned VME backplane slot until fully seated.
3. Tighten the retaining screws on the front panel to guarantee structural grounding stability and prevent vibration-induced connector disengagement.
4. Route all 4-20 mA and 0-10 VDC signal cables through shielded twisted pairs, grounding the cable shields at a single chassis terminal point to eliminate ground loops.

Specifications

• Brand: General Electric

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
