Description

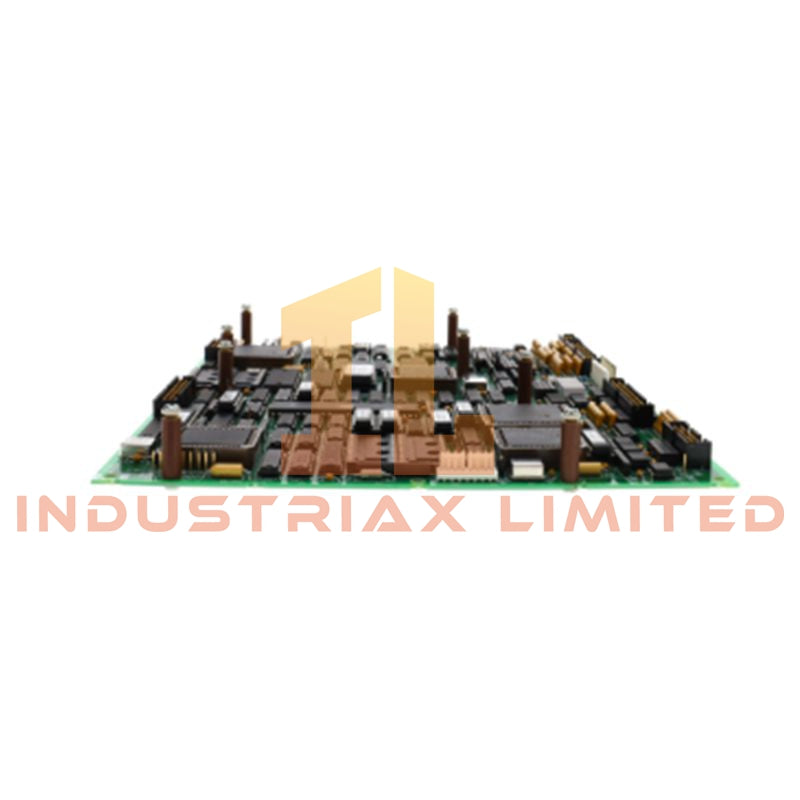

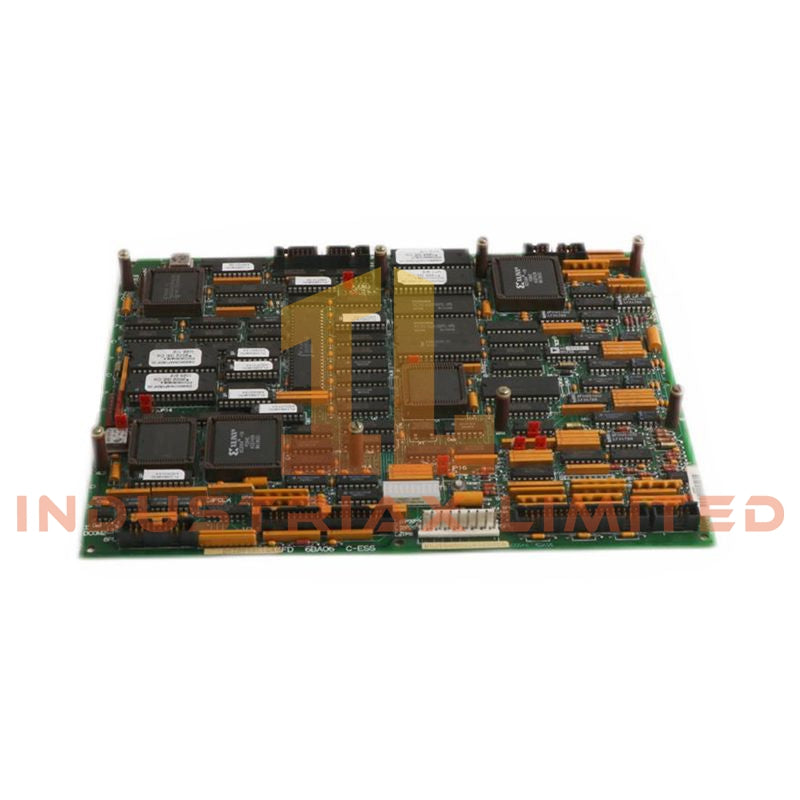

GE DS200SDCCG1AHD Drive Control Card

The GE DS200SDCCG1AHD, also cataloged as the DS200SDCC Drive Control Card, operates as a dedicated hardware component for turbine and drive regulation, feedback processing, and high-speed control execution within GE Mark V Speedtronic and EX2000 systems.

Hardware Specifications

Parameter	Specification
Model	DS200SDCCG1AHD
Brand	GE
Origin	United States
Weight	0.50 kg
Dimensions	25.4 cm x 17.8 cm x 3.8 cm
Operating Temp	0 to +50 deg C
Power Consumption	Not specified; powered from 5 VDC and 24 VDC backplane supplies
Product Type	Drive Control Card
System Platform	GE Mark V Speedtronic / EX2000
Processor Architecture	Triple 16-bit microprocessors with shared dual-port RAM
Control Loops	4 control loops: speed, torque, flux, current
Feedback Inputs	Encoder and resolver compatible
Analog I/O	4 analog inputs (4-20 mA, 0-10 V), 2 analog outputs
Digital I/O	8 inputs and 4 outputs, 24 VDC
Cycle Time	250 us typical
Field-to-Logic Isolation	1500 V
Connectors	5 front-panel headers J1-J5, 64-pin DIN backplane connector
Status Indicators	POWER, RUN, FAULT, COM LEDs
Storage Temp	-20 to +70 deg C
Humidity	20-95% RH, non-condensing
Energy Storage	330 uF filtering capacitance

GE Mark V Drive Control Processing and Communication Features

The DS200SDCCG1AHD integrates triple processor architecture for coordinated drive control execution, feedback calculation, and I/O handling. Shared dual-port RAM enables processor-to-processor data exchange within the control card architecture.

The board supports GE industrial control characteristics including backplane bus communication, deterministic control timing, and I/O density scaling for turbine and drive applications. Encoder and resolver feedback channels provide position and speed measurement data for closed-loop regulation.

The card supports firmware flash compatibility within the Mark V control platform, allowing hardware revision management across compatible control configurations. Its analog and digital interfaces provide direct connection between field signals and the controller processing environment.

Frequently Asked Questions

Q: What processor architecture is used in the DS200SDCCG1AHD?
A: The board uses three 16-bit microprocessors with shared dual-port RAM for control processing, I/O management, and calculation functions.

Q: What feedback devices can be connected to the DS200SDCCG1AHD?
A: The card supports encoder and resolver feedback inputs for speed, position, and drive regulation functions.

Q: How is the board connected to the Mark V system?
A: The DS200SDCCG1AHD connects through a 64-pin DIN backplane interface and front-panel headers J1-J5 for external signals.

Field Installation Guidelines

Install the DS200SDCCG1AHD in the designated GE Mark V rack position with system power removed before board replacement or inspection.

Verify backplane connector alignment, front-panel header connections, and board seating before applying control power. Maintain separation between feedback signal wiring and high-current drive conductors to reduce electromagnetic interference.

Connect cable shields according to the cabinet grounding design. Confirm analog input scaling, digital I/O assignments, and controller configuration parameters before returning the drive system to operation.

Specifications

• Brand: General Electric

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
