Description
Product Overview

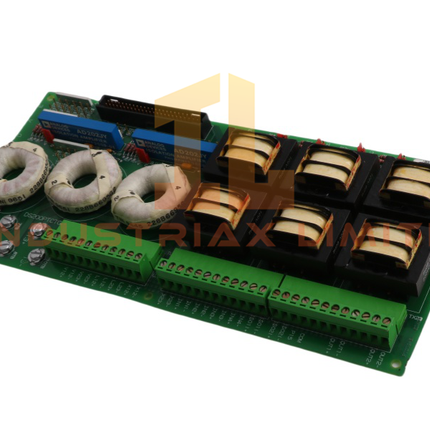

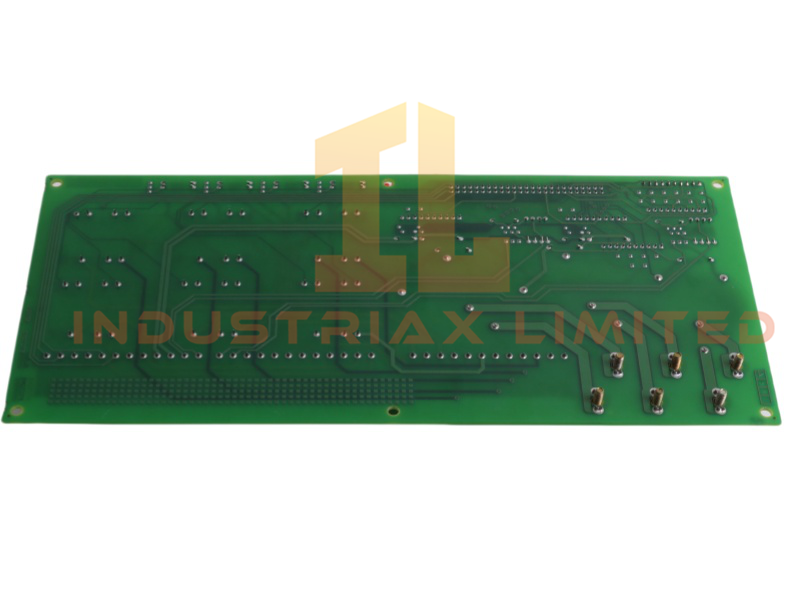

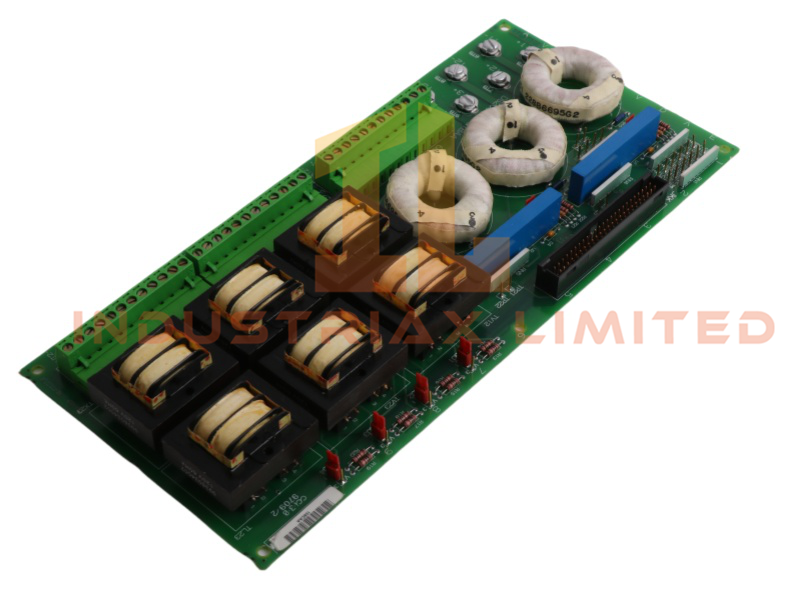

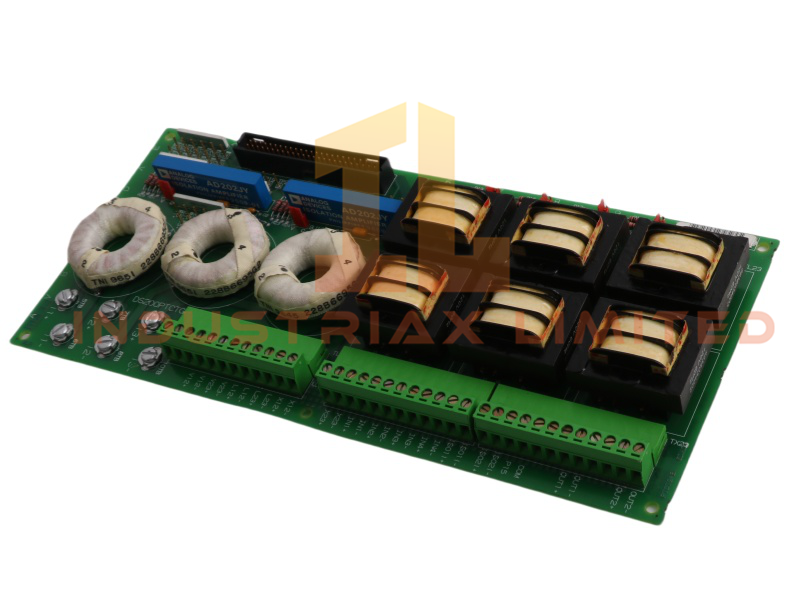

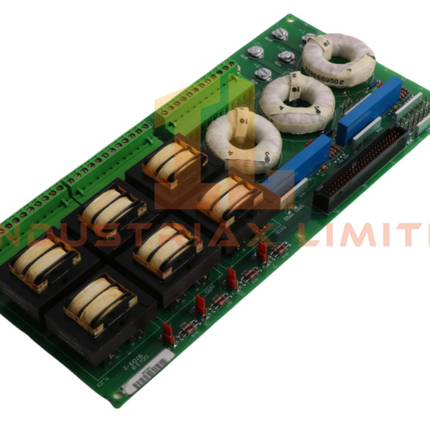

The GE DS200PLIBG2ACA Phase Logic Interface Board from the Mark V Series provides robust turbine control functionality. Designed for integration with EX2000 digital regulator systems, it supports both three-phase and single-phase configurations, ensuring reliable performance in gas and steam turbine applications.
Technical Specifications
| Parameter |
Value |
| Model Number |
DS200PLIBG2ACA |
| Manufacturer |
GE |
| Module Type |
Phase Logic Interface Board |
| Dimensions |
28.6 × 7 × 3.2 cm |
| Weight |
0.32 kg |
| System |
DCS |
| Communication Service |
Ethernet router |
| Voltage Range |
0–150 V AC |
| Frequency Range |
45–65 Hz |
| Accuracy |
±1% full-scale |
| Isolation Protection |
2500 V AC |
| Power Supply |
+5 V DC |
| Components |
ICs, resistors, capacitors, LEDs, diodes |
| Mounting |
Factory-drilled insulated holes |
| Revisions |
Three lifecycle updates |
| HS Code |
8537101190 |
| Origin |
USA |
| Condition |
Brand New |
| MOQ |
1 |
Functional Highlights
The DS200PLIBG2ACA features multiple vertical pin connectors and integrated circuits for durable performance. Its LEDs provide clear operational and error status, while isolation protection ensures electrical safety in mission-critical turbine environments.
Design and Performance
GE engineered the DS200PLIBG2ACA with compact dimensions and lightweight construction for easy installation. Its fast response time under two cycles and ±1% accuracy guarantee precise control, while compatibility with servo valves enhances system versatility.
Applications and Compatibility
The DS200PLIBG2ACA Phase Logic Interface Board suits legacy Mark V Speedtronic turbine systems. It integrates seamlessly with EX2000 regulators and supports both brushless excitation and servo valve control, making it essential for maintaining and upgrading legacy turbine infrastructures.
