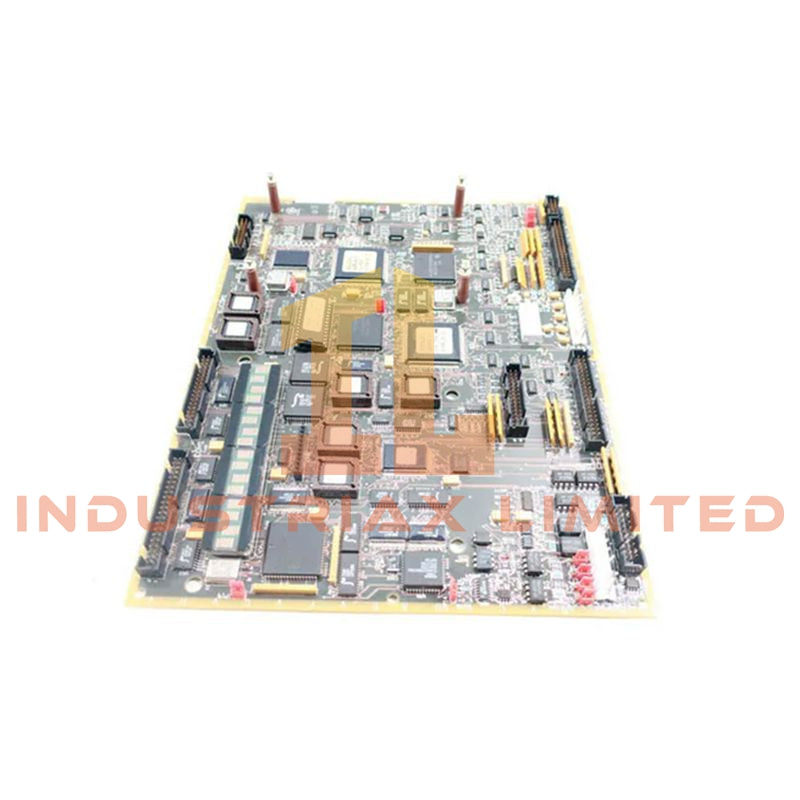

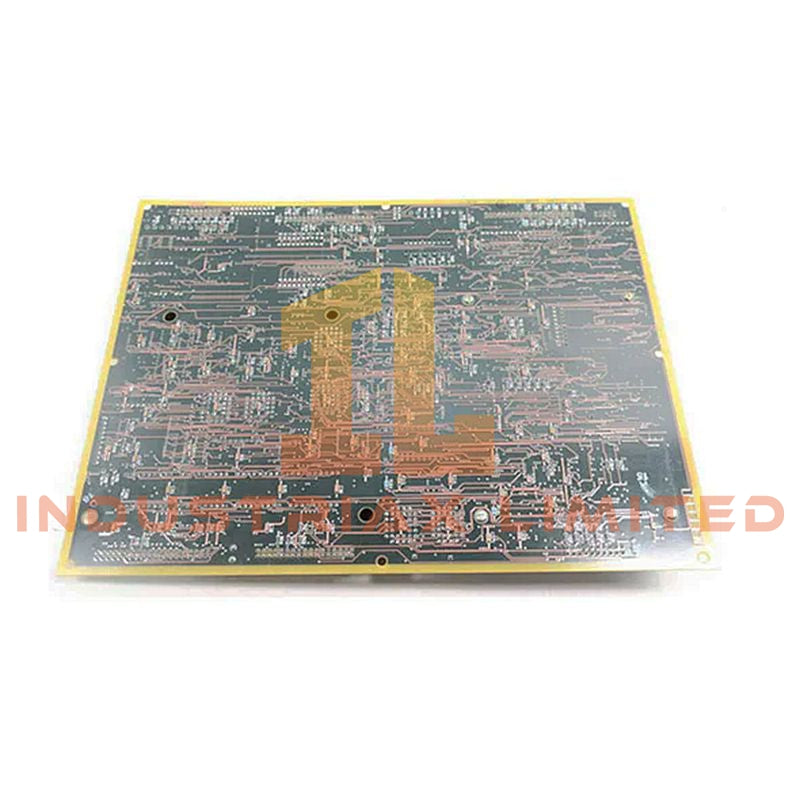

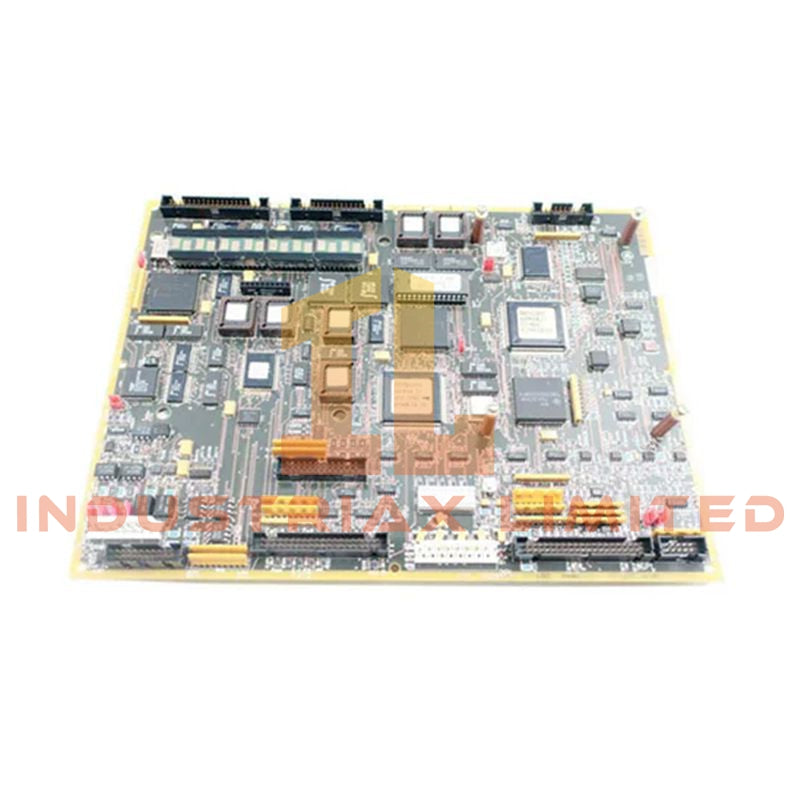

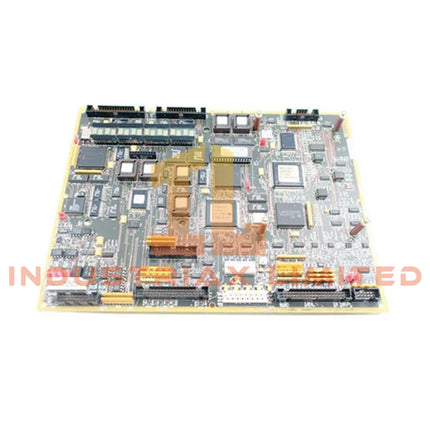

GE DS200PCCRG1ACB Power Connect Card

Configured for regulated power distribution and signal interfacing in the GE Mark V Speedtronic turbine control system, the GE DS200PCCRG1ACB (DS200PCCRG1ACB Power Connect Card) provides direct physical/electrical execution for exciter and drive subsystem power routing.

Hardware Specifications

Parameter	Specification
Model	DS200PCCRG1ACB
Brand	GE
Origin	United States
Weight	0.4 kg
Operating Temp	0 deg C to +55 deg C
Product Type	Power Connect Cards
Series	Mark V Speedtronic turbine control system
Power Supply	+5 VDC, +/-15 VDC via backplane
Connectors	Rack backplane edge connectors and multi-pin I/O connectors
Isolation Components	Transformers for voltage isolation
Protection Components	Fuses with LED status indicators, filtering capacitors and resistors
Diagnostics	LED indicators, RESET button, test points
PCB Coating	Conformal coating

Industrial Control Power Distribution and Signal Interface

The DS200PCCRG1ACB provides power routing and signal interface functions between Mark V controller assemblies and turbine exciter or drive subsystems. The board incorporates transformer-based isolation, filtering components, and fuse monitoring circuits for control-level electrical distribution.

Within the GE industrial control architecture, the Power Connect Card supports backplane bus communication paths and maintains defined electrical interfaces between control boards. The board design supports firmware compatibility within the Mark V hardware platform through the associated controller configuration.

Frequently Asked Questions

Q: What power inputs are provided to the DS200PCCRG1ACB?
A: The card receives +5 VDC and +/-15 VDC power through the Mark V rack backplane interface.

Q: What protection components are installed on the Power Connect Card?
A: The board includes fuses with LED indicators, transformers for isolation, and passive filtering components for electrical conditioning.

Q: What diagnostic functions are available for maintenance checks?
A: The card provides LED status indication, a RESET button, and test points for electrical troubleshooting.

Field Installation Guidelines

Install the DS200PCCRG1ACB in the assigned Mark V rack position and verify correct edge connector engagement before energizing the system. Remove rack power before board replacement or inspection.

Maintain proper cabinet grounding and terminate cable shields according to the control system wiring practice. Route signal cables separately from high-current conductors to minimize electrical interference. Check connector condition, fuse status indicators, and mounting alignment during installation verification.

Confirm board compatibility with the existing Mark V controller configuration before applying system power.

Specifications

• Brand: General Electric

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
