Description

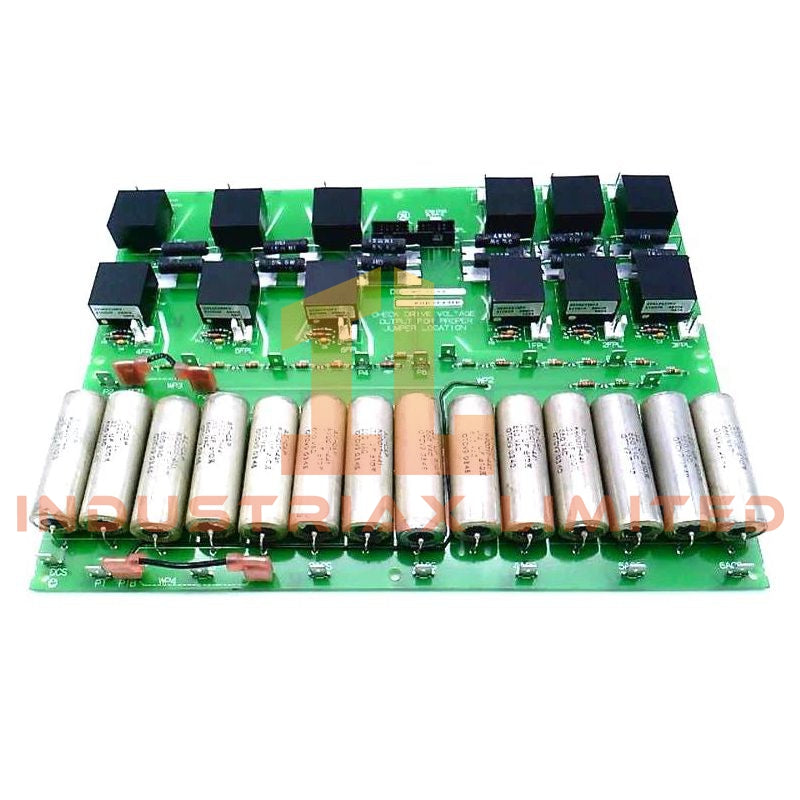

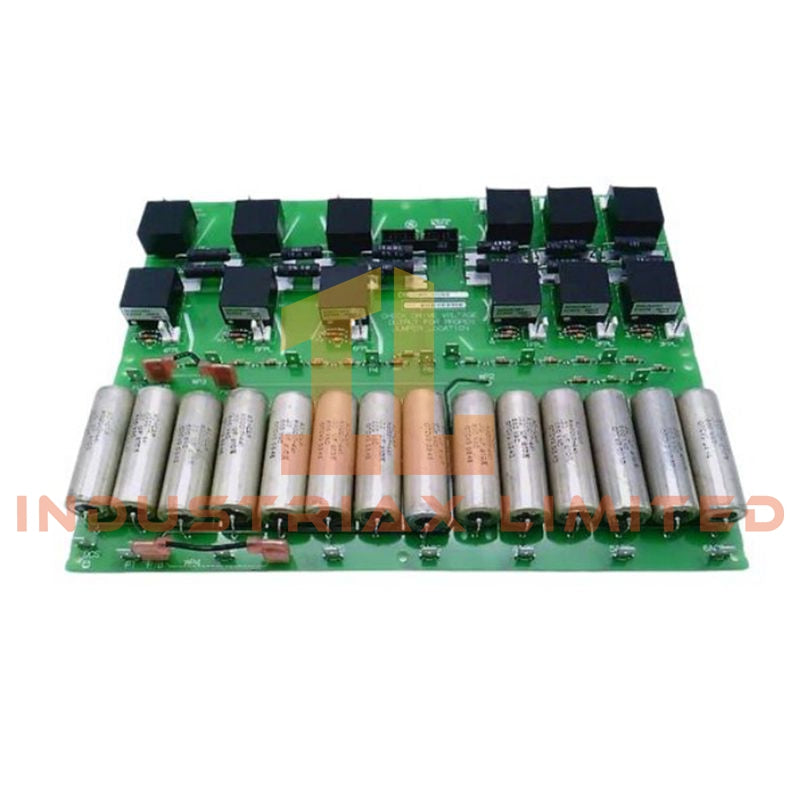

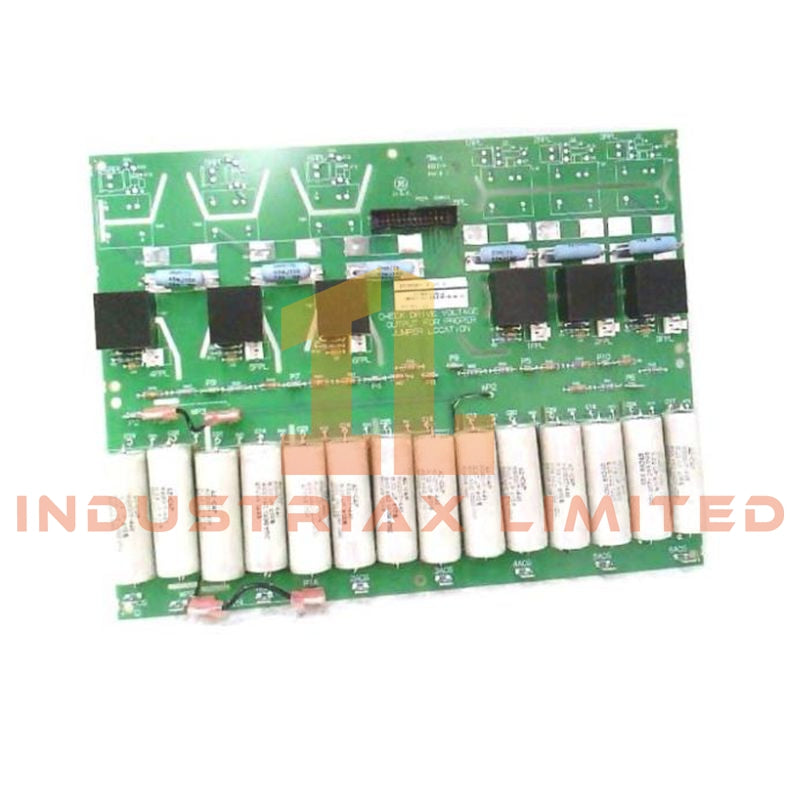

GE DS200PCCAG6A Mark V Power Connect Card

Configured for power routing and auxiliary signal distribution in the GE Mark V Speedtronic control system, the GE DS200PCCAG6A (DS200PCCA Power Connect Card) provides direct electrical interconnection between the control processor, excitation hardware, and associated power interface modules. The board incorporates terminal connections, ribbon cable interfaces, and diagnostic test points for cabinet-level integration.

Hardware Specifications

Parameter	Specification
Model	DS200PCCAG6A
Brand	GE
Origin	United States
Product Series	Mark V Speedtronic
Product Type	Power Connect Card
Board Function	Power distribution and interface board
Input Voltage	24 VDC
Output Voltage	12 VDC
Power Rating	2000 W
Efficiency	90%
Input / Output	Multi-pin ribbon cable headers, screw terminal blocks, onboard test points
Control Interface	I2C, Digital PWM
Protection	Overcurrent, Overvoltage
Mounting	Cabinet mounting, nylon standoffs; DIN rail mounting listed in supplied documentation
Operating Temp	-20 deg C to 70 deg C
Storage Temp	-40 deg C to 85 deg C
Relative Humidity	5% to 95% non-condensing
Dimensions	160 x 100 x 50 mm
Weight	0.70 lb
Output Ripple	100 mV peak-to-peak
Additional Features	On-board RAM, multi input/output connections

Firmware Flash Compatibility

Within the GE Mark V platform, the DS200PCCAG6A functions as a hardware interface board rather than a firmware execution processor. During maintenance, firmware revisions of associated control processors and excitation modules should remain compatible with the installed Mark V hardware configuration. Hardware replacement should be performed using the specified board revision to maintain connector layout and interface consistency. Power should be removed before installing or removing the board to prevent unintended backplane or interface faults.

Frequently Asked Questions

Q: Does the DS200PCCAG6A support hot-swapping?
A: The supplied documentation does not specify hot-swap capability. Standard maintenance practice is to remove cabinet power before installing or removing the board.

Q: What external connections are available on the board?
A: The board provides multi-pin ribbon cable headers, screw terminal blocks, and diagnostic test points for power distribution and interface connections.

Q: Is the board responsible for system control logic?
A: No. Its primary function is routing auxiliary power and interface signals between the Mark V control processor, excitation hardware, and related modules.

Field Installation Guidelines

• Verify the DS200PCCAG6A part number and hardware revision before installation.
• Isolate cabinet power and confirm stored energy has been discharged prior to handling the board.
• Install the board using the specified mounting hardware to avoid PCB stress.
• Route ribbon cables separately from high-current conductors where practical to reduce electrical noise coupling.
• Tighten terminal wiring according to the cabinet maintenance specification and verify conductor identification before energizing.
• Inspect connectors for bent contacts or contamination before reconnecting field wiring.
• Perform continuity and functional checks after installation using the designated diagnostic test points.

Specifications

• Brand: General Electric

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
