Description

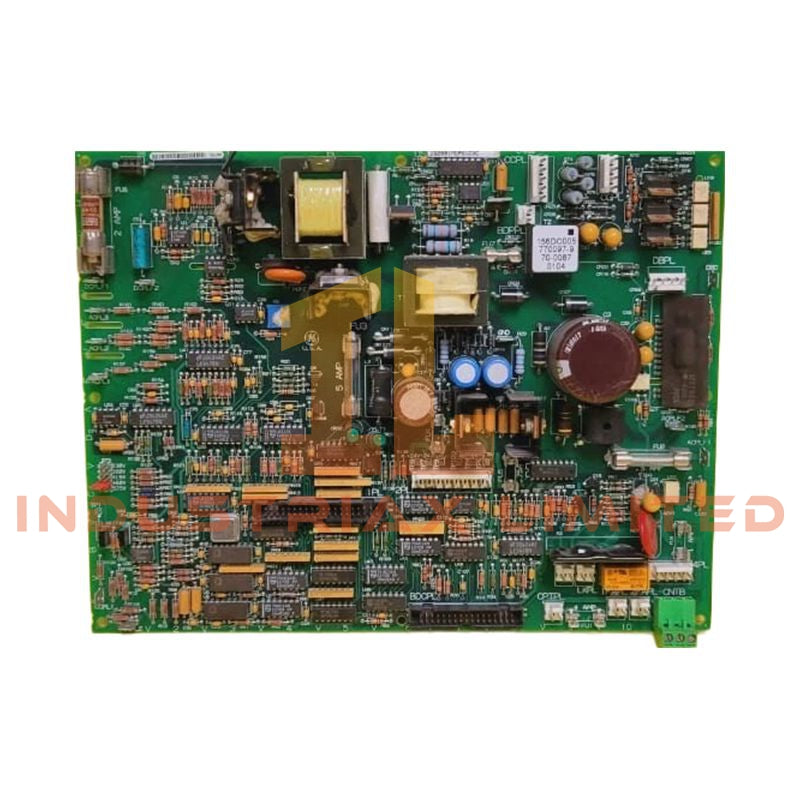

GE DS200IMCPG1CGC I/O Motor Control Processor Board

The GE DS200IMCPG1CGC, also cataloged as the DS200IMCP I/O Motor Control Processor Board, operates as a dedicated hardware component for motor control execution and I/O signal processing within the GE Mark V Speedtronic turbine control system. It processes drive-related control logic and communicates with turbine exciter and subsystem boards.

Hardware Specifications

Parameter	Specification
Model	DS200IMCPG1CGC
Brand	GE
Origin	USA
Weight	0.7 kg
Operating Temp	0 deg C to +55 deg C
Power Consumption	Not specified; supplied through Mark V backplane (+5 VDC, +/-15 VDC)
Product Type	I/O Motor Control Processor Boards
Series	Mark V Speedtronic turbine control system
Functional Acronym	IMCP
Functional Description	IGBT Power Supply Board
Processor Configuration	Motor Control Processor (MCP) and Co-Motor Processor (CMP)
Memory	PROM firmware storage and EEPROM configuration storage
PCB Coating	Normal Coating
Functional Revision	C / G
Artwork Revision	C

Firmware and Deterministic Control Processing

The DS200IMCPG1CGC integrates processor resources for execution of motor control algorithms, I/O signal handling, and communication exchange with Mark V controller modules. The board uses PROM-based firmware and EEPROM parameter storage to maintain control configuration data.

Within GE industrial control architectures, processor-to-backplane communication timing and firmware compatibility are defined by the installed Mark V configuration. The board supports I/O density scaling through dedicated motor processing functions and manages analog/digital signal interaction between drive-related subsystems.

Frequently Asked Questions

Q: What processor functions are provided by the DS200IMCPG1CGC?
A: The board contains a Motor Control Processor (MCP) for motor control logic execution and a Co-Motor Processor (CMP) for additional processing support.

Q: How is the DS200IMCPG1CGC connected to the Mark V system?
A: The board connects through edge connectors to the Mark V rack backplane and uses multi-pin I/O connectors for subsystem signal interfaces.

Q: What diagnostic functions are available on this board?
A: Diagnostic functions include LED status indicators, a RESET button, and onboard test points for troubleshooting processor and communication conditions.

Field Installation Guidelines

Install the DS200IMCPG1CGC with system power removed and confirm the correct Mark V rack slot assignment before insertion. Inspect the edge connector and backplane interface for contamination or mechanical damage.

Maintain proper separation between control signal wiring and high-voltage conductors. Use shielded cables where required by the system design and terminate cable shields according to the cabinet grounding scheme.

After installation, verify processor status indicators, backplane communication, and I/O signal operation through the Mark V diagnostic interface before returning the control system to service.

Specifications

• Brand: General Electric

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
