Overview

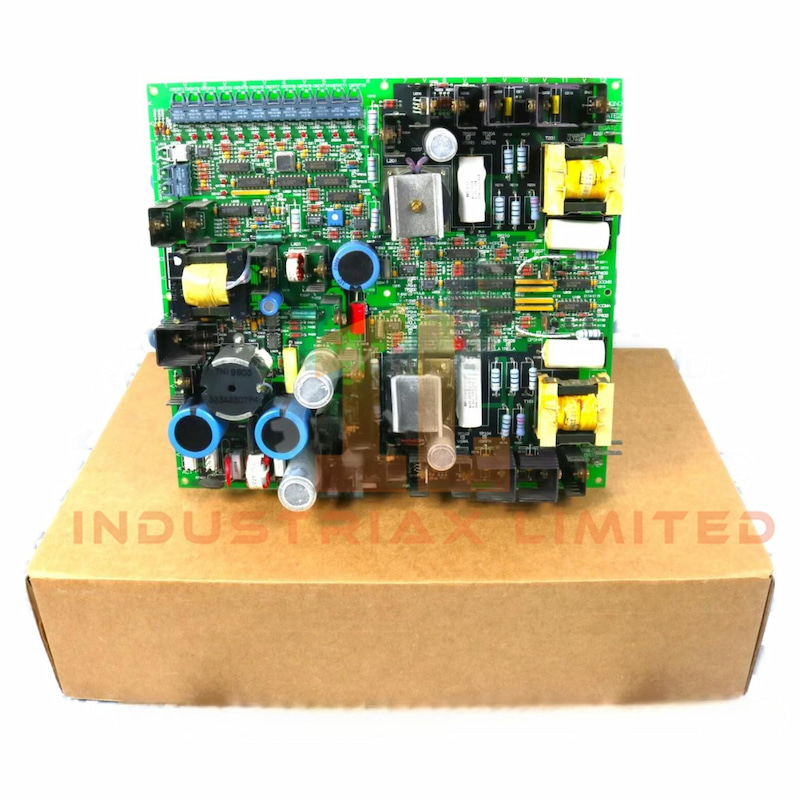

The DS200FGPAG1A Gate Pulse Amplifier Board from GE plays a critical role in Load Commutated Inverter (LCI) systems. It integrates gate driving, SCR status monitoring, and power conversion into a compact, high-performance module.

Technical Specifications

Specification	Detail
Manufacturer	GE
Part Number	DS200FGPAG1A
Voltage Output	24 Vdc
Current Output	1A
Input Voltage	120 Vrms ±20%
Dimensions	240 mm × 160 mm × 30 mm
Weight	0.5 kg
Gate Driver Circuits	2 per board
SCR Monitoring	Up to 12 DS200FHVA units
Interface Type	Fiber optic and optical serial

Key Features

• Supplies gate power for one SCR bridge phase using dual driver circuits.

• Interfaces with up to 12 DS200FHVA cards to monitor SCR cell voltages.

• Converts 120 Vrms input into stable DC control voltages for gating and monitoring.

• Ensures simultaneous SCR gating through series-connected isolation CT primaries.

• Compact and lightweight design simplifies installation and maintenance.

Specifications

• Dimensions: 240 mm × 160 mm × 30 mm
• Brand: GE

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
