Description

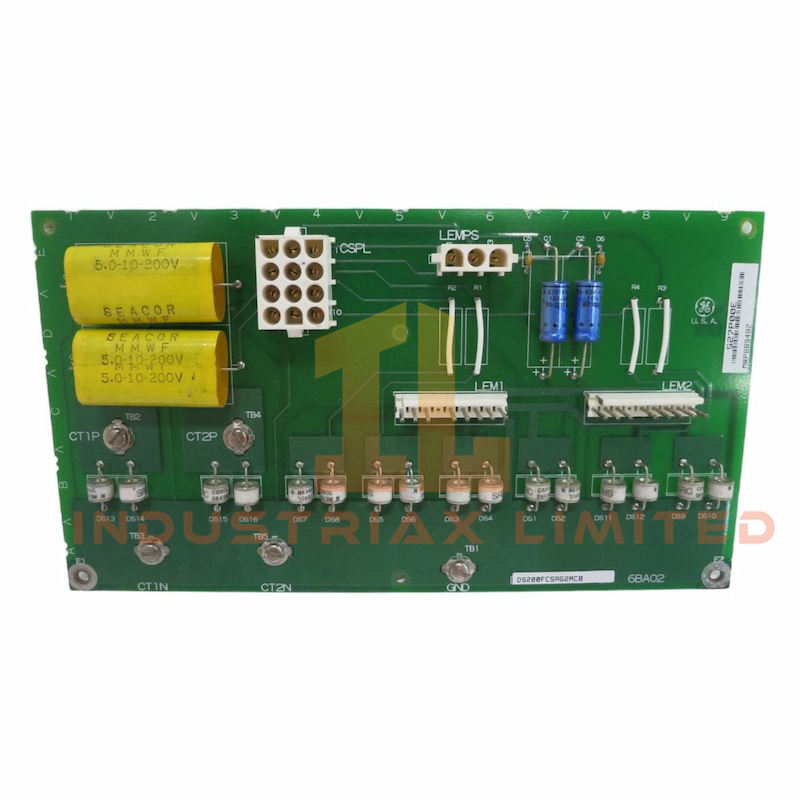

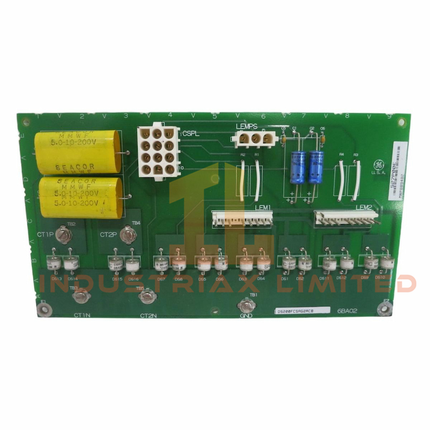

The GE DS200FCSAG2A Current Sensing Feedback Board is a specialized module designed for use in Load Commutator Inverter (LCI) control systems, particularly within Static Starter Power Conversion Cabinets. Operating in tandem with the Control Power Supply (CPS), it receives multiple voltage levels—5 V, 12 V, 15 V, and 24 V—to power its internal circuits and the associated VME card rack. The board measures electrical current using components such as shunt resistors or current transformers, conditions the signal, and provides feedback to the control system for real-time monitoring and protection.
Technical Specifications
| Parameter |
Specification |
| Manufacturer |
GE |
| Series |
Load Commutator Inverter Control System |
| Part Number |
DS200FCSAG2A |
| Description |
Current Sensing Feedback Board |
| Input Voltage |
24 Vdc |
| CPS Voltages |
5 V, 12 V, 15 V, 24 V |
| Current |
1 A |
| Dimensions |
240 mm × 160 mm × 30 mm |
| Weight |
0.3 kg |
| Installation |
Power Conversion Cabinet (Static Starter) |
| Signal Components |
Shunt resistors, current transformers |
| Output Interface |
VME rack feedback path |
Key Features
-
Accepts multiple CPS voltage levels for flexible power distribution
-
Measures and conditions current signals for feedback and diagnostics
-
Interfaces with VME card rack for control system integration
-
Compact 240 × 160 × 30 mm footprint for cabinet installation
-
Lightweight 0.3 kg board simplifies handling and mounting
-
Ideal for Static Starter systems requiring precise current feedback
