Description

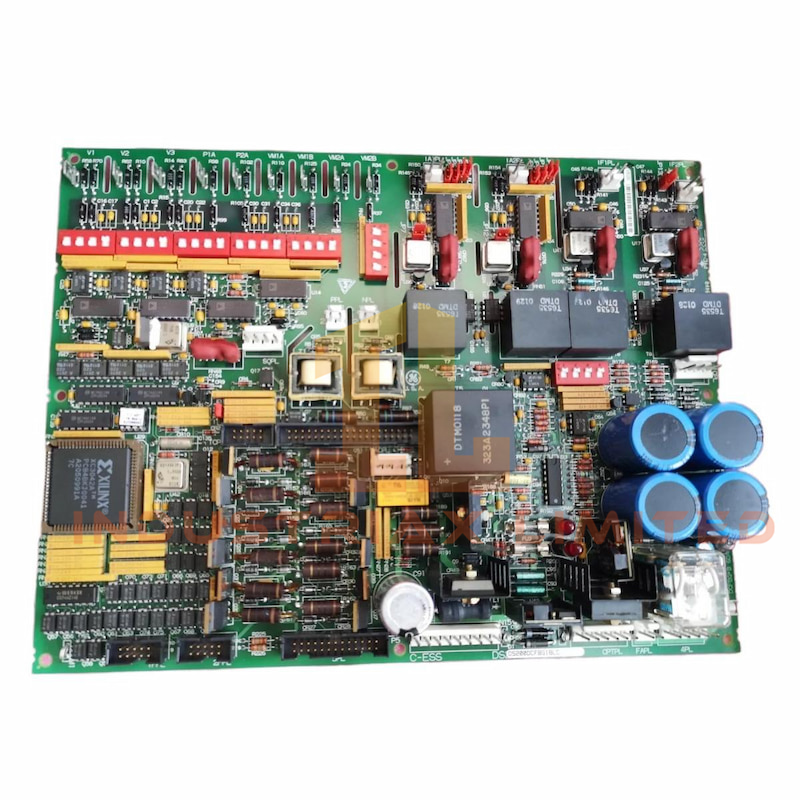

The GE DS200DCFBG2B DC Feedback Power Supply Board is a key component in the Mark V Control System, designed to deliver regulated and isolated DC voltages for drive control and armature current feedback circuits. It receives 38 V ac from the CPT and converts it into multiple DC outputs including ±24 V, ±15 V, and +5 V, each tailored for specific control and feedback functions. Integrated fuse protection and LED indicators ensure safe operation and simplified diagnostics.
Technical Specifications
| Parameter |
Specification |
| Manufacturer |
GE |
| Series |
Mark V Control System |
| Part Number |
DS200DCFBG2B |
| Description |
DC Feedback Power Supply Board |
| Input Voltage |
24 Vdc |
| Input AC |
38 V ac ±10% (from CPT) |
| Output Voltages |
±24 V dc, ±15 V dc, +5 V dc |
| Output Current |
+24 V @ 3 A, –24 V @ 1 A, ±15 V @ 0.8 A, +5 V @ 4 A |
| External Load |
±15 V dc @ 0.25 A available |
| Dimensions |
330 mm × 178 mm × 35 mm |
| Weight |
1 kg |
| Protection |
Fuses FU1, FU2, FU3 with LED/neon indicators |
| Regulation Monitoring |
/PSEN signal for +5 V regulation status |
| Isolation |
Isolated +5 V and ±15 V for feedback circuits |
Key Features
-
Converts 38 V ac input into multiple regulated DC outputs
-
Provides isolated power for armature current feedback systems
-
+5 V output includes regulation monitoring via /PSEN signal
-
Integrated fuse protection with LED and neon indicators
-
Compact 330 × 178 × 35 mm board fits standard control enclosures
-
Supports SDCC/LDCC microprocessor reset via regulation signal
-
Ideal for generator, line signal, and servo valve power conditioning
