Description

Product Overview

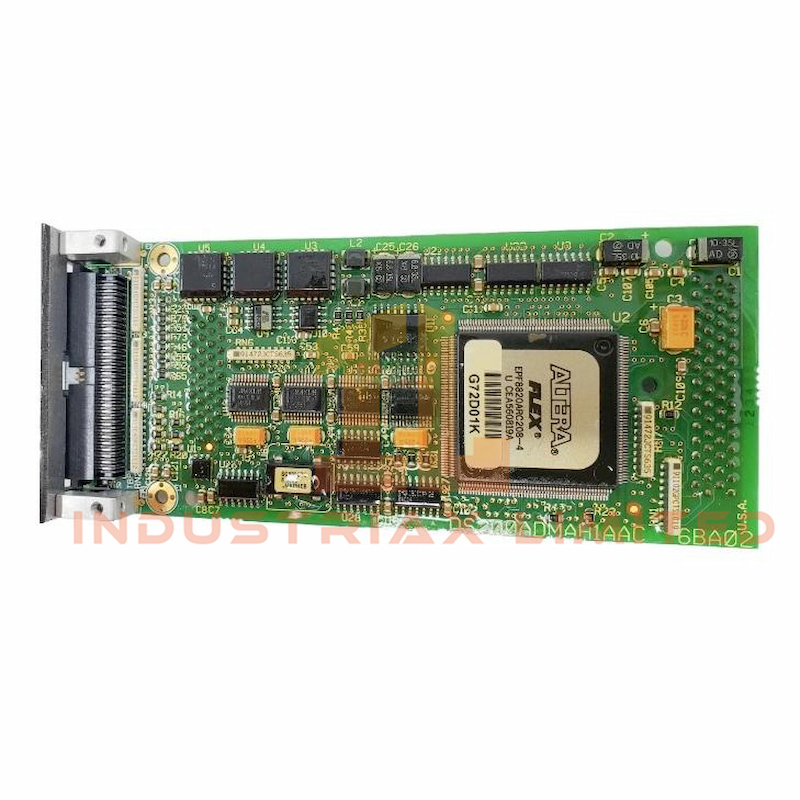

The DS200ADMAH1A Analog To Digital Module Daughterboard from GE’s Mark V Series provides buffered, filtered analog and digital I/O interfacing for the DS200DSPC host board. It connects to the high-voltage terminal board DS200DDTB using high-density cables and connectors.

This auxiliary board occupies one of four XA_/XB_ connector pairs on the DSPC and secures via three standoffs. It includes a static RAM-based EPLD for configurable logic, initialized during system power-up or reset.

Technical Specifications

Specification	Details
Manufacturer	GE
Series	Mark V
Model Number	DS200ADMAH1A
Voltage Input	24 Vdc
Current Draw	100 mA
Dimensions	32 cm × 12 cm × 3 cm
Weight	0.3 kg
Host Interface	DSPC board via XA_/XB_ connectors
External Connector	DS200DDTB terminal board
Logic Device	Static RAM-based EPLD
LED Indicators	IMOK (green), FAIL (red)
Mounting Method	3 standoffs with screws

Features & Performance

The DS200ADMAH1A board supports bidirectional analog signal conversion and discrete digital I/O conditioning. Its onboard LEDs provide immediate visual status: green for operational health and red for fault indication.

The EPLD logic enables flexible interfacing, tailored to project-specific configurations. The board’s compact form factor and secure mounting ensure reliable performance in industrial control environments.

Specifications

• Dimensions: 32 cm × 12 cm × 3 cm
• Brand: GE

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
