Description

Product Overview

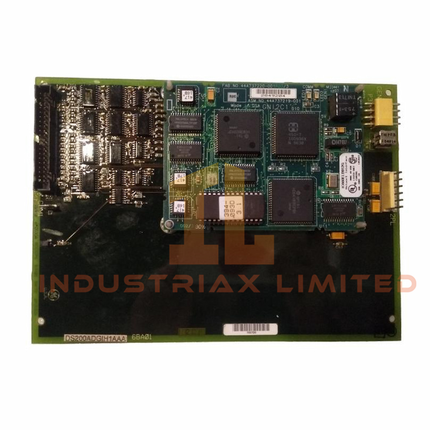

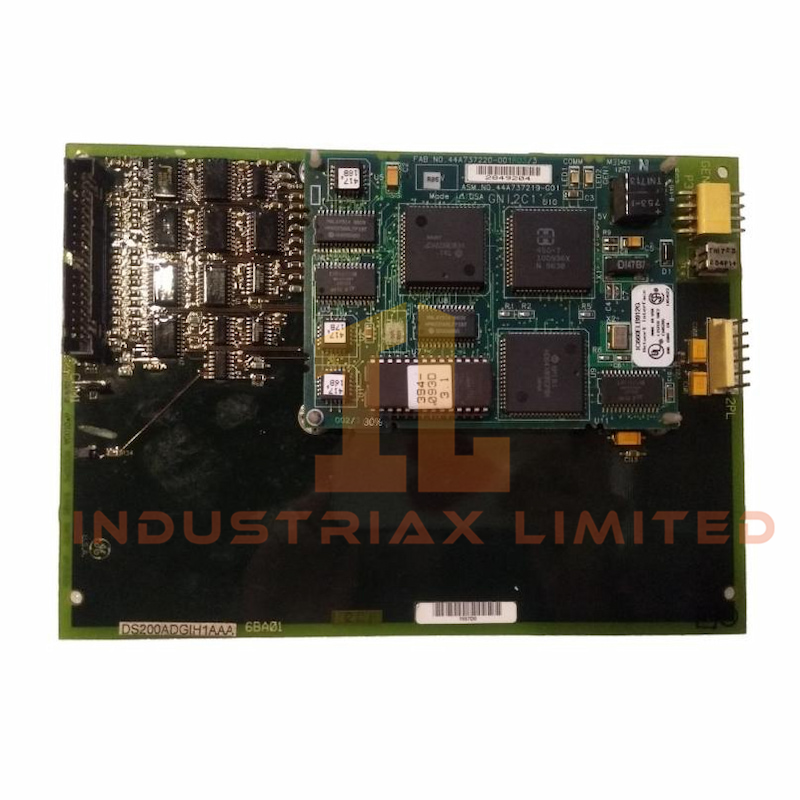

The DS200ADGIH1A Auxiliary Genius Interface Board from GE’s Mark V System enables drive integration with Genius® I/O networks. It connects through the IC660ELB912 μGENI Network Interface Board and allows the drive to function as a Genius I/O drop. Communication is managed by the drive’s control and comm boards.

This board is designed for use with the DS200LDCC drive control board and is not compatible with DS200SDCC. It does not include the μGENI board and must be paired with it for full functionality.

Technical Specifications

Specification	Details
Manufacturer	GE
Series	Mark V System
Model Number	DS200ADGIH1A
Voltage Input	24 Vdc
Current Draw	0.5 A
Dimensions	18 cm × 16 cm × 3 cm
Weight	0.2 kg
Interface Type	Genius® I/O via μGENI board
Required Controller Board	DS200LDCC
Incompatible Controller	DS200SDCC
Mounting Location	Drive enclosure

Features & Performance

The DS200ADGIH1A board provides a reliable interface for Genius I/O communication. It uses high-density connectors and cables to link with the μGENI board. The board supports buffered data exchange and operates within standard 24 Vdc environments.

Its compact design and low power consumption make it suitable for embedded drive control systems. The board does not process communication directly but enables the drive to participate in Genius network operations.

Specifications

• Dimensions: 18 cm × 16 cm × 3 cm
• Brand: GE

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
