Description
Overview

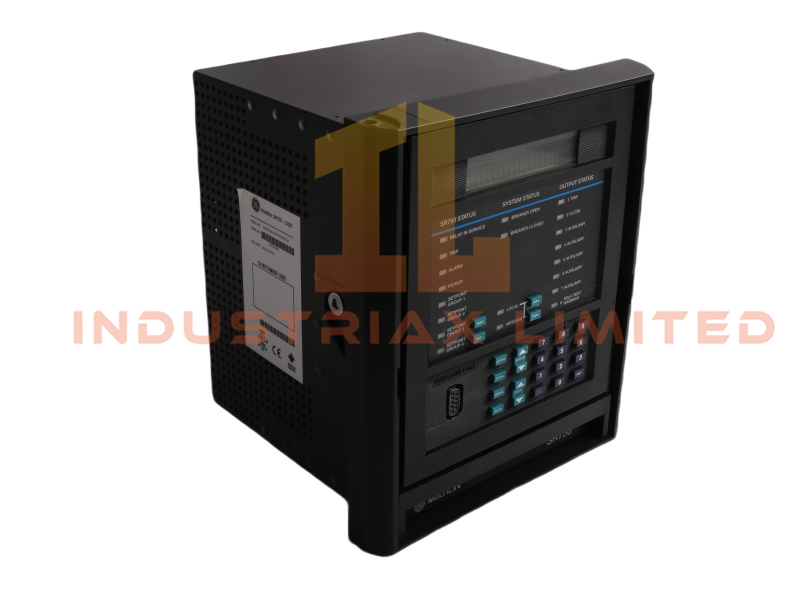

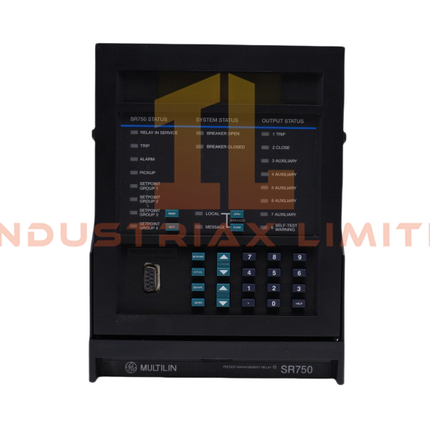

The GE 750-P5-G5-HI-A20-R Feeder Management Relay belongs to the Multilin series and provides advanced protection and monitoring for distribution systems. Measuring 20.8x22x24.6cm and weighing 7.6kg, this robust relay integrates seamlessly into DCS environments. Manufactured in the USA, it supports Ethernet router communication and ensures reliable performance in demanding industrial applications.
Engineers designed the 750-P5-G5-HI-A20-R with a dual-processor architecture. A Motorola 68332 32-bit microprocessor manages analog signals, logic inputs, and control outputs, while a Grid Connect DSTni-LX Turbo 186 16-bit processor handles user inputs, communication, and display functions. This configuration guarantees precise data processing and efficient system management.
Technical Specifications
| Parameter |
Value |
| Model Number |
750-P5-G5-HI-A20-R |
| Module Type |
Feeder Management Relay |
| Manufacturer |
GE |
| Product Range |
Multilin |
| Condition |
Brand New |
| Lead Time |
In Stock |
| Weight |
7.6 kg |
| Dimension |
20.8 x 22 x 24.6 cm |
| HS Code |
8537101190 |
| MOQ |
1 |
| Origin |
USA |
| System |
DCS |
| Status |
Active |
| Communication Service |
Ethernet router |
Functional Description
The GE 750-P5-G5-HI-A20-R offers comprehensive monitoring features, including trip counters for breaker operations, precise metering of voltage, current, and frequency, and oscillography functions that record AC input data. These capabilities simplify troubleshooting and maintenance, reducing downtime and improving system reliability.
Its design supports installation on a standard 19-inch panel, making it versatile for different environments. The relay’s robust construction and advanced functionalities ensure cost-effective performance in modern power distribution systems.
Applications and Compatibility
The 750-P5-G5-HI-A20-R Feeder Management Relay suits industries requiring dependable DCS integration, including power generation, manufacturing, and distribution networks. It works seamlessly with GE Multilin systems, offering compatibility for upgrades and replacements. Professionals rely on the 750-P5-G5-HI-A20-R for efficient monitoring, protection, and control, making it a trusted solution for industrial automation and energy management.
