Description
Product Overview

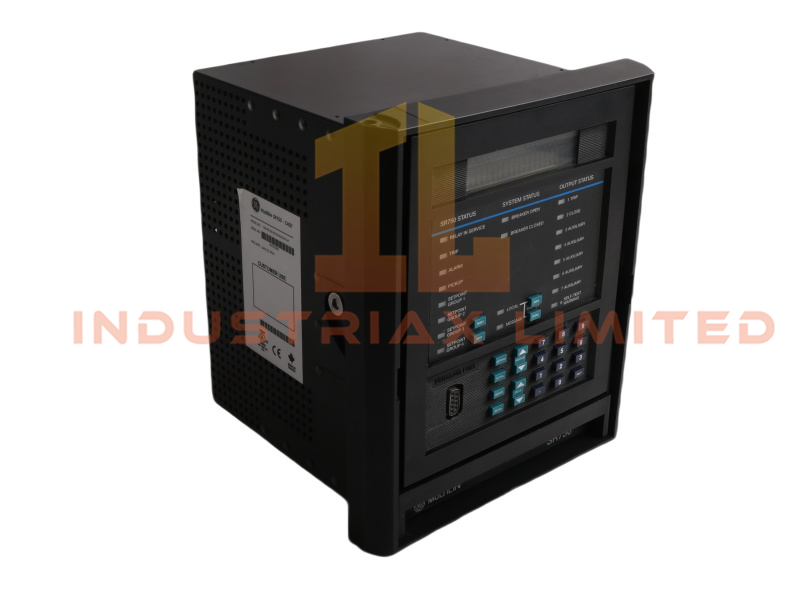

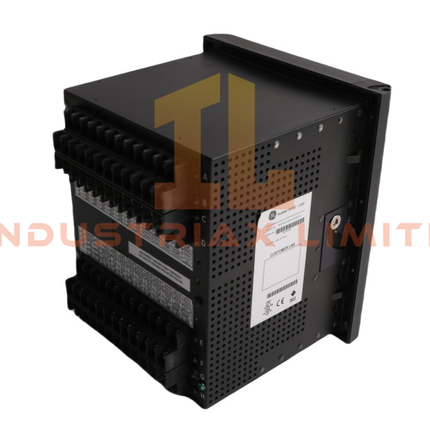

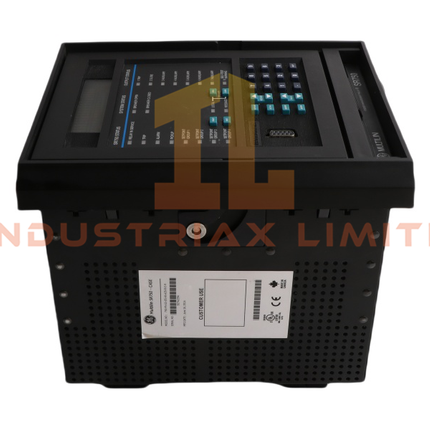

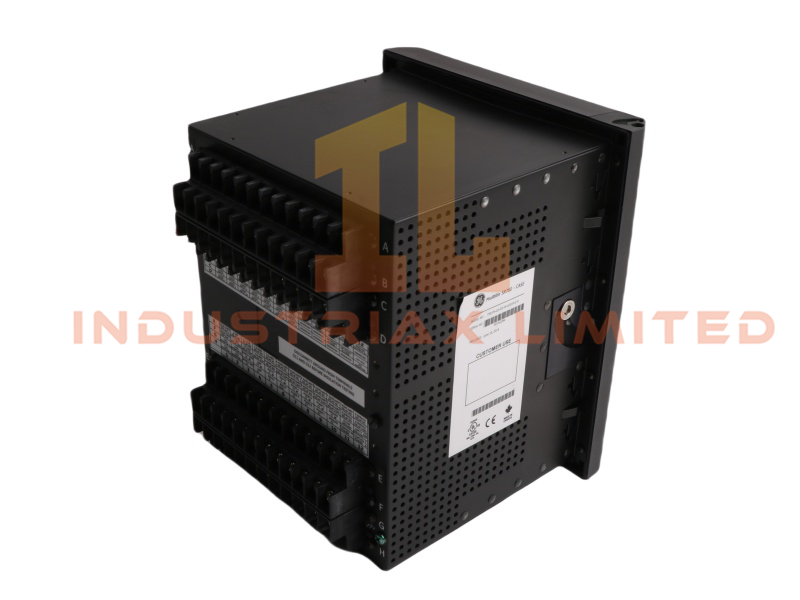

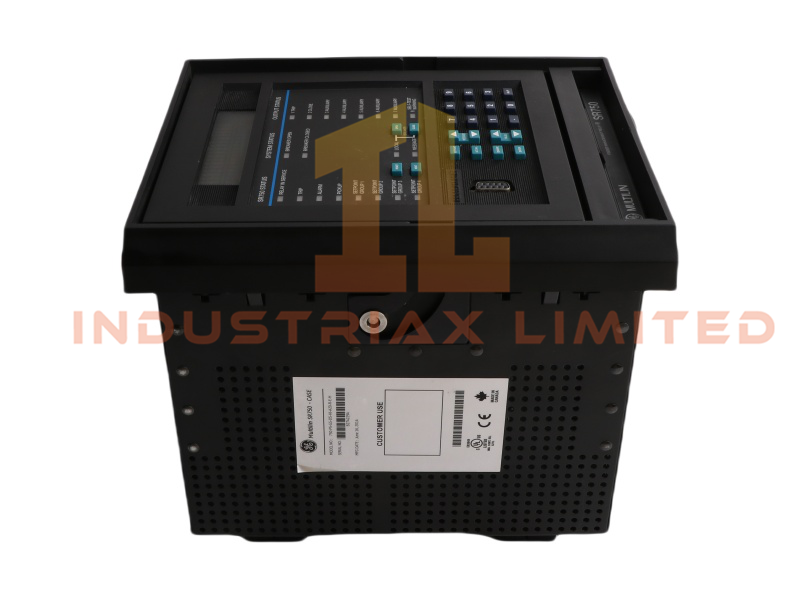

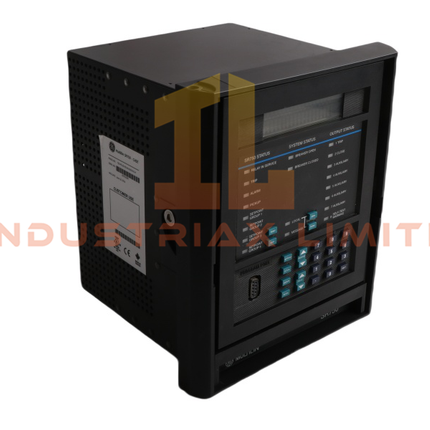

The 750-P5-G5-D5-HI-A20-R-E-H Feeder Management Relay from General Electric belongs to the Multilin 750/760 series. This robust device weighs 7.6 kg and measures 20.8 x 22 x 24.6 cm, making it suitable for medium and high-voltage feeder protection. Engineers value its wide input voltage range, precise current monitoring, and durable construction for demanding industrial environments.
Technical Specifications
| Parameter |
Value |
| Model Number |
750-P5-G5-D5-HI-A20-R-E-H |
| Module Type |
Feeder Management Relay |
| Manufacturer |
GE |
| Product Range |
Multilin 750/760 |
| Condition |
Brand New |
| Weight |
7.6 kg |
| Dimensions |
20.8 x 22 x 24.6 cm |
| HS Code |
8537101190 |
| Minimum Order Quantity |
1 |
| Origin |
USA |
| System |
DCS |
| Status |
Active |
| Communication Service |
Ethernet router |
| Input Voltage Range |
88–300 VDC or 70–265 VAC, 48–62 Hz |
| Current Inputs |
5 A phase, 5 A zero sequence |
| Analog Outputs |
Eight 4–20 mA |
| Mounting Style |
Panel-mounted |
| Interface |
User-friendly configuration |
Functional Description
The 750-P5-G5-D5-HI-A20-R-E-H relay enhances feeder protection by combining overcurrent, ground fault, and feeder condition monitoring. Engineers benefit from its 5 A phase and zero-sequence current inputs, which ensure precise detection of current flow and ground faults. Eight analog outputs simplify integration with external monitoring systems, while the wide input voltage range guarantees compatibility across diverse power environments.
Its rugged construction withstands harsh industrial conditions, and the panel-mounted design allows straightforward installation. The user-friendly interface reduces configuration time, improving overall system reliability and operational efficiency.
Applications and Compatibility
The 750-P5-G5-D5-HI-A20-R-E-H Feeder Management Relay suits industrial plants, substations, and utility networks requiring advanced feeder protection. It integrates seamlessly with GE Multilin 750/760 series systems, ensuring compatibility across diverse environments. Engineers deploy it in power generation, heavy industry, and automation networks where reliable monitoring and control are essential.
